Product Specifications
| Prod Model: |
Manul crystal revolving doors |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
Lenz Motor |
| Power Supply: |
220V or 110V |
| Door Length: |
2100mm to 4200mm |
| Model: |
Revolving |
| Warranty: |
24monthes |
| Function: |
Revolving&Sliding |
| Standard System Weight: |
Around 500kg |
| Position: |
Exterior |
| Surface Finishing: |
Finished |
| Open Style: |
Revolving |
Product Description

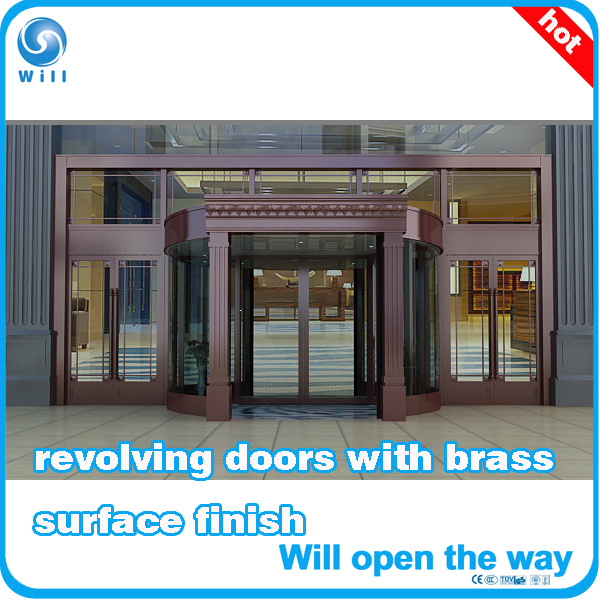

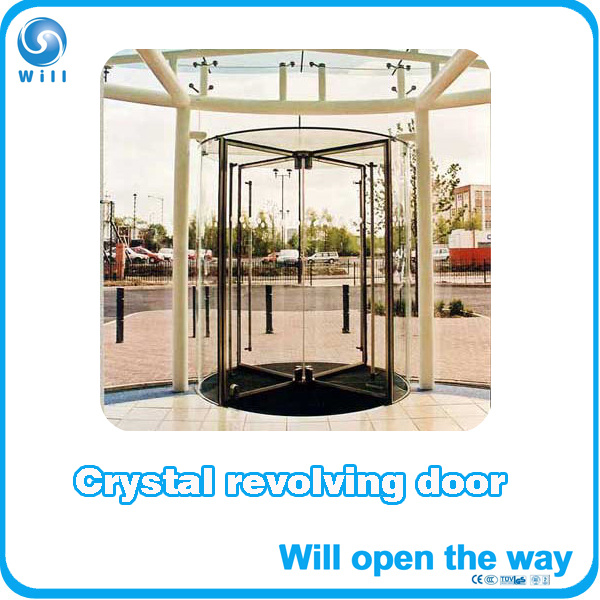

Automatic Revolving Door
Product Details
Revolving Door
Models:

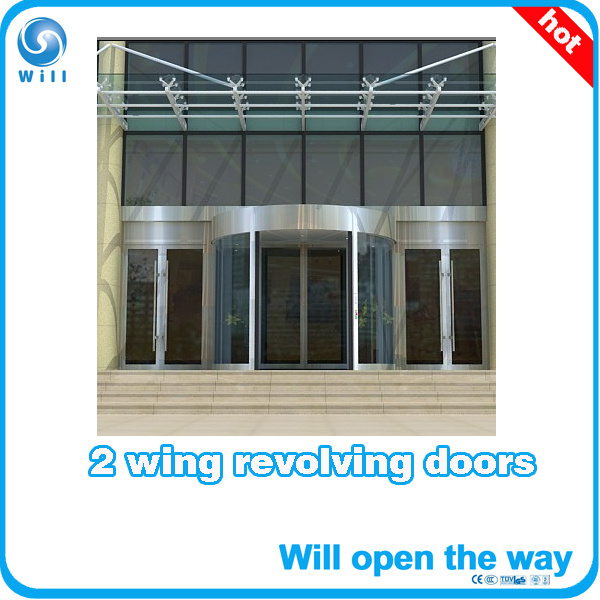

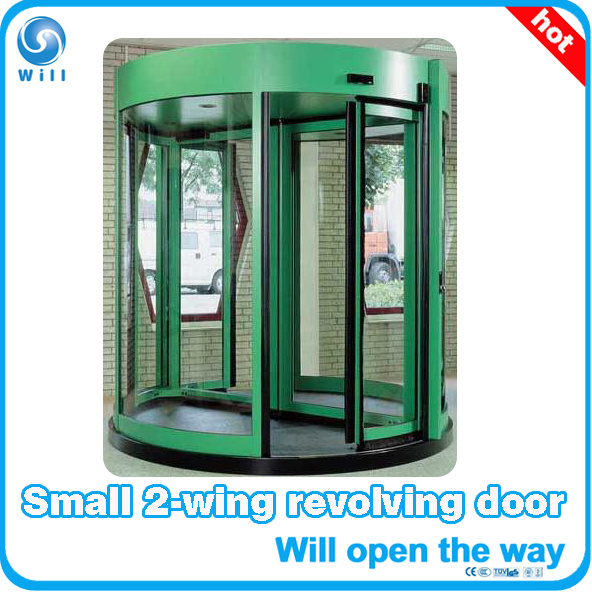

Automatic Revolving Door Unit with 3 or 4 wings. Available in the following model sizes (delete as applicable)
3 Wing 4 Wing
1800mm Diameter
2100mm Diameter
2400mm Diameter
2700mm Diameter
3000mm Diameter
Standard equipment:
Automatic drive
Control unit built-in behind the fascia above the inside entrance Microprocessor controlled with plug-in modules and LED status lights
Speed control
Vertical safety switches
Glass in drum: 8 mm clear laminated
Glass in wings: 6 mm clear laminated
Other types of glass available
Door sections made from aluminium profiles
Ceiling made from white laminated panels
Dust protection roof made from white laminated panels
Accessories and Options: (Delete as applicable)
Powder-coated finish (RAL colours)
Anodizing, clear or bronze
Stainless steel cladding
Emergency stop
Electro-mechanical lock
Mechanical lock on door leaves
Fascia, non-standard height (300 - 1300mm)
Internal height non-standard
Sheet metal sandwich panel instead of glass
Spotlights
Water-resistant cover
Rotation brake
Emergency break-away system
Midrails on door leaves
Additional safety on rotating part
Air curtain
Technical specifications:
Power supply - 220/240 V, 50 Hz - 110/120 V, 60 Hz
Power consumption: 220 W
Lighting: 12 V, 120 W
Mains fuse: 10 A
Warranty: 24months
Workshop
Farwill automatic door factory established in July, 2006 which grows very fast. Farwill has attained ISO9001, ISO14001, SGS and CE certifications. During the past four years We have 2 production bases covering 1, 000
Square meters and more than 100 employees. Our automatic door annual production capacity is 3000 sets of automatic swing doorsAnd 300000 sets of automatic sliding doors, as well as revolving doors.
Farwill integrates Swiss automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.
Today Farwill products are widely used in 89 countries & regions around the world, and more customers are joining us. For some we provide blank products, and for some more we deliver the goods with Farwill as our common brand.
We will open the way!
