Product Specifications
| Prod Model: |
DEK-1390 |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

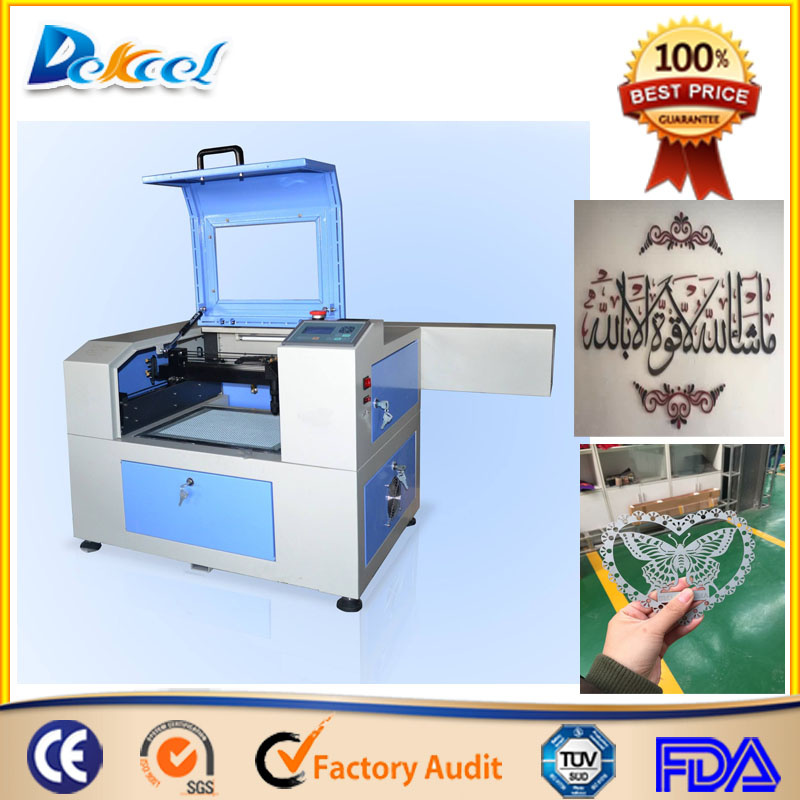

reci 100W CNC Laser Cutting Machine for Wood Acrylic MDF
Features of reci 100W CNC Laser Cutting Machine for Wood Acrylic MDF
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube.
Application of reci 100W CNC Laser Cutting Machine for Wood Acrylic MDF
Advertisement signs and marks making, handicraft industry, crystal accessories, paper
cutting, wood and bamboo industry, printing industry, clothing and leather industry,
garment industry, decorative industry, photo frame making and so on.
Technical Detailes for reci 100W CNC Laser Cutting Machine for Wood Acrylic MDF
| Working area | 1300*900mm |
| Laser Types | Sealed CO2 Laser Tube 50W-150W |
| Engraving speed | 0-60,000mm/min(according to different materials) |
| Cutting speed | 0-10,000mm/min(according to different materials) |
| Control system | Ruida |
| Location precision | ≤0.01mm |
| Resetting positioning accuracy | 0.01mm |
| Voltage | AC 110V-220V(±)10% / 50-60Hz |
| Minimum shaping character | English 1.0 x 1.0mm Chinese 2.0*2.0mm |
| Driving system | Stepper motor |
| Cooling mode | Water-cooling and protection system |
| Compatible Software | CoreDraw, AutoCAD, PhotoShop |
| Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc |
| Standard accessories | (01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable
(04) Communication cable
(05) Air exhaust fan
(06)Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine) |
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
Welcome to DEKCEL CNC, where our friendly and knowledgeable staffs are happy to assist you with your CNC needs. DEKCEL do not just sell CNC machines. We offer CNC solutions to Customers. Provision of a CNC machine is more than just the provision of a machine tool. Jinan DEKCEL provide a range of CNC Router, CNC laser, plasma cutting machine, laser marking machine etc. Having manufactured, sold, installed and supported over 7000 CNC machines. The professional CNC router, laser, plasma cutter we offer have exceptional long term stability, high cutting performance potential in a variety of applications and the machine systems are built to last. Listening to customers'needs and building high quality CNC Routers, laser, Plasma Cutters etc to fulfill their requirements is the way we do business in the CNC marketplace. If you are looking to get into the CNC world, have a CNC application in mind, have a new business idea or looking to further your production, have a look at what DEKCEL have to offer you!
