Product Specifications
| Prod Model: |
DEK-1390 |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

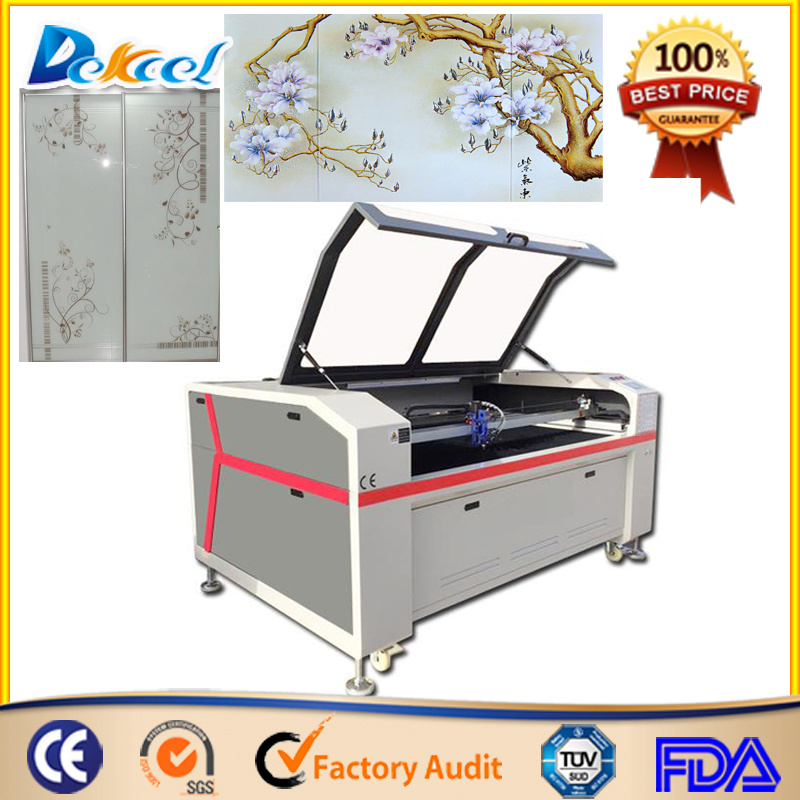

1390 Reci 80W cnc Laser Carving Machine for Glass acrylic
1390 Reci 80W cnc Laser Carving Machine for Glass acrylic main features
The Laser Cutter features digital DSP control panel, HIWIN rails, the machine can be matched to AutoCAD,coreIDRAW CAD and all other graphics processing softwares for outputing original graphics.
This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource.The LCD controlling panel brings friendly computer-human interface and easy operation.
Advantages of cnc co2 glass engraver
1.)High-speed, speeds of up to 60000mm / min, effectively improve the work efficiency.
2.)Facilitate discharge and reclaimer system, with lifting up and down to adjust the front-end can be completely open.
3.)Auto feeding system, automatic upload and download material, save manual cost and improve working efficiency.
4.)Support AUTOCAD, CORELDRAW, lasercut5.3 , PHOTOSHOP and other design software, human-machine interface is friendly, close to the industry needs
5.)Double heads, can do two work at one time.
Technical Detailes for 1390 Reci 80W cnc Laser Carving Machine for Glass acrylic
| Working area | 1300*900mm |
| Laser Types | Sealed CO2 Laser Tube 60W-150W |
| Engraving speed | 0-60,000mm/min(according to different materials) |
| Cutting speed | 0-10,000mm/min(according to different materials) |
| Control system | Ruida |
| Location precision | ≤0.01mm |
| Resetting positioning accuracy | 0.01mm |
| Voltage | AC 110V-220V(±)10% / 50-60Hz |
| Minimum shaping character | English 1.0 x 1.0mm Chinese 2.0*2.0mm |
| Driving system | Stepper motor |
| Cooling mode | Water-cooling and protection system |
| Compatible Software | CoreDraw, AutoCAD, PhotoShop |
| Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc |
| Standard accessories | (01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable
(04) Communication cable
(05) Air exhaust fan
(06)Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine) |
Application in industry / Materials:
1.In bamboo, crystal, horn, print, organic glass, marble, cloth, leather, rubber, plastic and other non-metallic materials on laser processing.
2.Clothing, embroidery, fabric toys, home act the role ofing cloth art, handbags, gloves, toy industry, leather, leather cutting and surface of carve patterns or designs on woodwork.
3.Arts and crafts, model, advertisement, decoration, electrical appliances, plastic industry, acrylic board, medium density decorating plate etc. Nonmetal sheet precision cutting.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
.After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
