Product Specifications
| Prod Model: |
HZ-FC0360 |
| Installation Base: |
Concrete, Panel, Brick, Steel Structure. |
| Safety Device: |
Photocell Sensor(Korea Autonics) |
| Command System: |
1.German Sew 2.China Sej / Snma |
| Drive System: |
1.German Sew 2.China Sej / Snma |
| Motor Power: |
0.75kw-2.2K/50-60Hz |
| Opening Frequency: |
1000-1500times/Day |
| Door Curtain Thickness: |
0.8/1.0/1.2/1.5mm |
| Quantity Warranty: |
12 Months |
| Perspective Window: |
1.2mm PVC Transparent |
| Adjustable Opening & Closing Speed: |
0.7-1.6m/S. |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
With Remote Control |
| Special Function: |
Fire Proofing |
| Certification: |
SGS |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Material: |
PVC Fiber |
| Color: |
Red/Blue/Green/Grey/Orange/Green |
Product Description

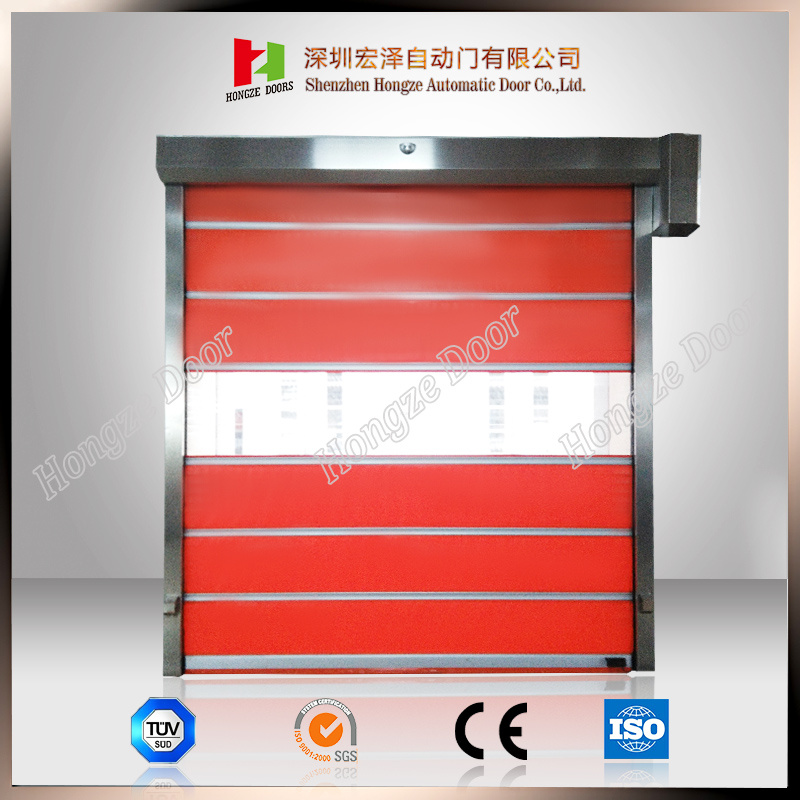

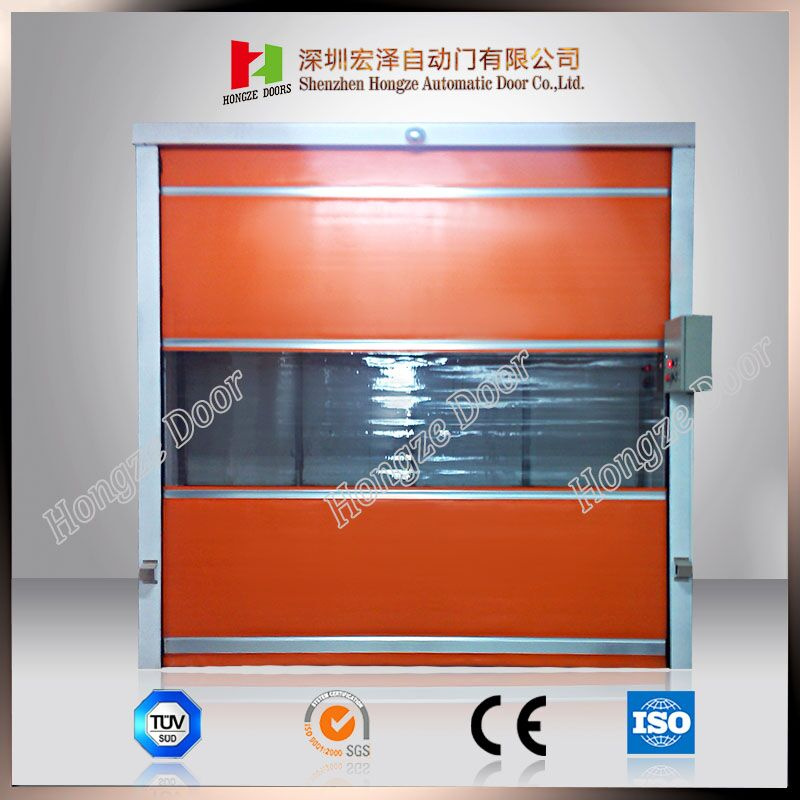

Rapid Shutter High Speed Forklift Roll up Fabric Fast Roller Door
Material Selection
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength 600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 ° C +70 ° C.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Cotrolling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Pyament item: 50% before production, and the other 50% before shipment.
17. Warranty Details: We provide 12 months warranty for all doors and accessories (except man-made disasters, Irresistible natural disasters, ect ).
Company Information
Hongze Auotomatic Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Product Use :
Internal/External rapid rolling door, used in high-frequency logistics channel. The door curtain wind resistant pole was formed by the wind resistant steel tube( wind resistant pole: it is on the request about the door opening's wind pressure to deploy), strong wind resistant, suitable for large-scale external doors and in request wind resistant's internal doors, sealing, vermins-proof and dust-proof, protecting the working environment.
Applications:
*Indoor, outdoor which requests resistant the wind/ temperature .
*Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
*The Industries In high request in environmental health.
F A Q
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
