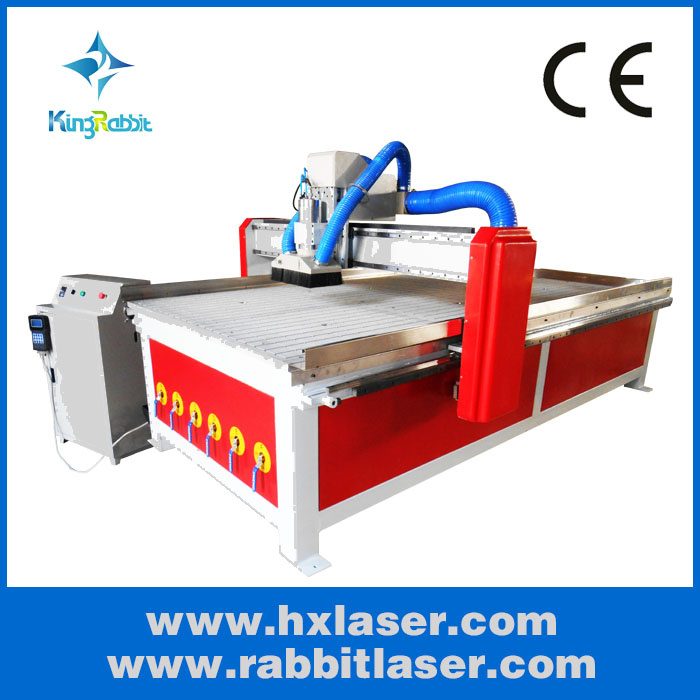

Product Specifications
| Prod Model: |
RABBIT RC1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300*2500*150mm |
| Control System: |
DSP Handle |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Vertical |
| Certification: |
SGS |
| Type: |
Wood Process and Matching Equipment, Engraving Router |
Product Description
Application:
Woodworking industry: Wave plate processing, wood cabinet, cupboard door, fine pattern's engraving, carving of the antique furniture, craft wood door, paint-free door, byobu, craft casement, etc.
Advertising industry: Advertising signs& label making, engraving of Acrylic, crystal words' processing, plastic molding's making, etc.
Others: Decorations, plastic light box, molds, wooden architechts'molds, product identification industry, carpentry furniture industry, teaching, enterprise and public institution, etc.
Machine features:
1.3kw water cooling spindle, more powerful, low noise, not easy to break cutters.
2. Double motors and drivers installed for Y-axis, moving stably.
3. Imported linear square guide way, double row four row slider, high precision, long life time.
4. High precision rack and pinion transmission, fast speed.
5. Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9, etc.
6. Dust collector, keep the work table clean.
7.6 vacuum zones, can separately control.
8. Emergency stop button, ensuring the operation safety.
|
Items |
Destription |
Optional |
|
Effective working area |
1300(X)mm*2500(Y)mm*200(Z)mm |
Bigger |
|
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station |
Higher |
|
Materials |
Welded steel |
|
|
Guide rail |
Linear round guide rail |
Linear square guide |
|
Transmission |
Rack for X Y-axis,
ball screw for Z-axis |
Whole ball screw transmission |
|
Driving mode |
Stepper motor |
Servo motor |
|
Spindle motor |
3.0kw water cooling |
Bigger or air cooling |
|
Spindle speed |
0-24000rpm/min |
|
|
Empty traveling speed |
0- 3 0000mm/min |
|
|
Engraving speed |
0- 16 000mm/min |
|
|
Voltage |
AC 380V 50/60Hz |
AC220V 50/60Hz |
|
Resetting accuracy |
0.05mm |
|
|
Control system |
DSP off-line control system |
PCI NC Studio or March |
|
Carving Instructions |
G code *Uoo *mmg *plt *HPGL |
|
|
Packing size |
3 18 0*1 8 50*1600mm |
|
|
Gross weight |
1000kg |
|
|
Optional spare parts |
1. W ater tank for metal/stone
2. Rotary axis for cylindrical materials
3. Vacuum table
4. Dust collector . |
|
