Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300*2500*150mm |
| Control System: |
DSP Handle |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Vertical |
| Certification: |
SGS |
Product Description

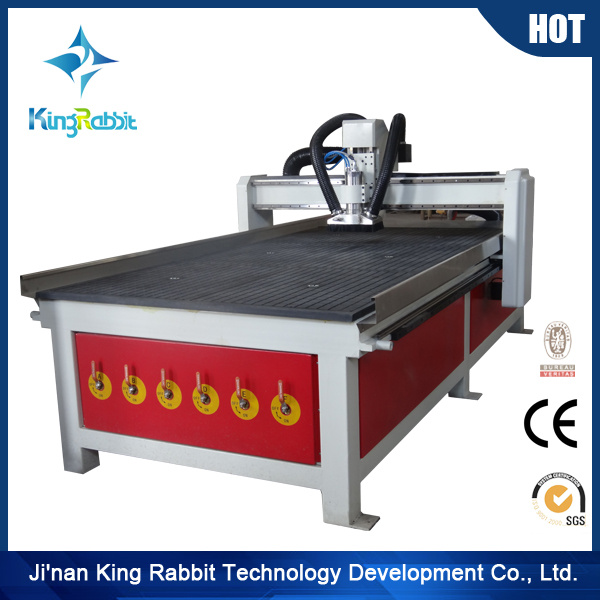

Rabbit RC1325 3KW/5.5KW Woodworking cnc router machine for sale
Application:
Woodworking industry: Wave plate processing, wood cabinet, cupboard door, fine pattern's engraving, carving of the antique furniture, craft wood door, paint-free door, byobu, craft casement, etc.
Advertising industry: Advertising signs& label making, engraving of Acrylic, crystal words' processing, plastic molding's making, etc.
Others: Decorations, plastic light box, molds, wooden architechts'molds, product identification industry, carpentry furniture industry, teaching, enterprise and public institution, etc.
Machine features:
1.3kw water cooling spindle, more powerful, low noise, not easy to break cutters.
2. Double motors and drivers installed for Y-axis, moving stably.
3. Imported linear square guide way, double row four row slider, high precision, long life time.
4. High precision rack and pinion transmission, fast speed.
5. Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9, etc.
6. Dust collector, keep the work table clean.
7.6 vacuum zones, can separately control.
8. Emergency stop button, ensuring the operation safety.
| Items | Destription | Optional |
| Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm | Bigger |
| Max.thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station | Higher |
| Materials | Welded steel |
|
| Guide rail | Linear round guide rail | Linear square guide |
| Transmission | Rack for X Y-axis,
ball screw for Z-axis | Whole ball screw transmission |
| Driving mode | Stepper motor | Servo motor |
| Spindle motor | 3.0kw water cooling | Bigger or air cooling |
| Spindle speed | 0-24000rpm/min |
|
| Empty traveling speed | 0- 3 0000mm/min |
|
| Engraving speed | 0- 16 000mm/min |
|
| Voltage | AC 380V 50/60Hz | AC220V 50/60Hz |
| Resetting accuracy | 0.05mm |
|
| Control system | DSP off-line control system | PCI NC Studio or March |
| Carving Instructions | G code *Uoo *mmg *plt *HPGL |
|
| Packing size | 3 18 0*1 8 50*1600mm |
|
| Gross weight | 1000kg |
|
| Optional spare parts | 1. W ater tank for metal/stone
2. Rotary axis for cylindrical materials
3. Vacuum table
4. Dust collector . |
|
JINAN KING RABBIT TECHNOLOGY DEVELOPMENT Co., Ltd. Was founded in 1999. It mainly produces laser Engraving/Cutting Machine, Vinyl Plotter, CAD Plotter and CNC Router, and is a high scientific and technical enterprise that combines research, development, production and sale together.
For many years, the company has been devoting to the developing of optical, mechanic and electric integral technology and products which have received independent intellectual rights. It widely cooperates with foreign and domestic experts, univerersities and colleges, continuously explores and keeps forging ahead, forms an enterprise team with strong strength, special skill and innovative creation.
KING RABBIT Company relies on many years of market experience, and has established a relatively stable, continuously expanding and perfect sale and after-sale service network. Our products have been spread all over the country and some of them have been exported to more than 60 countries in the world.
The Laser Engraving/Cutting Machine which is developed by KING RABBIT Company independently has been more and more widely used in various industries such as Arts and Crafts processing, Advertising Decoration, Clothing cut-out, Leather processing, Model and Printed hectograph making and so on.
KING RABBIT Company adheres to the product manufacturing concept of "excellent quality; Innovative science and technology", insists on the enterprise spirit of "credit first; Service foremost", and is willing to cooperate with friends both home and abroad to create a brighter future.
