Product Specifications
| Prod Model: |
HX-4060SE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Certification: |
SGS, Ce, ISO 9001 |
| Usage: |
Non-Metalic Materials |
Product Description

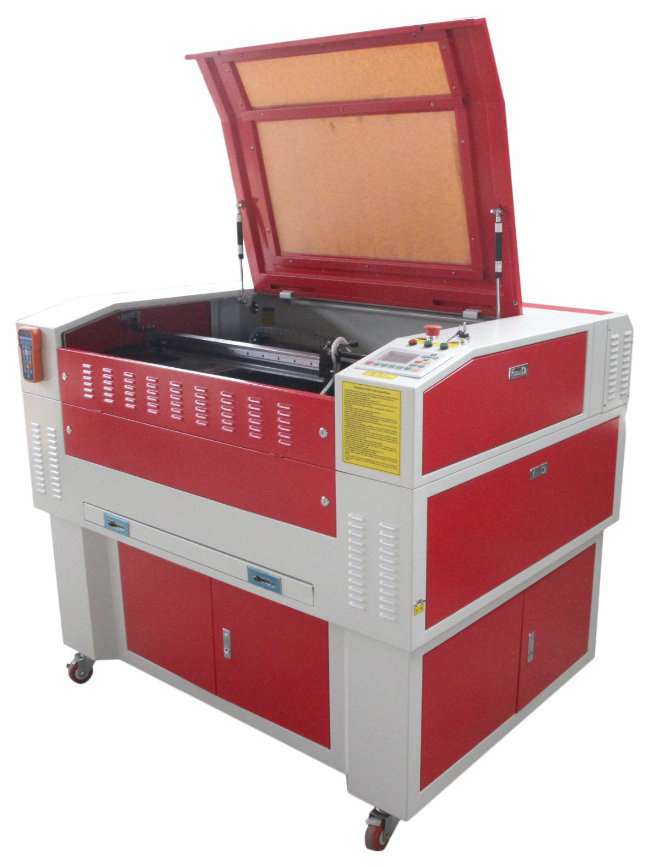

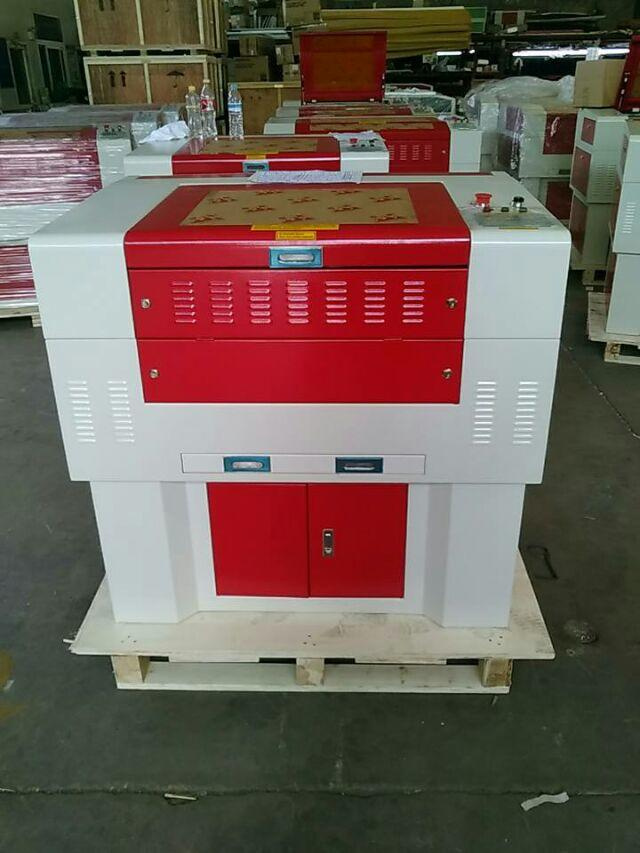

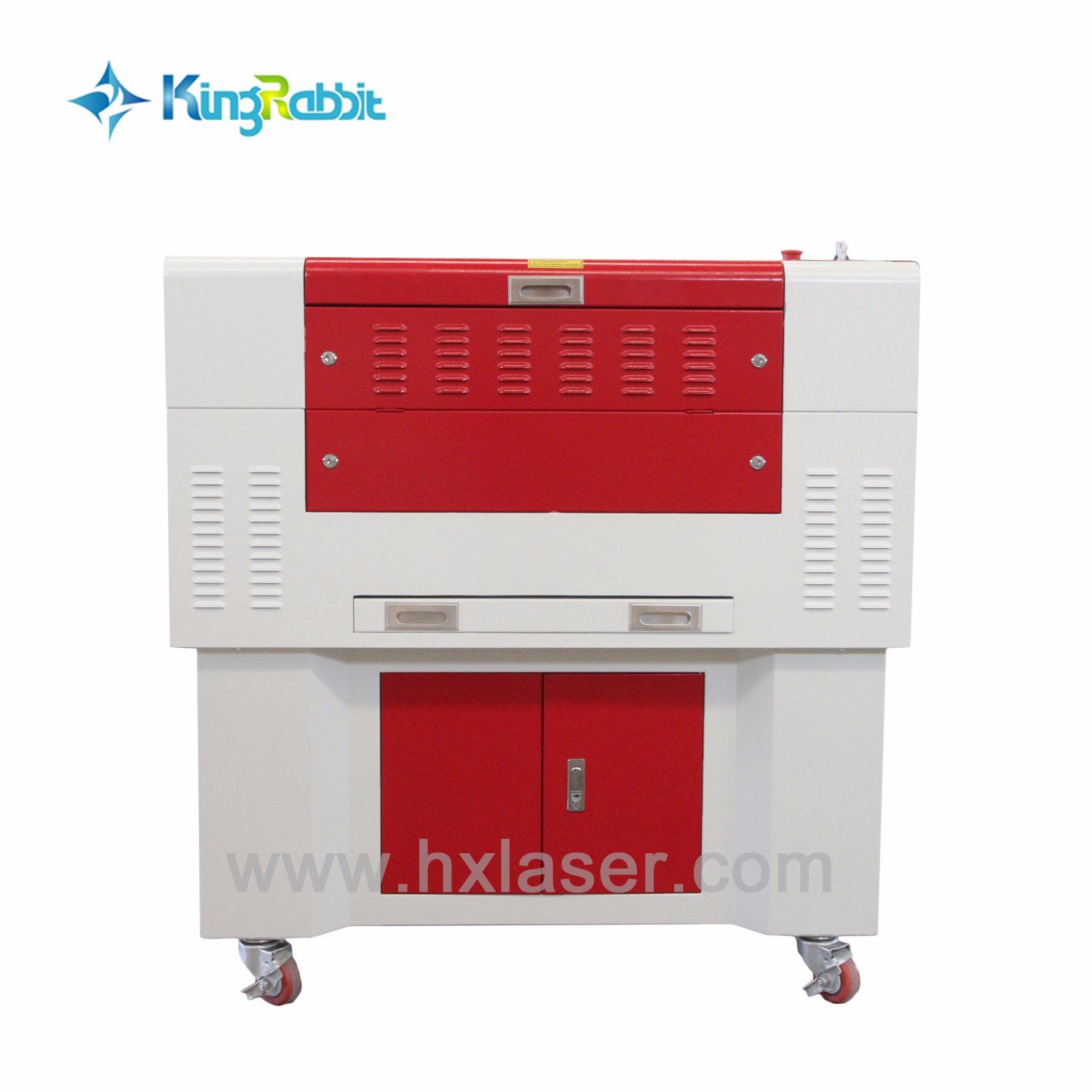

rabbit HX-4060SE laser cutter with red-dot pointer
Place of Origin: China
Brand Name: Rabbit
Certification: CE
Terms of Payment: T/T
Supply Ability: 5, 000PCS/year
Minimum Order: 1PC
Delivery Lead Time: 25 days
Detailed Product Description
New software realizes seamless connection with BMP, PLT and various graphic processingsoftware, such as Photoshops, AutoCAD and CorelDRAW and has direct originalgraph output function and meets users' site design requirements.
The product can define carving sequence freely and realize all or partial outputfor one time easily.
The product supports array output and fixed point output. It has quicker speed, carvingspeed can reach 830mm/s, cutting speed can reach 33mm/s and cutting accuracycan reach 0.1mm. So it can greatly improve working efficiency. The equipmentnewly adds 3, 600 carving slope function and has more powerful functions.
Carving materials include normal non-metal materials such as organic glass, wood, leather, cloth, plastic, rubber plate for printing, double-color plate, glass, synthetic crystal, jean, cardboard, dense plate and marble.
It has high speed cutting and smooth operation. It isn't limited by work efficiencyof traditional laser processing, using perfect mechanic combination so as toensure overall stability of equipment and make curve cutting without any saw tooth, shake or noise.
It has large power smoke emission system, large power water cooling system, specialcontrol software, air pump and automatic water cooler (option).
There is also no-water alarm available. Cooling water display, automatic alarm andcutting off the operation of laser during circular water failure to protect laser.
Smoke emission system starts automatically when carving machine operates; Smoke emissionsystem closes automatically when carving machine finishes.
Electric controlled automatic elevation platform has easy and flexible operation. The product has large range and is convenient for carving materials with differentthicknesses.
Features:
1) Uses newly developed digital controlled software
2) Equipped with CO2 glass inner cavity sealing type laser, continuous circular water cooling system, original imported liner guide rail and high speed stepping motor
3) Uses integral steel frame structure so as to ensure high accuracy and stability of equipment operation
4) Cutting speed: Acryl: L0 - 25mm
5) Carving speed: 0 - 830mm/s (32.7" )
6) Cutting speed: 0 - 33mm/s
7) Maximum forming character: English: 1.5 x 1.5mm
8) Locating accuracy: ≥ 0.01mm
9) Power supply: AC 200V± 10%
10) Operating temperature: 0-45oC
11) Circular water temperature: 5 - 30oC
12) Driving way: Constant flow and subdivision
13) Slope angle: 360°
14) Supported figure and image data formats: PLT, DXF, BMP, JPG, GIF, PNG, TIF
JINAN KING RABBIT TECHNOLOGY DEVELOPMENT Co., Ltd. Was founded in 1999. It mainly produces laser Engraving/Cutting Machine, Vinyl Plotter, CAD Plotter and CNC Router, and is a high scientific and technical enterprise that combines research, development, production and sale together.
For many years, the company has been devoting to the developing of optical, mechanic and electric integral technology and products which have received independent intellectual rights. It widely cooperates with foreign and domestic experts, univerersities and colleges, continuously explores and keeps forging ahead, forms an enterprise team with strong strength, special skill and innovative creation.
KING RABBIT Company relies on many years of market experience, and has established a relatively stable, continuously expanding and perfect sale and after-sale service network. Our products have been spread all over the country and some of them have been exported to more than 60 countries in the world.
The Laser Engraving/Cutting Machine which is developed by KING RABBIT Company independently has been more and more widely used in various industries such as Arts and Crafts processing, Advertising Decoration, Clothing cut-out, Leather processing, Model and Printed hectograph making and so on.
KING RABBIT Company adheres to the product manufacturing concept of "excellent quality; Innovative science and technology", insists on the enterprise spirit of "credit first; Service foremost", and is willing to cooperate with friends both home and abroad to create a brighter future.
