Product Specifications
| Prod Model: |
CSL-SKM4500S |
| Products Type: |
UHF Microphone |
| Carrier Frequency Range: |
590-890 MHz |
| Input: |
3-Pin XLR |
| Sensitivity: |
-95 ~ -67dBm |
| Receiving Mode: |
Superheterodyne Receiver |
| Maximum Frequency Deviation: |
75kHz |
| Signal-to-Noise Ratio: |
>120dB |
| Frequency Response: |
25 ... 18000 Hz |
| Packing: |
Packaged in Carton Case or Flight Case |
| Warranty: |
2 Year |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Differential Type |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description

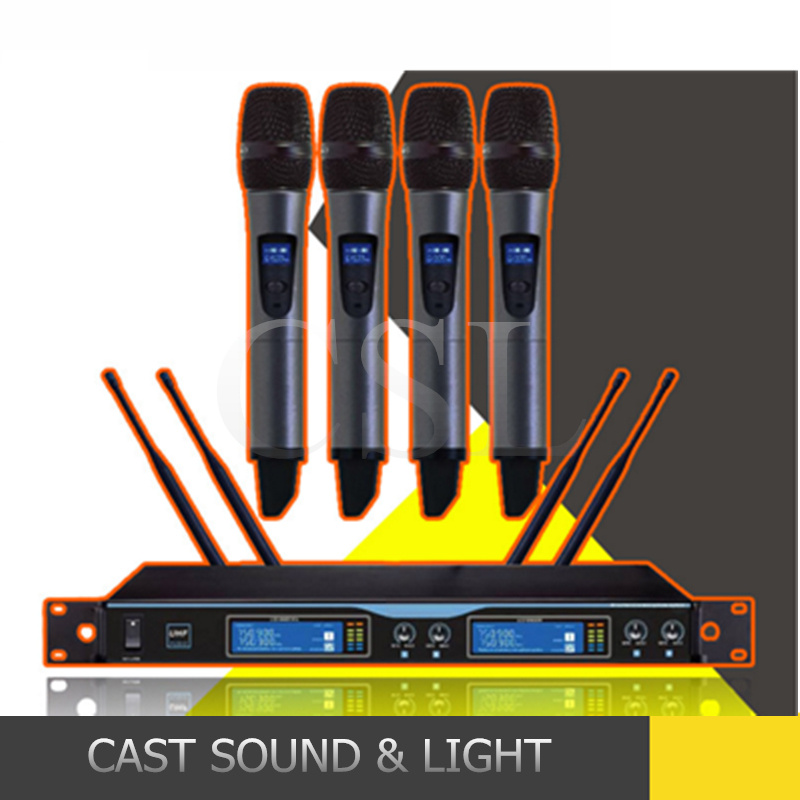

Professional Multi-Channels UHF Wireless Microphone (SKM-4500S)
Fixed frequency
Using quartz crystal oscillating circuits that the frequency is very steady.
With audio compressing-expanding technology, the machine can lower
noises and increase the dynamic range,it can also lower reecho.
Metal handheld transmitter.
Specification
| Frequency range | 640-690MHz/740-840MHz |
| S/N ratio | >95dB |
| Stability | <±20ppm |
| Dynamic range | >98dB |
| T.H.D. | <0.5%(1KHz) |
| Audio response | 40HZ~18KHZ ±3dB |
| Audio out Balanced | 0~700mV |
Receiver
| Power requirement | DC15-18V |
| Image rejection | 98dB |
| Sensitivity | 5dBu(SINAD=20dB) |
| Receiving mode | quartz locked |
Handheld Transmitter:
| RF power | +12dBm |
| Frequency deviation | ±40KHZ |
| Power supply | 1.5V × 2 |
