Product Specifications
| Prod Model: |
CSL-SKM4500s |
| Products Type: |
UHF Microphone |
| Carrier Frequency Range: |
590-890 MHz |
| Input: |
3-Pin XLR |
| Sensitivity: |
-95 ~ -67dBm |
| Receiving Mode: |
Superheterodyne Receiver |
| Maximum Frequency Deviation: |
75kHz |
| Signal-to-Noise Ratio: |
>120dB |
| Frequency Response: |
25 ... 18000 Hz |
| Packing: |
Packaged in Carton Case or Flight Case |
| Warranty: |
2 Year |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Differential Type |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description

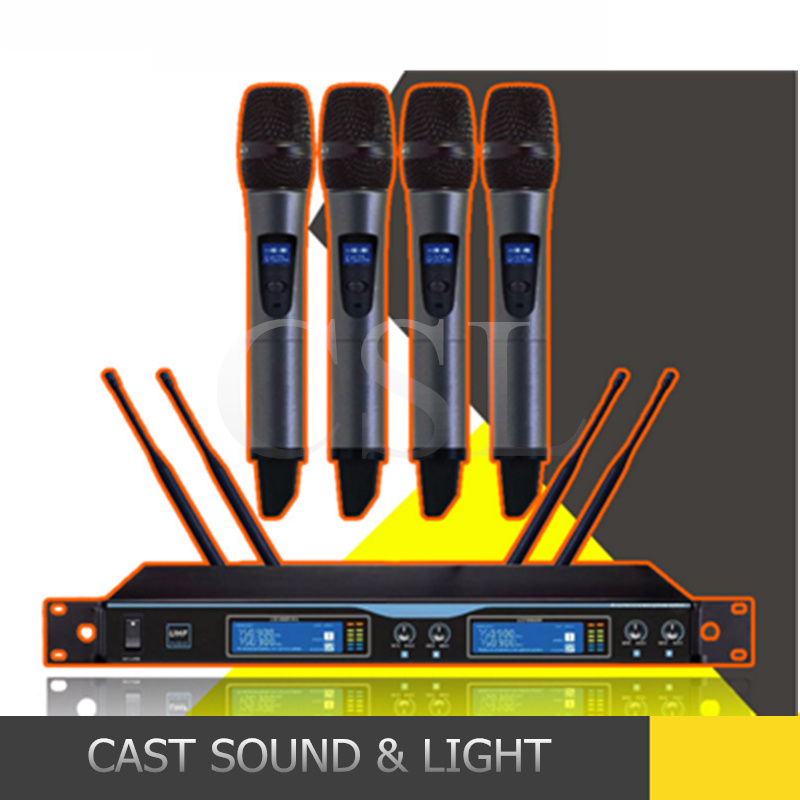

Professional Four Channel UHF Wireless Microphone System
Fixed frequency
Using quartz crystal oscillating circuits that the frequency is very steady.
With audio compressing-expanding technology, the machine can lower
noises and increase the dynamic range,it can also lower reecho.
Metal handheld transmitter.
Specification
| Frequency range | 640-690MHz/740-840MHz |
| S/N ratio | >95dB |
| Stability | <±20ppm |
| Dynamic range | >98dB |
| T.H.D. | <0.5%(1KHz) |
| Audio response | 40HZ~18KHZ ±3dB |
| Audio out Balanced | 0~700mV |
Receiver
| Power requirement | DC15-18V |
| Image rejection | 98dB |
| Sensitivity | 5dBu(SINAD=20dB) |
| Receiving mode | quartz locked |
Handheld Transmitter:
| RF power | +12dBm |
| Frequency deviation | ±40KHZ |
| Power supply | 1.5V × 2 |
Key Words
Dual Handheld mics
Wireless mics
Cordless microphone
Wireless system
Wireless microphones
Audio microphones
Professional microphones
Dual wireless microphone
Trade terms
| MOQ | 1 pcs |
| Price term | FOB / EXW / CIF |
| Payment terms | T/T , Western union , Cash |
| Package | Carton box / Flight case |
| Delivery time | For sample order: about 3 - 5days after payment
For big order : about 5-15days after payment |
| Shipping | By air , By sea ; By express : DHL / UPS / Fedex/EMS |
| OEM | We accept OEM order |
| Warranty | Three years |
| After sells service |
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 2 years.
|
