Product Specifications
| Prod Model: |
HF-083 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Door Type: |
Accordion Doors, Shutters |
| Door Material: |
Plastic |
| Colour: |
Transparent |
| Function: |
Add Dimension |
| Transparency: |
88% |
| Max Lifting Height: |
6m |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
With Remote Control |
| Special Function: |
Security |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
| Material: |
PC |
| Color: |
White/Cream/Gray |
Product Description

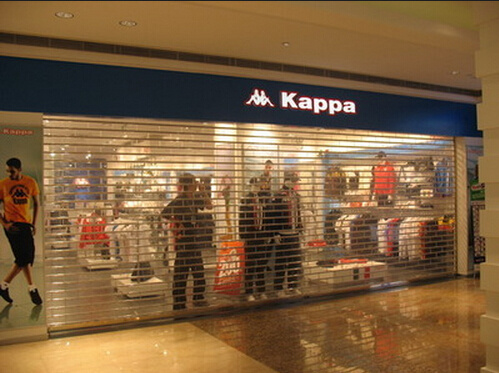

Polycarbonate PC Transparent Rolling Up Door (HF-083)
- Commercial automatic pc roller doors
1.Crystal rolling Door is a popular design for commercial building to offering top secruity together with the ultimate in style and strength.
2.The difference between this crystal roll door and the rest is "Cmpletely Cear But Solid".
3.The cryatal roll door Let your after-hour display add dimension to your product range and take advantage of every marketing opportunity.
4.The crystal rolling door is suitable for any commercial applications including shopping centres,banks,shop fronts,bar tops,arcades and so on.
Features:
--Almost transparent - display can be seen when shop is closed
--High security - near steel strength
--Virtually indestructible - Fabricated from extruded aluminum, robust weather and rust proof with polycarbonate glazing making the shutter almost indestructible.
--Ideal for shopping malls and high profile shops
--Custom made - to fit every opening perfectly
--Electrically operated for fast easy roll up and roll down operation.
Curtain specification:
-- import high viscosity polycaronate meterial
-- Impact strength:1400J/m2
-- Elongation at break:250%
--Transparency:88%
-- Bending strength:78 Mpa
-- Rockwell hardness(HRR):60
Motor data:
--Rated voltage220VAC
--Power: 180W
--Rated current:1.5A
--Rotated speed4.8r/min
--Max lifting height:6m
Bank roller door date sheet
Item | Unit | Date |
| Transparent rooer door Material | / | Polycarbonate |
| Impact Strength | J/M2 | 1400 |
| Elongation at Break | % | 250 |
| Transparency | % | 88 |
| Bending Strength | Mpa | 78 |
| Rockwell Hardness(HRR) | / | 60
|
