Sliding Accordion Grilles /Polycarbonate Crystal Folding Door Hf-181

Product Specifications

Prod Model:	HF-181
Fire-Resistant Limit (H):	3
Maximum Roll Length (Mm):	< 50000
Maximum Height (Mm):	< 6000
Resistencia Al Fuego (H):	>30
Maxmum Roller (Mm):	<50.000
Material:	Aluminum Alloy
Style:	Modern
Open Style:	Folding
Position:	Commercial
Surface Finishing:	Unfinished

Product Description

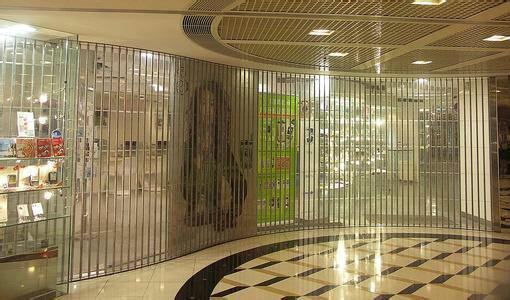

Sliding Accordion Grilles /Polycarbonate Crystal Folding Door HF-181


Crystal folding gate is using good transparent polycarbonate anti shock and anti ultraviolet properties of the solid plate with a ("PC"). Each panel are independent from the aluminiumn frame, pull straight up / down the middle door frame and the assembly, and the panel are connected by a rotating shaft and the formation of the door body strong; end door frame and the frame are connected by straight and. All pull aluminum parts surface is smooth oxidation. PC will be installed to the door frame, straight bottom and middle frame composed of concave grooves. Each panel x-ray width is fixed, and the height depends on the height of the door body .


Crystal Folding Door Structure
 PC: polycarbonate solid board (PC board) thickness of 2.5mm;
The upper / lower main frame material; the upper / lower auxiliary frame materials: middle frame material: surface is a natural surface oxidation; vertical hinged frame material and vertical hinge base frame material: made of pure aluminum alloy 6063/T5 drawing table;
U type PC plate damping material, transparent silica gel, aging resistance, waterproof, buffer;
Drill countersunk head tapping screws materials, the high quality carbon steel;
The door frame with four countersunk screws, surface smooth and beautiful. (see below) leaf blade width is determined according to the actual size, blade width range selection between 220mm-280mm, to ensure the structural stability of each door body and the space occupied by the appropriate;
Hanging wheel crane rail:
Hanging wheel: high quality bearing skeleton and outsourcing wear-resistant nylon material, abrasion resistance, convenient installation with (the) track mute effect is very perfect,
Hanging rail: unified national standard 6063-T5 material for aluminum, the aluminum hardness strong, stable quality. Surface anodic oxidation treatment has reached the national top level, the wear, no color, surface gloss is very good;
 Hardware accessories: hook lock, handle, a bolt, to cover, with the surface, are made of high quality 304 stainless steel, durable.
Crystal Folding Door Advantage
Crystal folding gate due to the unique design of products and light the gate body, simple and quick installation;
The manual folding gate installation width up to 18 meters long and the maximum installation height of 3 meters, switches and push the ease;
Using polycarbonate sheet with UV and B1 flame retardant (PC board);
Have There is nothing comparable to this perspective, and excellent security performance;
In accordance with the requirements of the design to adjust the mounting rail radian, to R600.Crystal Folding Door Advantage.
1. By Sea for batch goods, for FCL; Port receiving,
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 10-15 days for design; 15-30 days for batch goods.
Payment Terms
1. Payment: T/T, L/C, Western Union, MoneyGram,PayPal; 50% deposits; 50% balance before delivery.
2. MOQ: 1pcs,
3. Warranty : 1 years.
