Pilot Scale Milk Powder Making Machine Spray Dryer

Pilot Scale Milk Powder Making Machine Spray Dryer
Price: US $ 9500set
Trade Terms: FOB,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union

Product Specifications


Prod Model: YC-018
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name: Large Particles Spray Dryer
Brand: Yacheng
Model Number: Yc-018
Body Material: SUS304 Stainless Steel
Capacity: 3500ml/Hr
Power: 5kw/220V
Frequency: 50/60 Hz
Air Inlet Temperature: 30 - 350defree Centigrade
Air Outlet Temperature: 30 - 140defree Centigrade
Nozzle Type: Two Fluid Nozzle

Product Description


Product Profile

YC-018 mini Spray dryer is self contained and supplied complete and ready for immediate operation. All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional stainless steel stand. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .


Product Description

Shanghai Pilotech Lab Spray Dryer have been applied by over 1,500 domestic customers of top universities, enterprises and research institutes including AMSS Institute of Systems Science, Tsinghua University, Shanghai Jiao Tong University, South China University of Technology, Wuhan University, Tongrentang, Xiehe Pharmaceutical, Bright Dairy, Hong Kong Polytechnic University, Harbin Pharmaceutical Group, Strong Group, General Electric (GE) Shanghai R&D Center, Jiangnan University, China Agricultural University, Zhejiang University, Tongji University and Huazhong University of Science and Technology. With firm grasp of domestic market advantage, Pilotech also vigorously expands overseas markets with equipment exported to the United States, Italy, South Korea, Singapore, Canada, Malaysia, Chile and Russia, receiving extensive praise in view of product quality.


TECHNIACL INFORMATION


Sr.no

Parameter

Pilotech YC-018 mini spray dryer

1

Power

5KW

2

Voltage

220V

3

Frequency

50/60 Hz

4

Air Inlet temperature

30 ºC -350 ºC

5

Air Outlet temperature

30 ºC -140 ºC

6

Heating control

±1 ºC

7

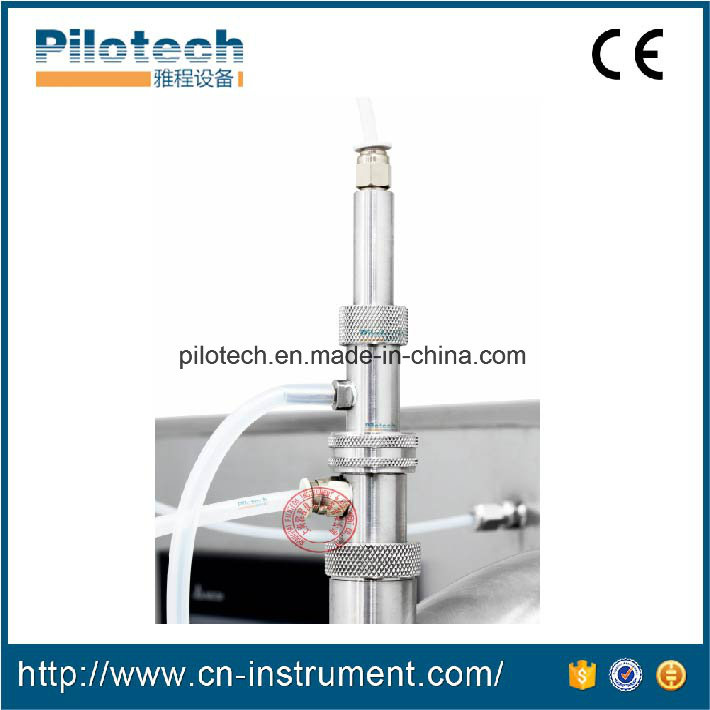

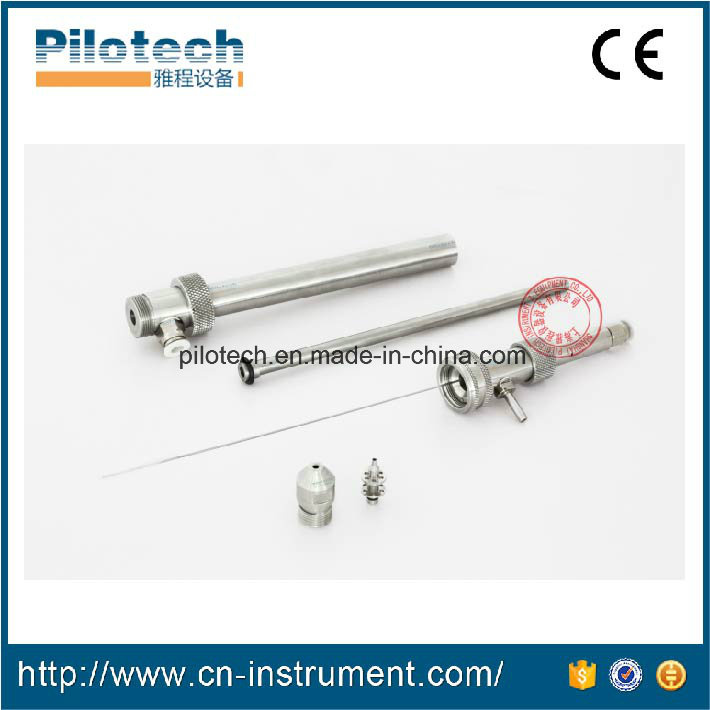

Nozzle type

Two fluid nozzle

8

Nozzle tip diameter

0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)

9

Body material

SUS-304 Stainless steel

10

Possible particle diameter range

10-100µm

11

Mean Residence time

1.0-1.5 sec

12

Max. Sample feed

3500ml/hr

13

Min. sample volume

30ml

14

Operation mode

Automatic/Manual

15

Seal of cyclone/cylinder

Silicone

16

Temperature control

PLC controller

17

Noise

<60db

18

Dimensions

1050*900*1660mm

19

Display

7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency

20

Thermal protection

Blower does not stop until temp <90 ºC

21

Deblocking

Automatic

22

Inert loop (for organic solvents)

Optional
