Mini Price for Large Particles Experimental Spray Dryer (YC-018)

Product Specifications

Prod Model:	YC-018
Item Name:	Large Particles Spray Dryer
Brand:	Yacheng
Model Number:	Yc-018
Body Material:	SUS304 Stainless Steel
Capacity:	3500ml/Hr
Power:	5kw/220V
Frequency:	50/60 Hz
Air Inlet Temperature:	30 - 350defree Centigrade
Air Outlet Temperature:	30 - 140defree Centigrade
Nozzle Type:	Two Fluid Nozzle
Type:	Spray Drying Equipment
Condition:	New
Fuel:	No
Roller Number:	No
Cloth Membrane Forms:	No
Fluid Bed Drying Equipment Type:	No
Vacuum Drying Equipment Type:	Spray Dryer

Product Description

                                   Mini price for large particles experimental spray dryer (YC-018)

Product Profile

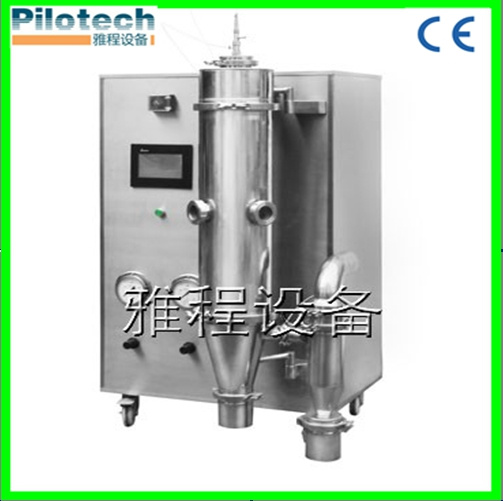

YC-018 mini Spray dryer is self contained and supplied complete and ready for immediate operation. All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional stainless steel stand. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .


Product Description

Shanghai Pilotech Lab Spray Dryer have been applied by over 1,500 domestic customers of top universities, enterprises and research institutes including AMSS Institute of Systems Science, Tsinghua University, Shanghai Jiao Tong University, South China University of Technology, Wuhan University, Tongrentang, Xiehe Pharmaceutical, Bright Dairy, Hong Kong Polytechnic University, Harbin Pharmaceutical Group, Strong Group, General Electric (GE) Shanghai R&D Center, Jiangnan University, China Agricultural University, Zhejiang University, Tongji University and Huazhong University of Science and Technology. With firm grasp of domestic market advantage, Pilotech also vigorously expands overseas markets with equipment exported to the United States, Italy, South Korea, Singapore, Canada, Malaysia, Chile and Russia, receiving extensive praise in view of product quality.
PRINCIPLE

1.A menu driven microprocessor controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed. The controller features an RS 232 output for connection to a PC or datalogger and software allows the control and monitoring of all functions and printing of results.
2.The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber. At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.
3.Heated air is blown through the main chamber evaporating the liquid content of the atomised spray. The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.

ADVANTAGES

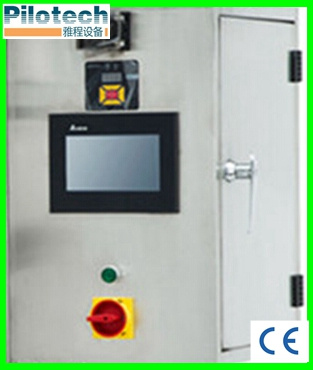

1.Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system. Using proface touchable interface display operation, operator can control temperature, airflow volume, air pressure,pump speed and de-blocker frequency.
2.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alk li, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.
3.Made of SUS-316 Stainless steel. Easy operating.
4.To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID.
5.A filter has been equipped to the inlet unit to prevent the sample from contamination .
6.The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed.
7.Narrow size distribution of particles.
8.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
9.The air compressor is no oil and don't pollute compress air. The power from receiving tank has a good flow. The sound is low than 60db, and following the GMP understands.
10.Supplied complete and ready for most spray drying applications.
11.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
12.    Equipped with air filter to remove and collect fine particle s in exhausted air.

TECHNIACL INFORMATION

1.Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .
2.Air inlet temperature range 30ºC to350ºC.
3.Air outlet temperature range 30ºC to 140ºC.
4.Evaporation rate of water at inlet temperature of 250ºC using Standard:Approximately 1500 ml/hour~ 3500ml/hour.
5.Max. Sample feed: 3500ml/h.
6.Min. Sample : 30mL.
7.To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID. Temp. Precision:±1ºC, dry cycle time: 1.0-1.5S.
8.As standard a touch screen to display temperature, airflow volume, air pressure,pump speed and de-blocker frequency.

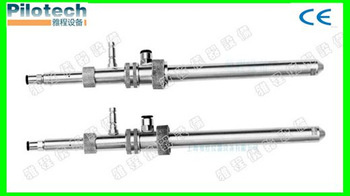

9.Standard with 0.7 mm jet and other sizes are available as accessories.
10.Power: 5KW AC220V .
11.With cooling device for temperature-sensitive material (optional).

APPLICATIONS

Spray drying can be used in a wide range of applications where the production of a free-flowing powder sample is required. This technique has successfully processed materials in the following areas:

Beverages ? Flavours and Colourings ? Milk and Egg Products ? Plant and Vegetable Extracts ? Pharmaceuticals ? Heat Sensitive Materials ? Plastics ? Polymers and Resins ? Perfumes ? Ceramics and Advanced Materials ?


Soaps and Detergents ? Blood ? Dyestuffs ? Foodstuffs ? Adhesives ? Oxides ? Textiles ? Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.

Sr.no	Parameter	Pilotech YC-018 mini spray dryer
1	Power	5KW
2	Voltage	220V
3	Frequency	50/60 Hz
4	Air Inlet temperature	30 ºC -350 ºC
5	Air Outlet temperature	30 ºC -140 ºC
6	Heating control	±1 ºC
7	Nozzle type	Two fluid nozzle
8	Nozzle tip diameter	0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
9	Body material	SUS-304 Stainless steel
10	Possible particle diameter range	10-100µm
11	Mean Residence time	1.0-1.5 sec
12	Max. Sample feed	3500ml/hr
13	Min. sample volume	30ml
14	Operation mode	Automatic/Manual
15	Seal of cyclone/cylinder	Silicone
16	Temperature control	PLC controller
17	Noise	<60db
18	Dimensions	1050*900*1660mm
19	Display	7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
20	Thermal protection	Blower does not stop until temp <90 ºC
21	Deblocking	Automatic
22	Inert loop (for organic solvents)	Optional
