Product Specifications
| Prod Model: |
1-200T/D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1-200t/D |
| Physical Refinery Line: |
Suggest for Big Capacity |
| Chemical Refinery Line: |
Suggest for Small Capacity |
| Successful Cases: |
Installed in Indonesia, Thailand, Ukraine,Cameroun |
| Rich Experience: |
40 Years Experience Factory |
| Engineer Avaiable: |
Supply Engineer for Service and Installation |
| Manufacturer: |
Welcome to Visit Our Own Factory Any Time |
| Refinery Steps: |
Degumming-Deacid-Decolorizing--Deodorizing-Dewax |
| Certification: |
CE ISO9001 SGS etc |
| Phone: |
+86 15038228736 |
Product Description
We have enough experience and advanced machinery for making Palm oil, which lead the technicity in this field.
The crude palm oil has less hydratable & non-hydratable phospholipids and high FFA. So the line is
Adopted the physical refining method, which is not only much more economical and efficient than
Chemical refining, but also causes no pollution through waste water and exhaust air.

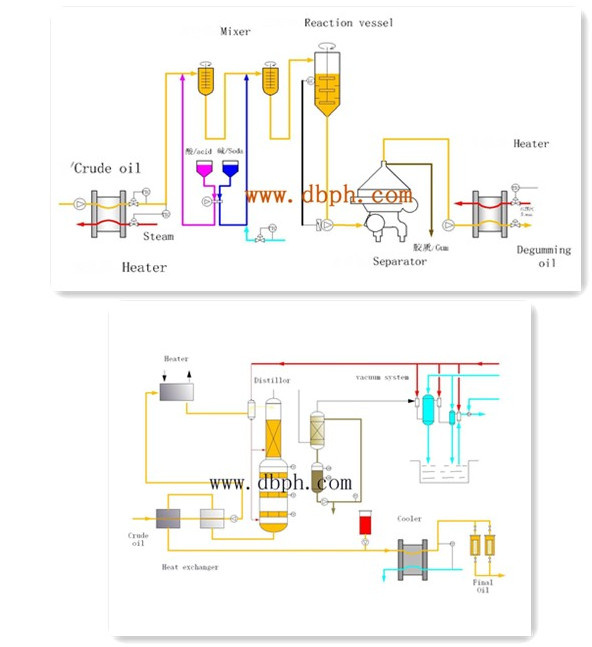

It consists of the following process.
1. Egumming and pre-bleaching Section
Adopts the phosphoric acid to transfer the non-hydratable phospholipids into hydratable phospholipids, then removing out it via the water washing process.
Then separate the gums and oil via one centrifuge. Oil is exchanging heat to 70 degrees and flow into the pre-bleaching process. Use the active clay to remove out the some red color/carotenoids under the vacuum and high temperature. But the more would be removed out in the distilling process.
2. Distilling process
Distilling process not only remove the fetid impurity, increase oil smoke point, make better taste, but also improve
Oil stability, quality and chroma. At the same time, we can get rid of free fatty acid, peroxide, heat-sensitive coloring matter, protein in the mucid oil cake, polycyclic aromatic hydrocarbon, and residual pesticide
Residue. In the oil process, we always emphasized deodorizer
3. Fractionation of oils and fats process
The fractionation of oils and fats is the separation of high-melting triglycerides from low-melting triglycerides by crystallization from the melt. Apart from blending, it is the cheapest process in oils
And fats processing. It is a pure physical process compared to other chemical modification processes such
As hydrogenation and interesterification which modify triglycerides.
The final oil could be separated into 18 degrees, 24degrees, 33degrees according to melting degrees.
The main equipment of oil refinery is various kinds of vessels and tanks carrying on different tasks with additives. These tasks may include sedimentation/filtering, degumming, decolorization (bleaching), deodorization, Crystal vessel for franctionation process, etc.
Different combination of steps and the treating degree of each step result in different grade oils and fats.
Note: We have the different oil mill factory for the visit.
We supply for the turn-key project now and then.
The company is a professional manufacturer specialized in production of oil pressing machines under the Ministry of Machinery Industry of the State.
Now we have and develop the main products:
Vegetable oil machine;
Biodiesel oil machine;
Biomass machine;
Flour mill machine and line, etc.
Its products have been well sold to nearly 40 states and areas both home, enjoying a high reputation, which have got the first of the similar products in 1999 and passed ISO9001 in Jan., 2000.
We have the special exporting company, also to find the others'product according to the inquires of clients!
