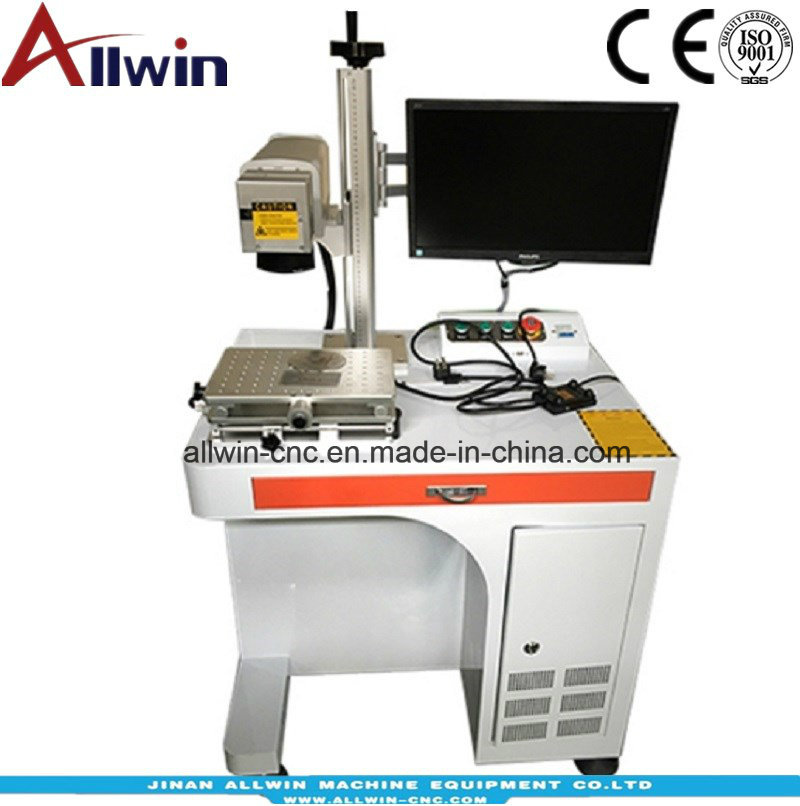

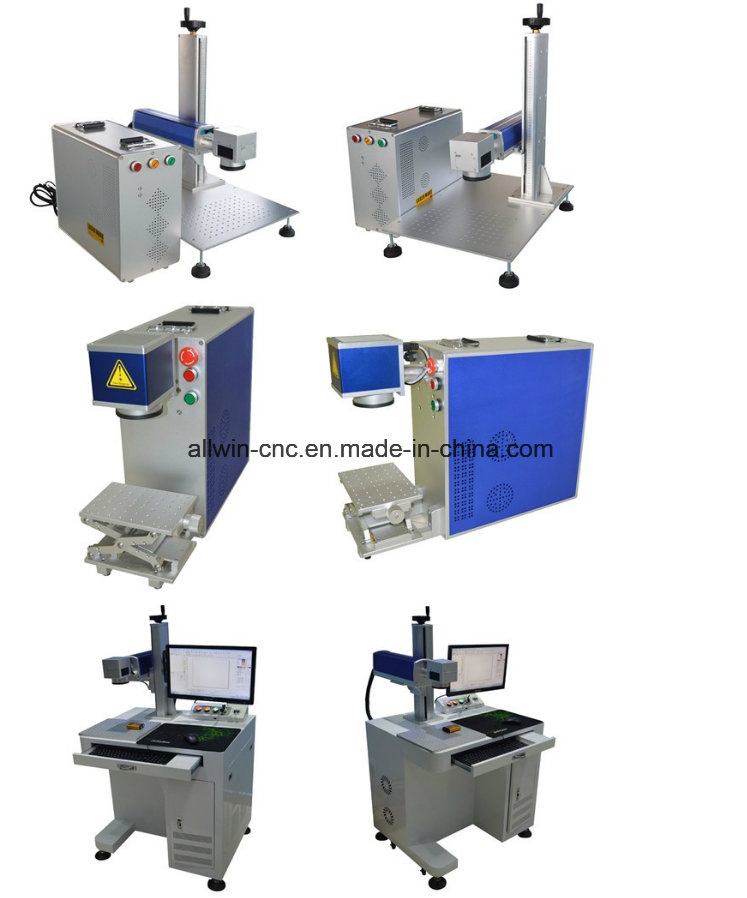

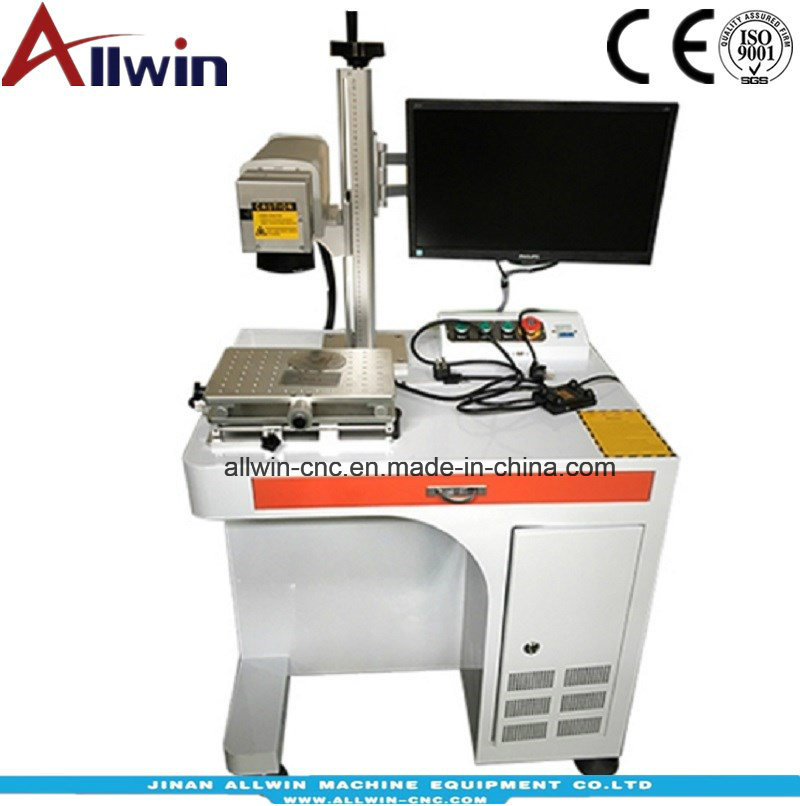

New Type Fiber Laser Marking Machine 20W, 30W, 50W for Metal

Product Specifications

Product Description

Fiber Laser marker/ cnc fiber laser marking machine / fiber laser 20W 30W 50W

Feature:

1.Adopt imported semiconductor module,high speed optical scanner, Q switch,providing speedy scannning and high precision. it use semiconductor diode pump Nd: YAG crystals with a wavelength of 808 nm, so that YAG rods generate a large number of reversal particles. Under the function of Q switch, there will produce colossal pulse light beam output with a wavelength of 1064 nm.

2.Low energy consumption, high electrical-optical conversion efficiency, stable laser output model, high reliability, small size, good marking effect. The markers are designed according to the ergonomics principles with smart appearance and convenient operation.

3.The laser beams experience expansion and focus before they are deflected by the control scanner to realize marking. The optical path system employs a hermetically sealed structure with optical path preview and focus indication functions which provides reliable guarantee for 24-hour continuous operation.

4.The software supports windows7/xp/2000 operating system and mult-languages,

supports barcode font(1D and datamatrix,pdf417 2D barcodes).Also,it is compatible with common graphic formats and support image processing

5.Red light positioning system,ensure accurate positioning,avoid waste.








Feature of fiber laser marking machine
1. It has a novel design, Small and compact size.
2. It adopts IPG Fiber Laser or RAYCUS or Yipin or Chuangxin
 Fiber Laser, the transportation rate of electricity and optic is high,
the function is stable and can work for a longer time continuously.
3.New structures and control systems. Using DMC1620 high-precision 16bit Control circuit, so the marking speed is faster.
4.Adopt all-new structure ,exquisite appearance,centralized intelligent control system. FM fiber maker support full-English operating interface. This machine is easy to learn and operate.
5.It is applicable to static or flying marking on the surface of metallic or some non-metallic materials. And the
marking accuracy and precision is higher.

Technical data of fiber laser marking machine

Model	Allwin
Laser power	10w/20w/30w/50w
Working area	110*110mm/175*175/ 200*200mm / 300* 300mm
Laser Wavelength	1064μm
Response time	0.5ms
Frequency of pulse	20KHz
Max marking depth	≤0.1mm
Marking speed	≤8000mm/S
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.3mm*0.3mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation system	Microsoft Windows XP or Windows 2000
Control software	China RF marking control software or  laser2.1 marking control software
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling (100w: Water Cooling)

Advantages

1) Small size and compact structure, convenient to move.

2) Long lifespan of fiber laser source: 100 000 hours

3) good scanning galvanometer, with good seal, small volume, compact.

4) good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.

5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.

6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.

7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

9) The fiber laser beam no need to adjust the laser optical path.

10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and  environmental.

11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from  CorelDraw, PS, AutoCAD, etc..

12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling  effect in YAG laser, no maintenance.

13) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which needs high precition  and depth marking effect.

Our Fiber Laser Marking Machine is widely applied in many areas.

1. Sheet metal fabrication	6. Elecrical cabinet	11. Elevator
2. Automotive parts	7.Aviation&Aerospace	12.  Lighting lamps
3. Metal carfts & decoration	8. Hardware	13. Advertising
4. Furniture	9.Kitchenwareequipment	14. Fitness equipment
5. Medical equipment	10. Agriculturalmachinery	15. watches & glassware



After sale service:

1. 24 hour Technical support by phone, e-mail or MSN around the clock.

2. Friendly English version manual and operation video CD disk.

3.7-15 working days after down payment or full payment.

4. Machine will be adjusted before it is delivered; operation disk/CD was included.

5. Our technician can give you remote guide online (Skype or MSN) if you have any question.

6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
