Jinan Hongye CNC Machine Co., Ltd. >> New Type 1400mm*1000mm Laser Engraving/Cutting Machine for Wood/Leather

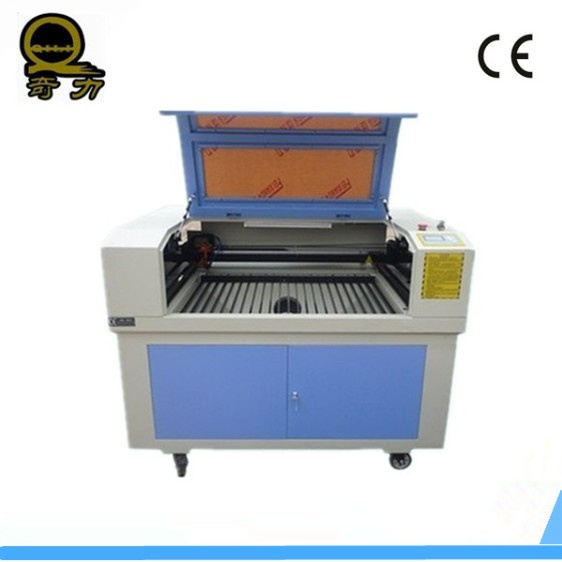

New Type 1400mm*1000mm Laser Engraving/Cutting Machine for Wood/Leather

New Type 1400mm*1000mm Laser Engraving/Cutting Machine for Wood/Leather
Price: US $ 1-5000/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union

Product Specifications


Engraving Machine Type: Laser Engraving Machine
Control: CNC
Current: AC
Laser Type: CO2
Usage: Rubber
Working Area: 1400mm*1000mm
Laser Power: 60W/80W/100W/130W/150W/180W
Engraving Speed: 0-6000cm/Min
Power Supply: 220V/50Hz, 110V/60Hz
Graphic Format Supported: BMP, Plt, Dst, Dxf, Ai

Product Description

New type 1400mm*1000mm laser engraving/cutting machine for wood/leather/cloth/acrylic/plastics

Performance Features

1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen
6) It can also be made according to customer's demands


Machine Specifications:

Model                                                                     QL-1410

Working area                                                         1400mm*1000mm

Laser power                                                           60W/80W/100W/130W/150W/180W

Laser type                                                             CO2 sealed laser tube, water-cooled

Engraving speed                                                   0-6000cm/min

Power supply                                                         220V/50Hz, 110V/60Hz

Graphic format supported                                     BMP, PLT, DST, DXF, AI

Software supported                                              CorelDraw, PhotoShop, AutoCAD, TAJIMA

Driving system                                                      Stepper motor

Optional parts                                                       USB Port, Red light pointer, Autofocus


Material                                                                                                                                       Cut Engrave

Acrylic, Plexiglass, PMMA, Perspex, Organic board, Double color plate                                 Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards                                                                                                                     YesYes
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood                                                              YesYes
Leather, Pig leather, Cow Leather, Sheep leather                                                                    YesYes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece       YesYes

Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
Neopren®                                                                                                                                          YesYes

Paper, Cardboard, Chipboard, Press Board                                                                             YesYes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate                                  NoYes

Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber                                                                                                  YesYes

Glass, Pressed glass, Float glass, Crystal glass, Mirror glass                                               NoYes

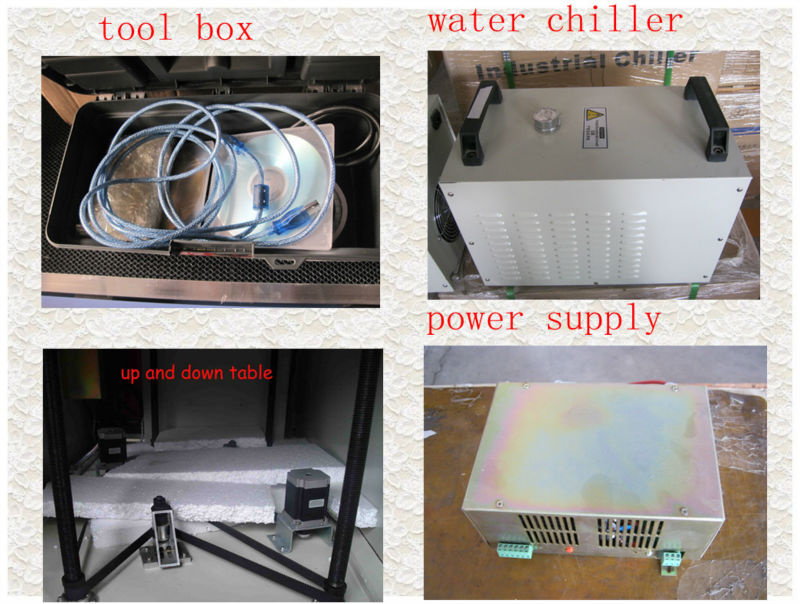

details:

samples:


Guarantee&Aftersales Service
(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)English manual and video CD for machine using and maintaining
(4)Jinan Hongye CNC Machine Co., Ltd provides free operation training service in Hongye factory.



Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.

The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
