Product Specifications
| Prod Model: |
QL-1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Control: |
Automatic |
| Certification: |
CE |
| Laser Type: |
CO2 |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Nonmetal Materials |
| Engraving Machine Type: |
Laser Cutting |
| Laser Power: |
80W/100W/130W/150W Optional |
Product Description

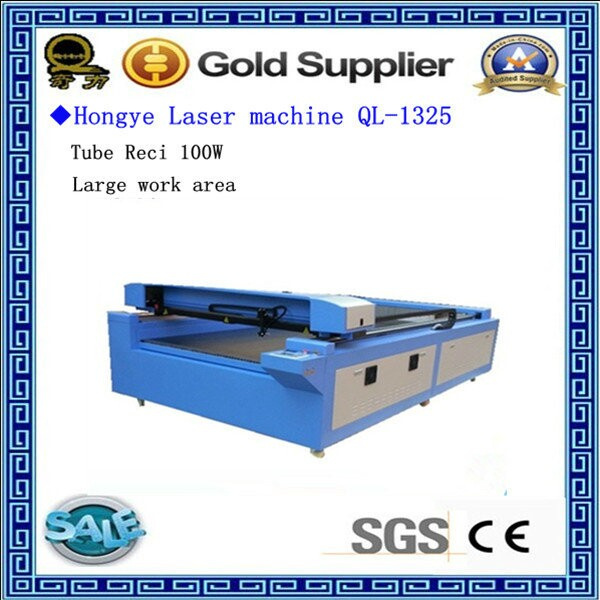

Ql-1325 with High Quality Laser Cutting Machine
Product overview
QL-1325 laser cutting machine is a new laser equipment developed specially according to the needs of the market. Avoid wasting the materials, it has a high beam of light and cuts without contact and can avoid destroy. The kerf is narrow, the incision is smooth, the cutting force is strong, the cutting speed and the working efficiency are high.
Characteristics
1. The imported beeline lead rail, imported stepper engine with the lower speed running structure, the cutting is very stable, the cutting face is smooth.
2. High intention, high precision mechanic structure design, the data control is stable.
3. Choose high technical laser tube, the beam of light is of high quality and the life is long.
4. Input the American imported focusing lens and metal condensing lens, the cutting strength is high.
5. Co figurate the industrial water cooling system with protection, the continuum work ability is stable.
6. The compatibility of the software is good, which can support the format of PLT, BMP, DXF etc.
Specifications:
Model |
QL--1325 |
Working area |
1300mm*2500mm / 51in*98in (L*W) |
Laser power |
100W/130W/150W |
Laser type |
CO2 sealed laser tube,water-cooled |
Cutting speed |
0-50000mm/min (0-1968 inch/min) |
Laser Output |
1-100%software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220V/50HZ , 110V/60HZ |
Operating temperature |
0 - 45°C |
Operating humidity |
5 - 95% |
Min. shaping character |
English 1.0 x 1.0mm |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system |
3 phases stepper motor |
Equipment Dimension |
2960mm*1660mm*900mm |
Packing Dimension |
3140mm*1840mm*1200mm |
Net Weight |
700kg |
Applicable materials
Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles, leather
Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
After-sale service:
(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)User-friendly English manual and video CD for machine using and maintaining
(4)Jinan Hongye CNC Machine Co., Ltd provides free operation training service in Hongye factory.
If you have any questions, please feel free to contact me! Best price and detailed specification will be provided!
