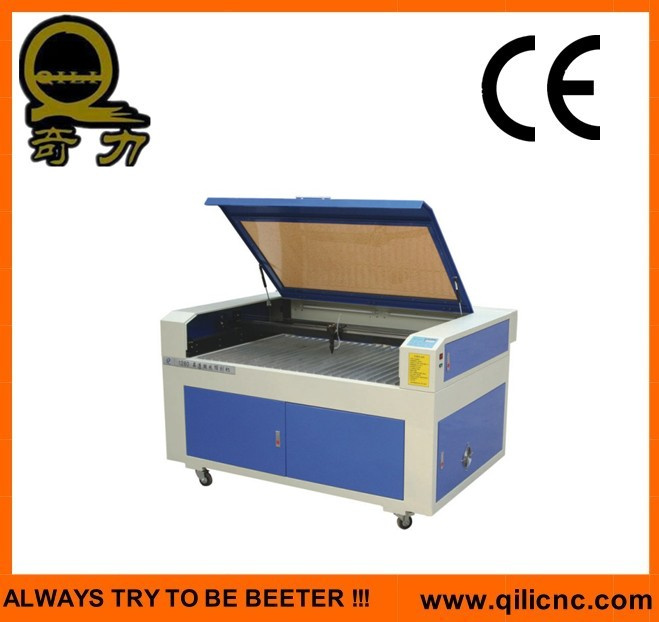

New Style Ql-1610 Leather Engraving and Cutting Laser Machine

Name: New Style Ql-1610 Leather Engraving and Cutting Laser Machine
Brand: china-crystals.com
SKU: 684052332
Availability: InStock
Rating: 4.8 (142 reviews)

Price:	US $ 1500-5000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	QL-1610
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	Laser Engraving Machine
Control:	CNC
Current:	AC
Laser Type:	CO2
Usage:	Rubber Acrylic Leather Wood Bamboo Shell Paper
Working Area:	160cm100cm (LW)
Laser Power:	60W/80W/100W/130W/150W/180W
Engraving Speed:	0-6000cm/Min
Power Supply:	220V/50Hz, 110V/60Hz
Graphic Format Supported:	BMP, Plt, Dst, Dxf, Ai

Product Description

New style QL-1610 leather engraving and cutting laser machine

Performance Features
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) It can also be made according to customer's demands

specifications:

Working area 60cm*40cm / 24in*16in (L*W)

Laser power 60w/80w/100w/130w/150w/180w

Laser type CO2 sealed laser tube,water-cooled

Engraving speed 0-6000cm/min

Power supply 220V/50HZ , 110V/60HZ

Min. shaping characterEnglish 1.0 x 1.0mm

Graphic format supported BMP, PLT, DST, DXF, AI

Software supported CorelDraw, PhotoShop, AutoCAD,TAJIMA

Driving system 2 phases stepper motor

Equipment Dimension 1050mm*750mm*970mm

Packing Dimension 1150mm*850mm*1050mm

Net Weight 150kg

Optional parts Up-down worktable, USB Port, Red light pointer, Autofocus

Material Cut Engrave

Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes

Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards YesYes

Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood YesYes

Leather, Pig leather, Cow Leather, Sheep leather YesYes

Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece YesYes
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR
)Neopren® YesYes

Paper, Cardboard, Chipboard, Press Board YesYes

Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate NoYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes

Glass, Pressed glass, Float glass, Crystal glass, Mirror glass NoYes

after-sale service
1.one year free warranty, main products are free of charge when problem happened during the guarantee period.
2.free training course at our factory with professional engineers.
3.we provide the consumable parts at agent price when you need replacement.
4.24hours online service each day, free technical support with different languages.

Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.

The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
