| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | LH- |
|---|---|
| Business Type: | China Manufacturer/Supplier |
| Product: | Arc and Sputtering Coating System |
| Coating Technology: | Arc, Sputtering |
| Warranty: | One Year Limited Warranty, Lifetime Maintenance |
| Structure: | Vertical, Single Door |
| Control System: | Manual Automatic All-in-One |
| Operating System: | PLC Touching Screen |
| Brand: | Hcvac-China |
| Coating Film: | Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Coating Color: | Gold, Rosegold, Silver, Black, Blue, Rainbow etc |
| Type: | Coating Production Line |
| Coating: | Vacuum Coating |
| Substrate: | Glass, Metal, Ceramic, Alloy, Crystal, Mosaic |
| Certification: | ISO90001, TUV |

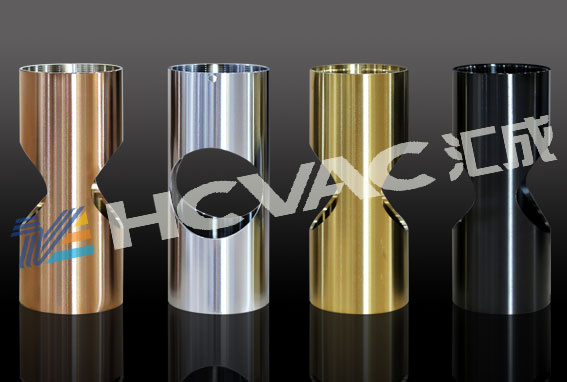

Popular colors which could get by PVD:

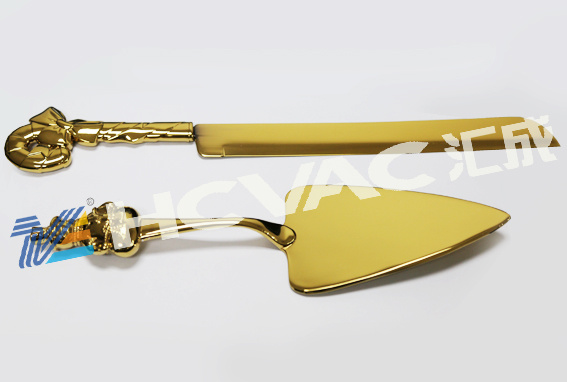

Real gold an real rosegold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au

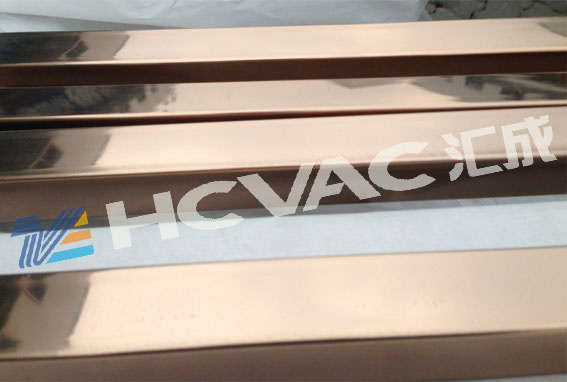

Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN

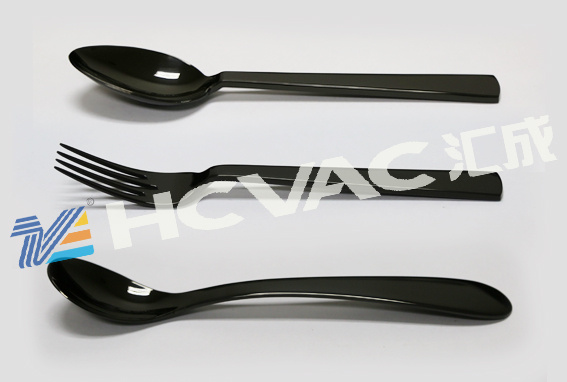

Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
| FEATURES |

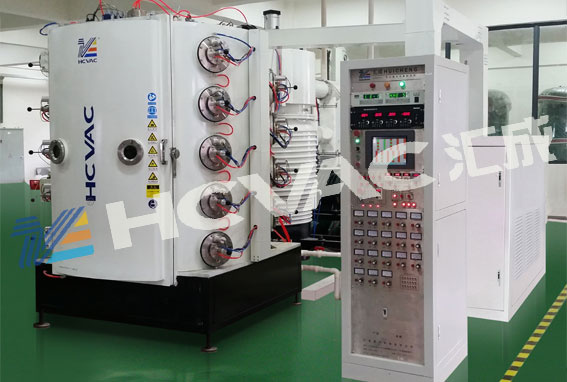

The Titanium Chromium Nitride PVD coating machine with arc and sputtering integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
The Titanium Chromium Nitride PVD coating machine with arc and sputtering makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.
| APPLICATION |
Titanium Chromium Nitride PVD coating machine with arc and sputtering can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This Titanium Chromium Nitride PVD coating machine with arc and sputtering is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.
This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.
Popular colors which could get by PVD:
Real gold an real rosegold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
| FEATURES |
Titanium Nitride PVD coating machine with arc and sputtering coating system integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
The Titanium Chromium Nitride PVD coating machine with arc and sputtering makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.
| APPLICATION |
It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.
| Mode Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm | |
| Coating mode and main confirguration | Eight multi-arc targets | Twelve multi-arc targets | Fourteen multi-arc targets | Twenty multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | |||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | |||

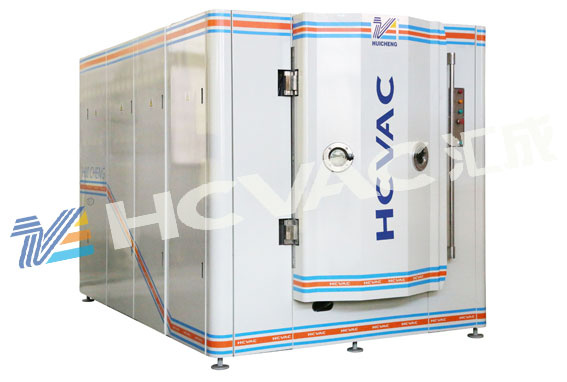

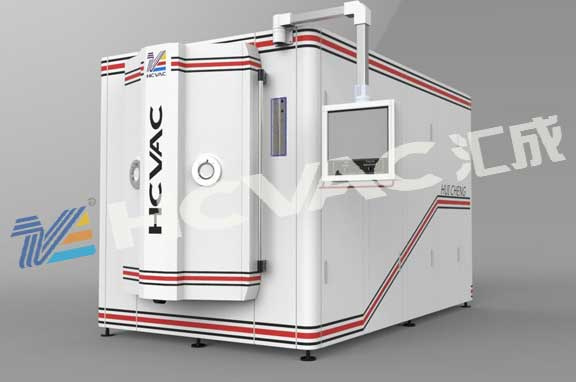

| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling | |||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) | |||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | |||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | |||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | |||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | |||
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. | |||
