Product Specifications
| Prod Model: |
NT6108 |
| Power Consumption: |
The Machine Current 8 Ma or Less |
| Power Supply: |
5 Batteries or Rechargeable Batteries 2 Section |
| Instrument Background: |
80 Cpm or Less |
| Condition: |
New |
| Keywords: |
Personal Dosimeter |
| Energy Range: |
25 Kev - 7 Mev |
| Agent Sensors: |
Mica Geiger Counter, Diameter 45 mm |
| Size: |
160*85*38 mm |
| Weight: |
0.5 Kg |
| Dose Rate: |
0.01 - 10000 Usv/H |
Product Description
Introduction of Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter
Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter is designed for a, B, r(X) Radiation which adopts high speed embedded microcontroller processor as a data processing unit, dot matrix large screen LCD liquid crystal display, clear reading, easy to operate.
Detector for the import of large area high detection efficiency dish GM Geiger detector, can be alpha, beta, surface pollution detection and X-ray radiation, gamma radiation dose rate monitoring.
Applicable Occasions of Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter1. Radiation Metersurface radioactive pollution detection
2. Nuclear medicine and radiation chemistry, molecular biology
3. suspicious object detection
4. Terrorism and nuclear security fields
5. Transport of nuclear material storage
6. environmental pollution investigation
7. Metal, building materials, stone radioactive measurement
8. Entry-exit commodity inspection, port terminals, etc.
9. Thickness, material level measurement, flaw detection, radiation processing etc.
Feature of Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter
1. This radiation meter uses efficient import MICA Geiger detector
2. Dose rate alarm threshold setting, super threshold alarm
3. Flash and sound pulse frequency indicating radiation intensity
4. Sound, vibration, light real-time clock alarm function
5. Ultra-low power design battery real-time instructions
6. Menu operation interface
7. Unit shown CPM, CPS, Bq/cm2, mu Gy/h, mu Sv/h
8. Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter adopts analog and digital display scale, more clear and intuitive
9. slide out detector protection and unique ray shielding plate
Parameters of Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter
| measuring range | count rate 0 - 500000 CPM, 0 - 8000 CPS, |
| dose rate | 0.01 - 10000 uSv/h, |
| agent sensors | Mica geiger counter, diameter 45 mm |
| energy range | 25 kev - 7 mev |
| detection efficiency | Sr - 90 (546 kev, 2.3 MeV beta Max) is about 75% of Am - 241 (5.5 MeV alpha) of about 36% |
| acuity | 3500 CPM/mR/h (for Cs - 137) |
| instrument background | 80 CPM or less |
| relative error | 15% or less |
| power supply | 5 batteries or rechargeable batteries 2 section |
| power consumption | the machine current 8 ma or less |
| temperature range | - 40 ºC to 50 ºC |
| humidity range | relative humidity of 90% or less (40 ºC) |
| size and weight | 160x85x38 mm 0.5 kg |
| portable box size and weight | 260 x206x126mm 0.9 kg |
| measuring range | count rate 0 - 500000 CPM, 0 - 8000 CPS, |
| dose rate | 0.01 - 10000 uSv/h, |
| agent sensors | Mica geiger counter, diameter 45 mm |
| energy range | 25 kev - 7 mev |
| detection efficiency | Sr - 90 (546 kev, 2.3 MeV beta Max) is about 75% of Am - 241 (5.5 MeV alpha) of about 36% |
| acuity | 3500 CPM/mR/h (for Cs - 137) |
| instrument background | 80 CPM or less |
| relative error | 15% or less |
| power supply | 5 batteries or rechargeable batteries 2 section |
| power consumption | the machine current 8 ma or less |
| temperature range | - 40 ºC to 50 ºC |
| humidity range | relative humidity of 90% or less (40 ºC) |
| size and weight | 160x85x38 mm 0.5 kg |
| portable box size and weight | 260 x206x126 |

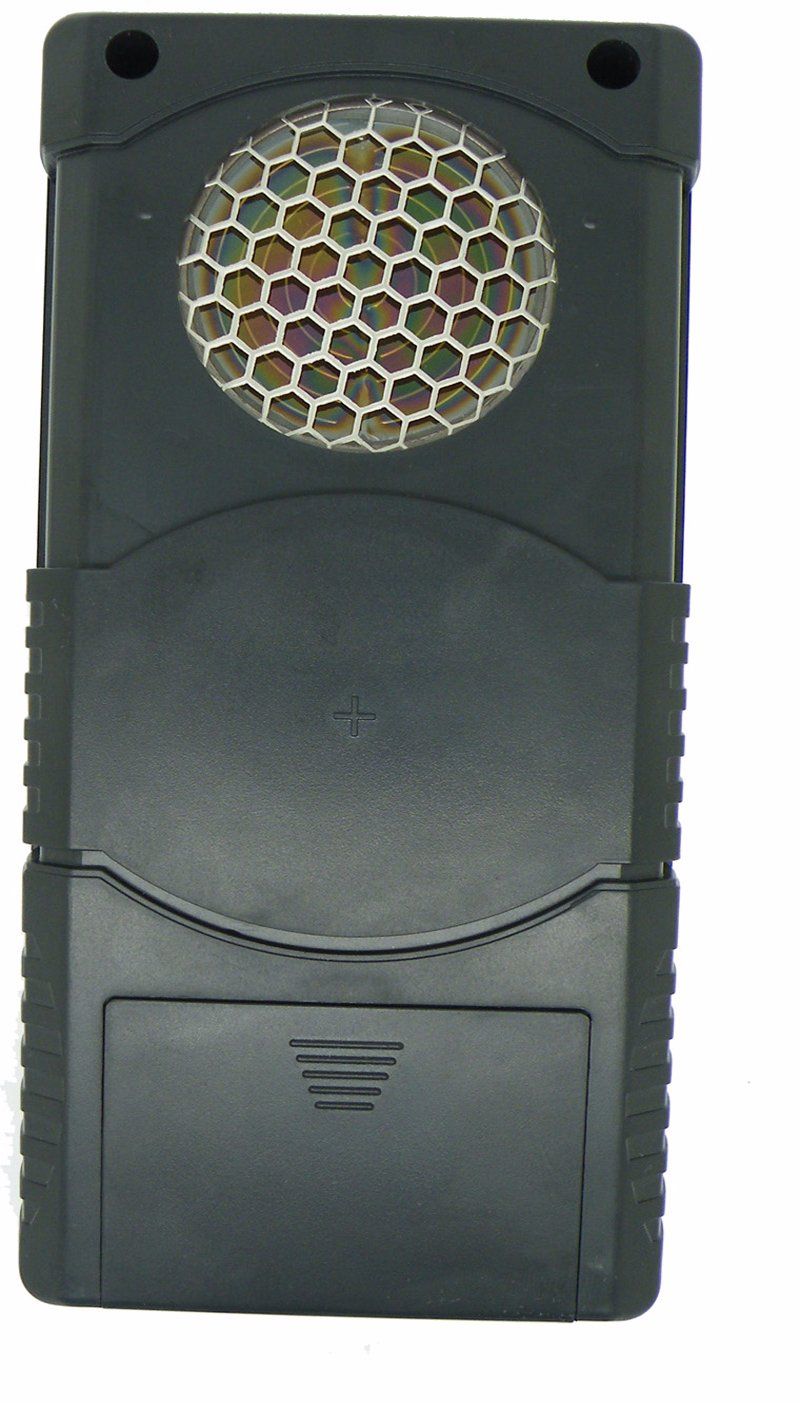

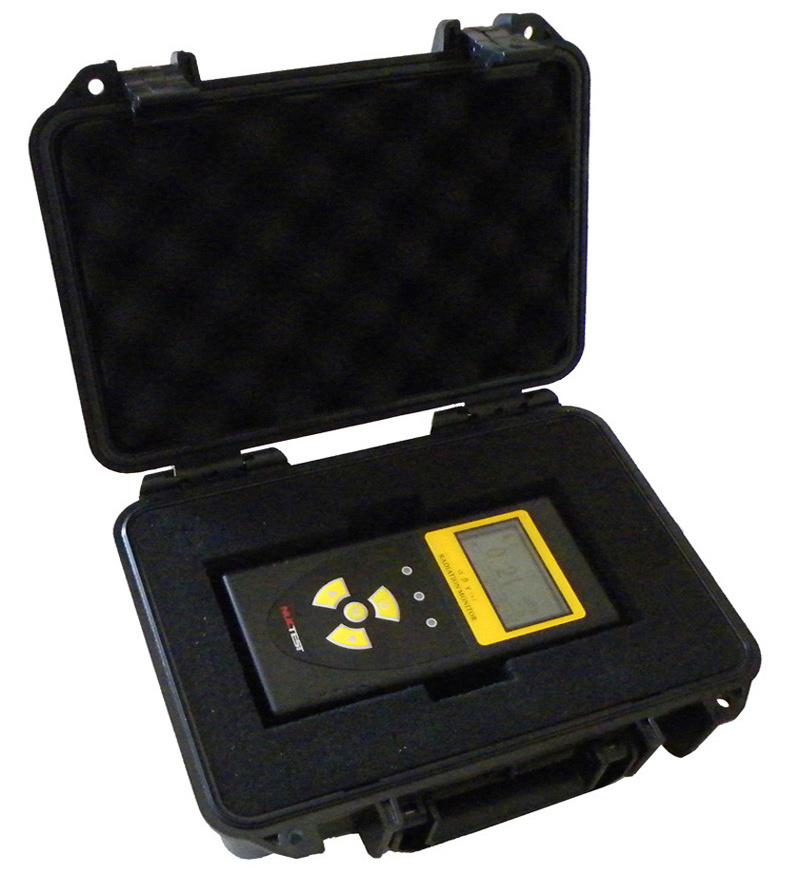

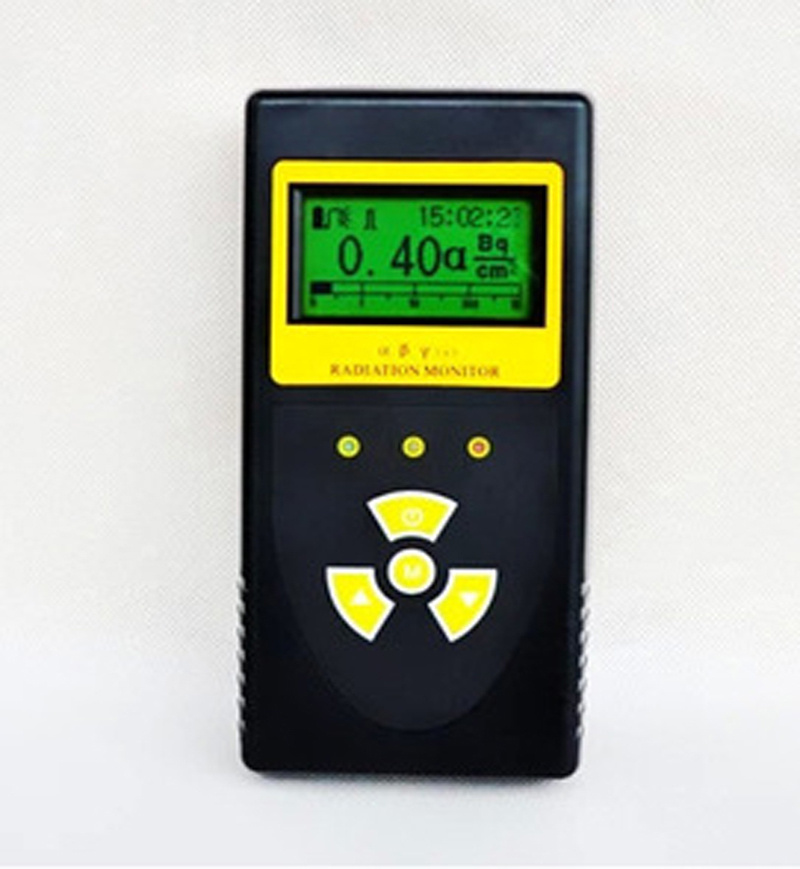

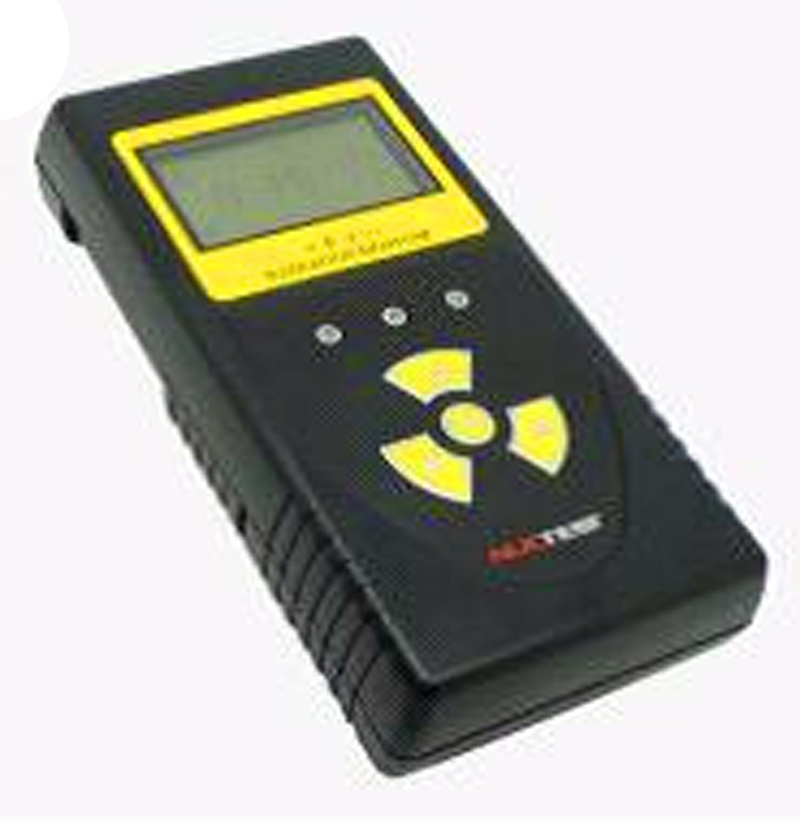

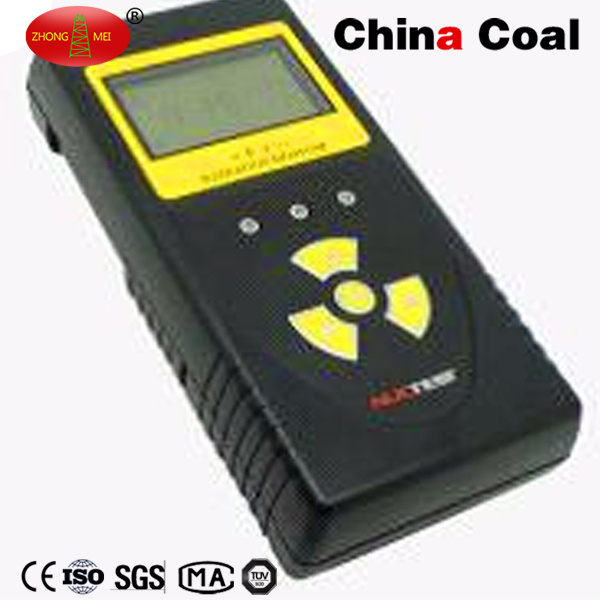

Picture of Nt6108 Mobile Personal Pocket Electronic Radiation Monitor Meter Detector Dosimeter
