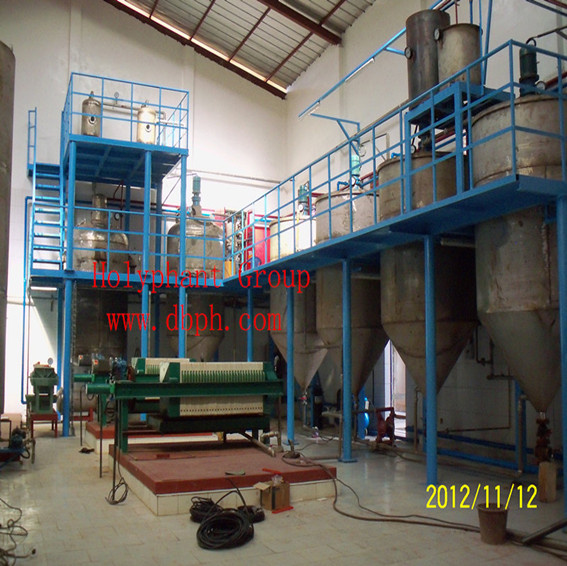

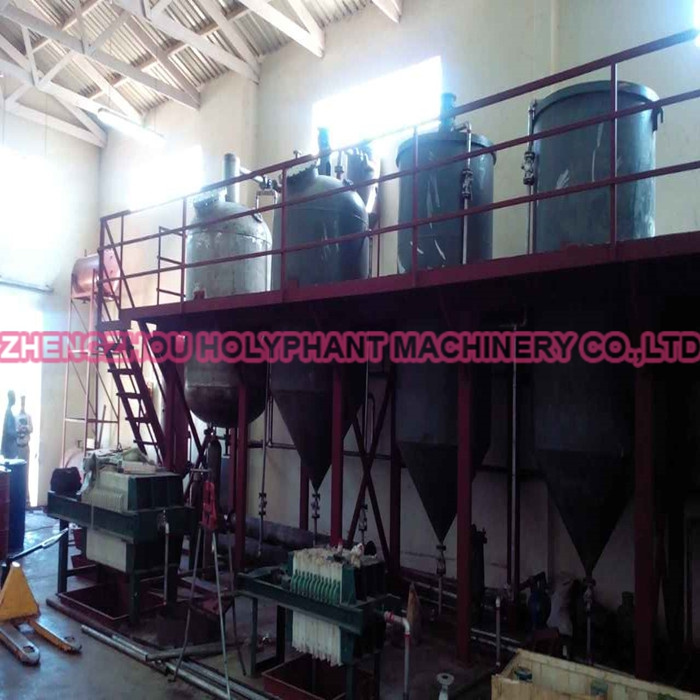

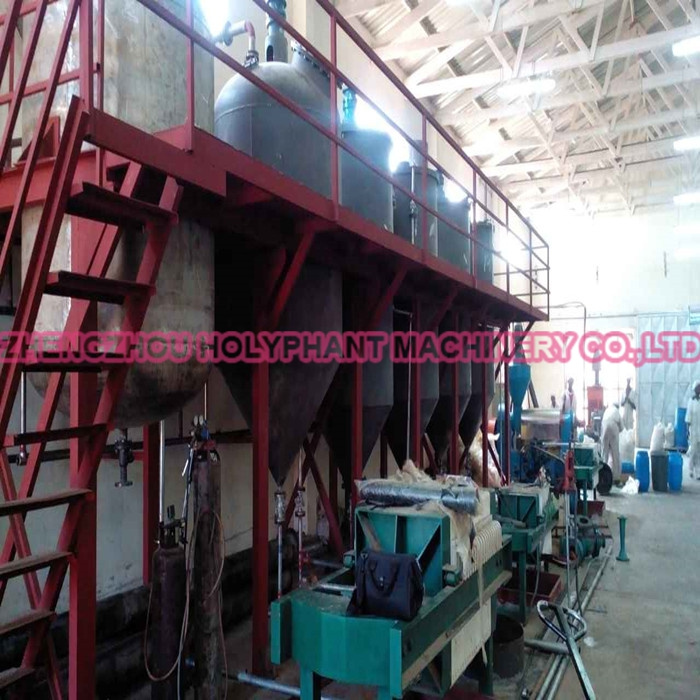

Medium and Large Scale Cooking Oil Production Line
| Price: |
Negotiableset |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
3TD-50TD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plant Name: |
Cooking Oil Production Line |
| Process: |
Neutralizing,Decoloring,Deodoring |
| Process Way: |
Physical or Chemical |
| Installation And Testing: |
Can Be Provided |
| Installation Time: |
1-3months |
| Delivery Port: |
Shanghai,Qingdao,Tianjin |
| Delivery Time: |
Depend on The Plant Capacity |
| Project At Abroad: |
Thailand,Congo,Nigeria,Cameroon |
| Company Type: |
Manufacturer and Factory |
| Warranty Time: |
One Year Exclude Spare Parts |
| Type: |
Refining Plant |
Product Description
Cooking oil production line(5TD-50TD)
Neutralizing Section:
There is 2 methods according to adding different quantity alikali and different oil temperature.
One is weak alkali(10-16 Be) and high oil temperature (75 degrees), who is only used for weak colour and low acidity; The other is low temperature(20 degrees orso ) and density alkali(20 Be orso), whose is used more.
Low temperature(20 degrees orso ) and density alkali(20 Be orso)
Adjust the tempetature of oil to 20-30degrees, then put alkali water of 20-30 Be into oil within 5-10 mins, mixing and rise temperate for 20- 60 mins. When the temperature of oil rise to 60 degrees orso, to stop adding heats and immobility for 6-8 hrs to out of the soap particle.
Weak alkali(10-16 Be) and high oil temperature (75 degrees) (Omission)
Washing by water
After be out of the soap paticle from the under of refiner, then continustly adding the heats to 90degrees, then add some hot water to washing the oil, note the temperature of water is higher for 5-10degrees than oil temperature. Then mixing them for 5 mins, then immobility for 4 hrs, put off the soap water, so for 2-3 times which is confirmed as the oil quality.
Oil washed is added heat to 105 degrees orso, to mix then dehydrate for 1 hour, also directly is pumped into decolorizer vessel for dry for 30 mins in the vacuum condition.
Decolorizer Section:
Pump the oil netralized into decolorizer vessel, samely mixing to rise its temperature to 90 degrees, then mixing for 30 mins, to reduce water to 0.1%, then put a little clay (decoloring media) 2-4 % of total oil, mixing for 30 mins, to reduce the temperature to 70 degrees, then filte the clay with oil filter, to get the oil decolorized.
Deodorizer Section:
Pump the oil decolorized into deodorizer vessel in 755mmHg of vacuum, 240 degrees -260degrees, to distillate for 4hrs wit steams. Then turn off the steams to open the cooler to reduce the temperature to 40-80 degrees, and then check a little oil, if ok to pack it.
De-waxing Section:
The standard Bleached Oil enters into the Crystallizing Tanks after heat exchange and cooling. The oil crystallizes and the crystal grows at design temperature. Crystallization speed should be slow and even and the oil should be agitated at the same time. The crystallized oil is sent to the Filter by screw pump to remove wax. Wax is sent to the Wax Tank and then sent to the Wax Storage Tank. Adopt Refrigerating Machine for refrigeration.
This technology adopts mechanical method to dewaxing from the sunflower oil. It is easily operating and the technology is mastered easily, small occupy area, also its cost is lower; But its operating time is longer is the disadvantage.
The company is a professional manufacturer specialized in production of oil pressing machines under the Ministry of Machinery Industry of the State.
Now we have and develop the main products:
Vegetable oil machine;
Biodiesel oil machine;
Biomass machine;
Flour mill machine and line, etc.
Its products have been well sold to nearly 40 states and areas both home, enjoying a high reputation, which have got the first of the similar products in 1999 and passed ISO9001 in Jan., 2000.
We have the special exporting company, also to find the others'product according to the inquires of clients!
