Product Specifications
| Prod Model: |
LP-24-RJ45-P01, LP-24-RJ45-S01 |
| Contact Diameter × Number: |
8 |
| Rated Current: |
1.5A |
| Contact Resistance: |
<30mΩ |
| Withstanding Voltage(AC.V)1 Minute: |
1000V DC |
| Protection Level: |
IP67 |
| Assembly Wire: |
Crimping Crystal |
| Hardware: |
Zinc Alloy(Pearl Hard Chromium) |
| Connecting Mode: |
Plug/Unplug |
| Housing,The Insulating Parts: |
High Performance Engineering Plastics |
| Copper Needles: |
Contact Terminal |
| Application: |
Industrial Equipment, Transmission Current, Signal |
| Gender: |
Male and Female |
Product Description
LP-24 Series of products, containing RJ45, USB, power, fiber optics and other models with hole size 24MM to meet different needs of industry, and we use Zinc alloy with nickel-plated to guarantee quality and apply with International environment protection of Industrial equipment as well.
LP-24 series with multi-industry extension, USB, telecommunications, signal, fiber optic, HDMI, etc., and customized specialty, pin series, such as: 3pin, power+9pin, signal......
Product Features:

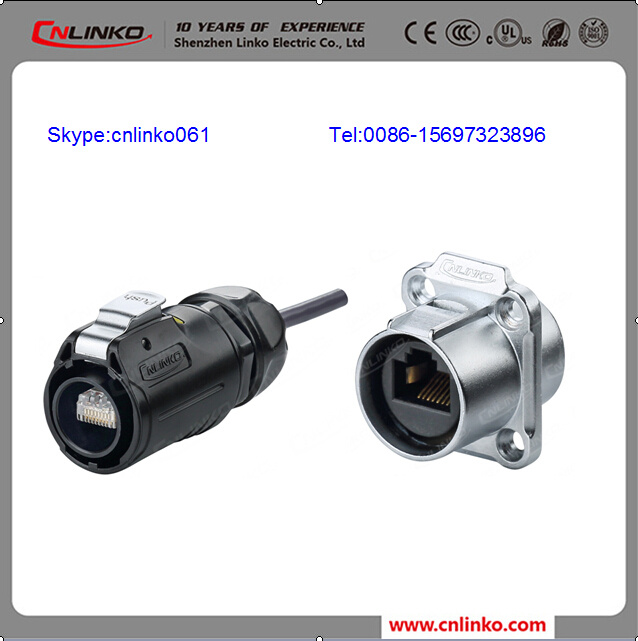

LP-24-RJ45-P01&LP-24-RJ45-S01 |
| Specifications: | |
| Connecting mode: | Plug&unplug |
| Protection level: | IP65/IP67 |
| Cable specification: | 0.15mm2 ~ 0.20mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Current rating(A): | 1.5A |
| Withstand voltage(AC.V)1min: | 1000V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| | |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available
5. supply the best service to you with the contact details below:
Tel:0086-15697323896
FAQ
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.
Q2: What classes do connectors have?
Shape | Frequency | Function |
| circular | high-frequency | for printed board; cabinets; |
| rectangular | low frequency | socket connectors; for audio equipment, power, signal, etc. |
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
