Product Specifications
| Prod Model: |
DH-24-RJ45-P01 DH-24-RJ45-S01 |
| Contact Diameter × Number: |
8pin |
| Rated Current: |
1.5A |
| Withstanding Voltage(AC.V)1 Minute: |
1000V |
| Protection Level: |
IP67 |
| Assembly Wire: |
Crimping Crystal |
| Hardware: |
Zinc Alloy(Pearl Hard Chromium) |
| Waterproof Circle: |
Silica Gel |
| Durability: |
>500 Times |
| Connecting Mode: |
1/4 Bayonet Connector |
| Shape: |
Round RJ45 Signal |
Product Description

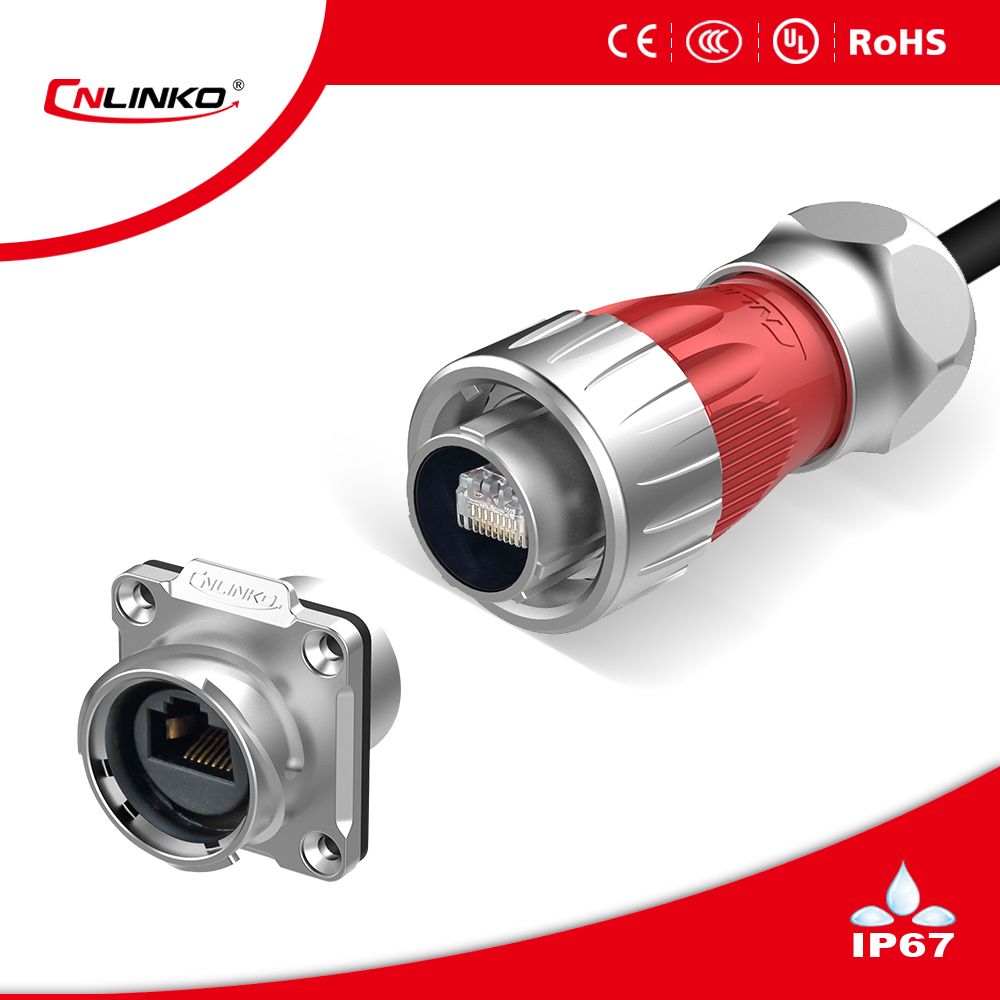

Female RJ45 Plug Waterproof Ethernet Connector
DH-24 RJ45 Series waterproof connetors
1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
7.Different core designing, the products can be widely used for signal, USB, fiber optic and power plug connection.
8. Waterproof IP65/IP67 while connection.
| Data Sheet |
| Connecting mode: | plug/unplug |
| Protection level: | IP65/IP68 |
| Cable specification: | 0.15mm2 ~ 0.20 mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 8 |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | Good Quality Rj45 Connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) |
| - Vibration resistance,impact resistance,stretching resistance |
| - With one hand, can quickly insert or pull out |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
