Product Specifications
| Prod Model: |
1212 |
| Voltage: |
AC220V/50Hz, AC380V/50Hz |
| Color: |
Customized |
| Motor And Driver: |
Stepper Motor and Leadshine Driver |
| Type: |
1325, 1212, 1224, 1218, 1530, 2040....Customized |
Product Description
Product Description
CNC router for wood

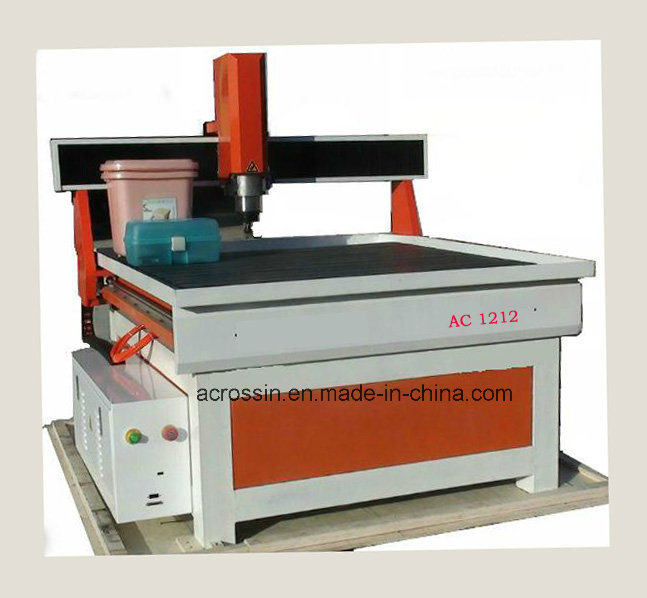

Woodworking equipment rotary and PVC table AC-1212 spindle head CNC router
Our CNC Woodworking Machine has been sold to all over the world. You can give us your requirement, then we will give you a perfect project.
Lathe bed
Product Description
PVC and rotary axis CNC router-product Features:
1. Steel struurectlathe table and 200mm routery axis
2. Imported ball screw ensures stable movement and high accuracy.
3. Watercooling brushless spindle, low noise, vigorous cutting strength and long time mass processing.
4. Special X axis dust-proof system, ensure the good performance of the machine.
5. Broken-point memory ensures the continuity of work when inciddent happens.
Pplications:
1. Advertising: Billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould.
2. Decoration: Acrylic, density board, organic glass, soft metals like aluminum, etc
Technical specifications :
| Model | AC-1212 | optional |
| Working area (X*Y*Z,mm) | 1200*1200*120mm | customization is available |
| Machine structure | steel structure lathe bed and T-slot of sectional material | Square tube lathe bed ,vacuum system |
| Working holding | By clamps | by vacuum |
| Overall dimension | 3100*1810*1750/3100*2060*1850 | |
| Precision(mm) | 0.07 | |
| Position accuracy(mm) | 0.02 | |
| Repeatability(mm) | 0.02 | |
| Lding speed (mm/min) | 15,000 | |
| Working speed(mm/min) | 10,000 | |
| Spindle | 2.2kw/3kw,water-coolin(0-24000rpm) | air-cooling(0-18000rpm),multi-head,specified power |
| Available tools(mm) | φ3.175~φ12.7 | Automatic tool changer |
| Drive system | Stepper motors | Servo motors |
| Working voltage | AC220V±30V,50HZ | AC380V±30V,50HZ for 2.2kw spindle |
| Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng | |
| Control system | NcStudio/DSP Hand-held | DSP |
| Compatible software | Window98/XP/7 G code | |
SAMPLE
Our Services
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2. Customer can come to our factory training.
You will be interested in
Guarantee&Aftersales Service:
(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)User-friendly English manual and video CD for machine using and maintaining
(4)Jinan saicheng CNC Machine Co., Ltd provides free operation training service in SAICHENG factory.
