Product Specifications
| Prod Model: |
JCS1325L |
| Spindle Power Motor: |
5.5kw Atc Water Cooling Spindle |
| Working Mode: |
Japan Yaskawa Servo Motor and Driver |
| Operating System: |
Ncstudio Control System |
| Tool Magazine: |
Linear Type Auto Tool Changer,8 Tools |
| Software: |
Powermill |
| Function: |
Line Engraving |
| Application Material: |
Marble |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

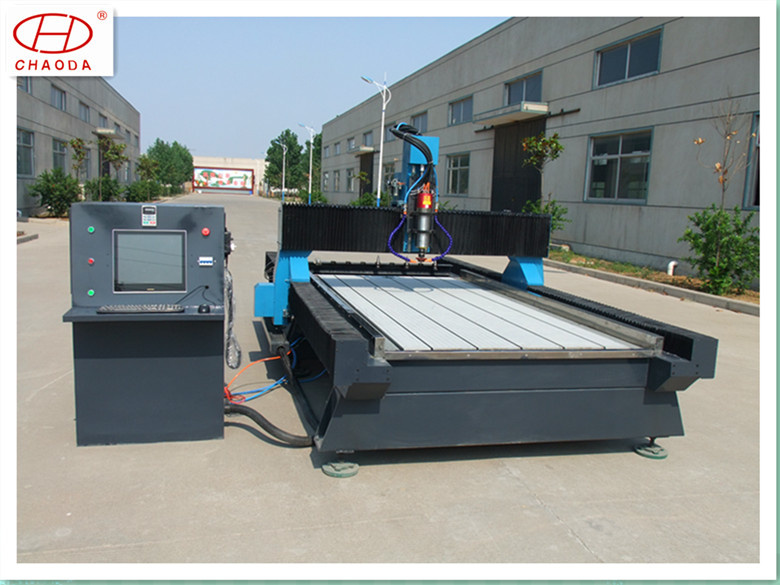

Low cost!! 3d cnc line engraving router for stone granite
Technical details of 3d cnc line engraving router for stone granite :
| 1 | X, Y, Z working area | 1600*3050*200mm | | 2 | Lathe bed structure | Steel T-extrusion | | 3 | Table surface | Stainless steel with PVC,water tank | | 4 | X structure | Rack and pinion,HIWIN linear square rail | | 5 | Y structure | Rack and pinion,HIWIN linear square rail
Y-double motor drive | | 6 | Z structure | Ball screw,HIWIN linear square rail | | 7 | Resolution | ±0.03 | | 8 | Reposition accuracy | ±0.05mm | | 9 | Max.operating speed | 0-30000mm/min | | 10 | Max.working speed | 0-15000mm/min | | 11 | Spindle power motor | 5.5kw atc water cooling spindle | | 12 | Spindle speed | 0-24000 RPM | | 13 | Diameter of tools | 3.175-20mm | | 14 | Collet size | ER32 | | 15 | Working mode | Big power servo motor and driver | | 16 | Operating system | Ncstudio control system | | 17 | Tool magazine | Linear type auto tool changer,8 tools | | 18 | Command code | G code(*uoo,*nc,*mmg, *plt) | | 19 | Software | Powermill | | 20 | Working voltage | 3 phase AC380V 50HZ/60Hz | | 21 | Running Circumstance | Temperature: 0ºC~45ºC | | Relative humidity: 30%~75% | | 22 | Net weight | 2500kg |
|
| Spare part | 1Software CD,1Data/Power cable,12Tools,2Wrench,8Clampls,2Water tank |
| Packing | Standard wooden case or other |
| Delivery time | 20-30days |
| Payment term | 50%T/T advance,50% balance before shipment |
| Warranty | Main parts free charge for one year,offer lifetime online and phone service |
| Application | 3D engraving, line engraving, cutting, edge inversing, drilling onArtificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, wood,pvc,eps foam, aluminum composite panel, aluminum block, copper and other |
Application:
2D engraving, 3D engraving, line engraving, cutting, edge inversing, drilling on
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, wood,pvc,eps foam, aluminum composite panel, aluminum block, copper and other metal material so on
Unique characteristic
This machine not only can engrave,cut stones,metal material,but also can polish stones and metal material.
it can hold different kinds of polish wheels to make kitchen top edges,water sink,sanitary ware.marble stairs…,widely used in kitchen top industry, sanitary ware industry,decoration industry,mould industry and construction industry.
