Low Cost! ! Jcs1325L Atc Marble CNC Cutting Router Engraving Machine
| Price: |
Negotiableset |
| Min Order: |
1set |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
JCS1325L |
| Spindle Power Motor: |
5.5kw Atc Water Cooling Spindle |
| Working Mode: |
Japan Yaskawa Servo Motor and Driver |
| Operating System: |
Ncstudio Control System |
| Tool Magazine: |
Linear Type Auto Tool Changer,8 Tools |
| Software: |
Powermill |
| Function: |
Line Engraving |
| Application Material: |
Marble |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

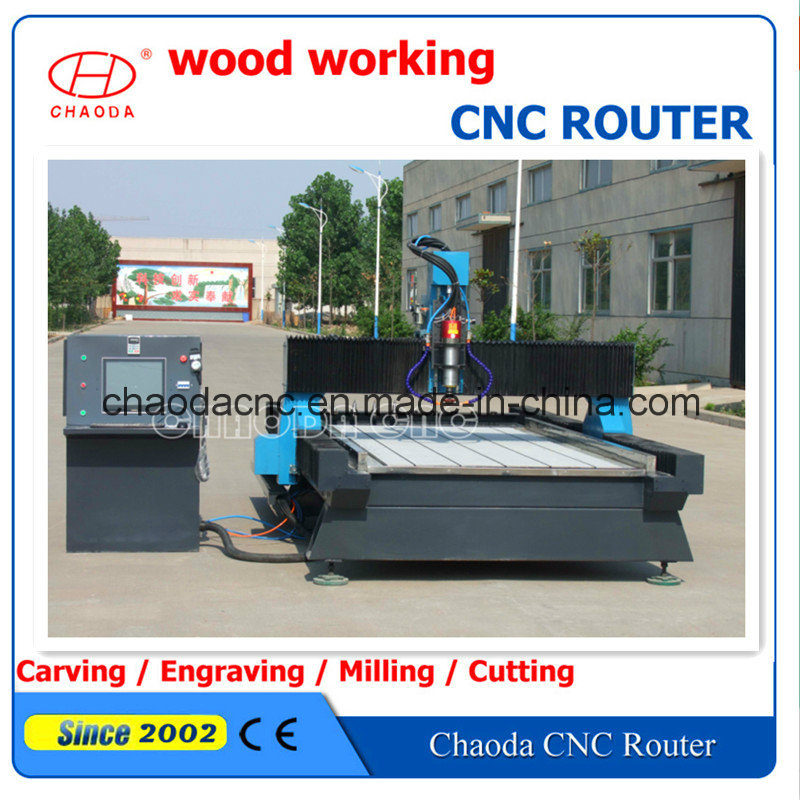

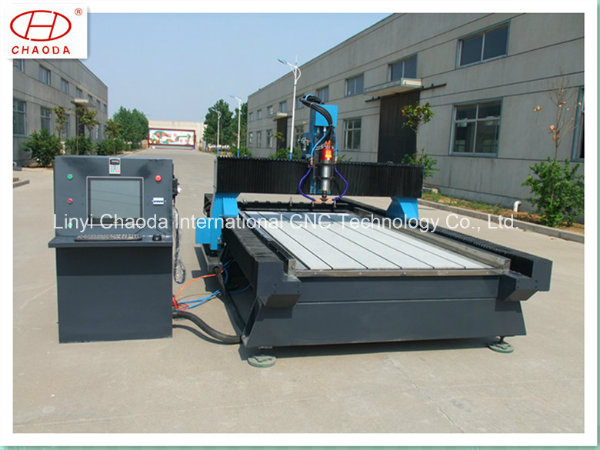

Low cost!! JCS1325L Atc Marble CNC Cutting Router engraving machine
Technical details of Atc Marble CNC Cutting Router engraving machine:| 1 | X, Y, Z working area | 1600*3050*200mm | | 2 | Lathe bed structure | Steel T-extrusion | | 3 | Table surface | Stainless steel with PVC,water tank | | 4 | X structure | Rack and pinion,HIWIN linear square rail | | 5 | Y structure | Rack and pinion,HIWIN linear square rail
Y-double motor drive | | 6 | Z structure | Ball screw,HIWIN linear square rail | | 7 | Resolution | ±0.03 | | 8 | Reposition accuracy | ±0.05mm | | 9 | Max.operating speed | 0-30000mm/min | | 10 | Max.working speed | 0-15000mm/min | | 11 | Spindle power motor | 5.5kw atc water cooling spindle | | 12 | Spindle speed | 0-24000 RPM | | 13 | Diameter of tools | 3.175-20mm | | 14 | Collet size | ER32 | | 15 | Working mode | Big power servo motor and driver | | 16 | Operating system | Ncstudio control system | | 17 | Tool magazine | Linear type auto tool changer,8 tools | | 18 | Command code | G code(*uoo,*nc,*mmg, *plt) | | 19 | Software | Powermill | | 20 | Working voltage | 3 phase AC380V 50HZ/60Hz | | 21 | Running Circumstance | Temperature: 0ºC~45ºC | | Relative humidity: 30%~75% | | 22 | Net weight | 2500kg |
|
| Spare part | 1Software CD,1Data/Power cable,12Tools,2Wrench,8Clampls,2Water tank |
| Packing | Standard wooden case or other |
| Delivery time | 20-30days |
| Payment term | 50%T/T advance,50% balance before shipment |
| Warranty | Main parts free charge for one year,offer lifetime online and phone service |
| Application | 3D engraving, line engraving, cutting, edge inversing, drilling onArtificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, wood,pvc,eps foam, aluminum composite panel, aluminum block, copper and other |
Samples of Atc Marble CNC Cutting Router engraving machine:

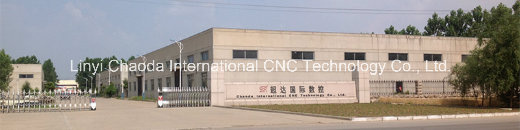

Factory:
Customer testing and free traning:
A Factory You Can Trust:
Located in Linyi City, Shandong Province, Linyi CHAODA International CNC Technology Co., Ltd is a professional manufacturer of CNC Router Machine, Laser Engraving and Cutting Machine, Plasma Metal Cutting Machine, 3D Scanner, vacuum Forming Machine, etc.
Our factory was established in 2002 and covers 40000 Square meters.
We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. Our machines have won praise from customers worldwide and with very good reputation in this field.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each machine can meet quality requirements of customers. Besides, all of our machines have been strictly inspected before shipment. Our machines have attained CE certificate with Quality Test report & BV certification.
Your satisfaction, Our eternal pursuit!
Our aim is to help customers realize their goals. We are making great efforts to achieve mutual benefit relationship and sincerely hope to cooperate with you!
