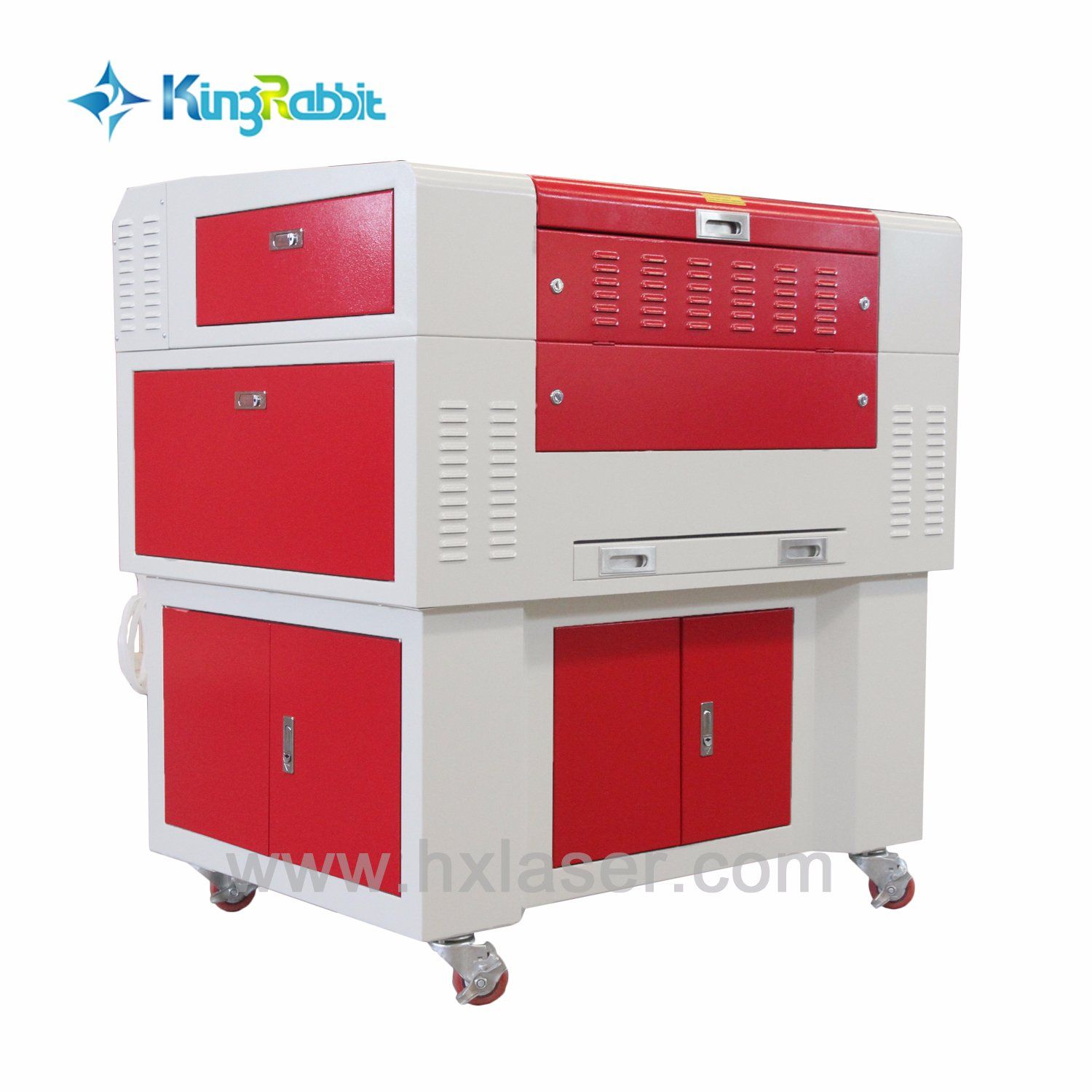

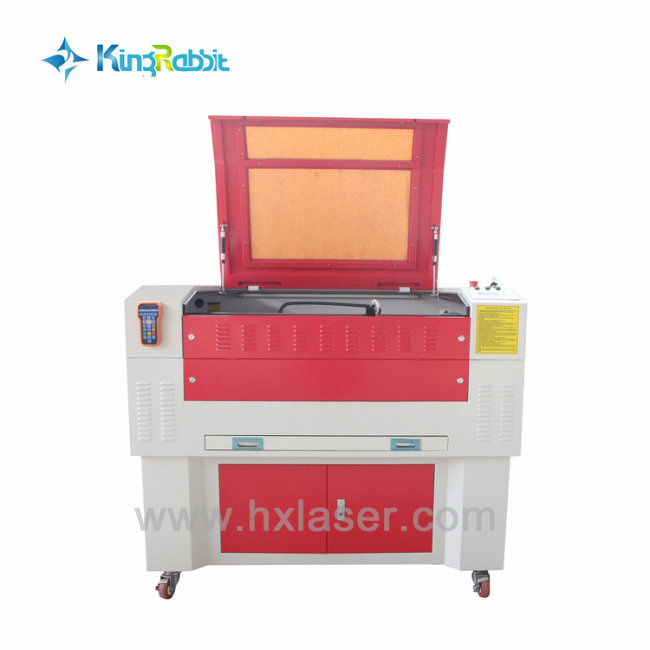

Laser Engraving Machine (RABBIT HX-6090SE)

Product Specifications

Prod Model:	RABBIT HX-6090SE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	High Power
Drive Type:	Stepper Drive
Engraving Machine Type:	Laser Engraving Machine
Control:	CNC
Current:	AC
Laser Type:	CO2
Usage:	Advertising
Certification:	SGS, Ce, ISO 9001

Product Description

Place of Origin: China
Brand Name: Rabbit
Model No: Rabbit HX-6090SE
Certification: CE, FDA

Terms of Payment: T/T in advance
Supply Ability: 2, 000PCS/year
Minimum Order: 1PC
Delivery Lead Time: 25 days after receiving T/T

Detailed Product Description

Features:
1) New software:
A) Realizes seamless connection with BMP, PLT and various graphic processing software such as Photoshop, AutoCAD and CorelDraw
B) Has direct original graph output function and meets site design requirements of users
C) Can define carving sequence freely and realize all or partial output for one time easily
2) Carving materials: Normal non-metal materials such as organic glass, wood, leather, cloth, plastic, rubber plate for printing, double-color plate, glass, synthetic crystal, jean, cardboard, dense plate and marble
3) Carving performances:
A) High speed cutting and smooth operation
B) Isn't limited by work efficiency of traditional laser processing
C) Uses perfect mechanic combination so as to ensure overall stability of equipment and make curve cutting without any saw tooth, shake or noise
4) Functions:
A) Supports array output and fixed point output
B) Quicker speed and can greatly improve working efficiency
C) Newly adds 3600 carving slope function and has more powerful functions
D) Large power smoke emission system
E) Large power water cooling system
F) Special control software
G) Air pump and automatic water cooler (optional)
H) No-water alarm
I) Cooling water display
J) Automatic alarm and cutting off the operation of laser during circular water failure to protect laser
K) Automatic smoke emission
L) Smoke emission system starts automatically when carving machine operates
M) Smoke emission system closes automatically when carving machine finishes
N) Elevation platform
O) Electric controlled automatic elevation platform has easy and flexible operation



Type	HX-4060SE		HX-6090SE	HX-1290SE		HX-1490SE	HX-1610SE	HX-1613SE
Laser power:	40w		60w	80w/100w/120w/150w
Engraving Area (mm)	400 x 600		600 x 900	1200 x 900	1400x900		1600x1000	1600x1300
Gross power	1200w		1200w	1600w/1800w/2000w
Laser type:	CO2 Laser tube
Cutting depth:	acryl 0-20mm
Engraving speed :	0-1000mm/s
Cutting speed:	0-600mm/s
Resetting positioning accuracy:	<0.01mm
Maximum forming character:	English:1.5 x 1.5mm
Power supply:	220V±10% 50HZ or 110V±10% 60HZ
Software supported:	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported:	PLT, DXF, BMP, JPG, GIF, PGN, TIF
Engraver for Curve surfaces:	we can provide rotary system so as to engrave on curse surfaces
Water Cooling:	Yes
Maximum Height of  Materials to Engrave:	280mm(by motor)
Assistant Equipment:	Water pump	Exhaust Fan			Aluminum alloy worktable			Air compressor
Optional Spare Parts:	RF Laser Tube	Rotary System			Cooling water system			Red dot pointer
Recommended Spare Parts/Consumables	Laser Tube and Lens
