Price: | US $ 1500-3000/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union |
Prod Model: | QL-1280 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engraving Machine Type: | Laser Engraving Machine |
Control: | CNC |
Current: | AC |
Laser Type: | CO2 |
Usage: | Wood Bamboo Paper Lather Shell Acrylic etc |
Working Area: | 120cm*80cm / 47in*31in (L*W) |
Laser Power: | 60W/80W/100W/130W/150W/180W |
Engraving Speed: | 0-6000cm/Min |
Power Supply: | 220V/50Hz, 110V/60Hz |
Graphic Format Supported: | BMP, Plt, Dst, Dxf, Ai |
Performance Features
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen
6) It can also be made according to customer's demands

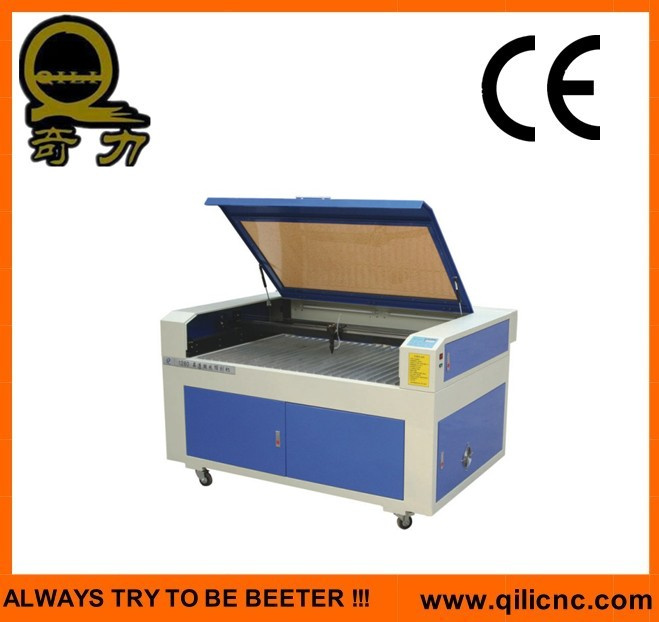

Model QL-1280
Working area 120cm*80cm / 47in*31in (L*W)
Laser power 80W
Laser type CO2 sealed laser tube, water-cooled
Engraving speed 0-6000cm/min
Power supply 220V/50HZ, 110V/60HZ
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported CorelDraw, PhotoShop, AutoCAD, TAJIMA
Driving system Stepper motor
Equipment Dimension 165cm*115cm*97cm/65in*45in*38in (L*W*H)
Packing Dimension 176in*125in*120in/69in*49in*47in (L*W*H)
Net Weight 350kg
Optional parts Up-down worktable, USB Port, Red light pointer, Autofocus
Material Cut Engrave
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
Neopren® YesYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes
(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)English manual and video CD for machine using and maintaining
(4)Jinan Hongye CNC Machine Co., Ltd provides free operation training service in Hongye factory.
