Product Specifications
| Prod Model: |
AC-1325 |
| Electrical Equipment: |
Schneider |
| Spindle: |
9kw (Ltaly) |
| Process Size: |
2440*1240*200mm |
| Table Size: |
2500*1250mm |
| Transmission: |
X/Y/Z Ball Screw |
| Table Structure: |
Double Surface Vacuum Adsorption |
| Max Spindle Speed: |
24000r/Min |
| Max Speed: |
45m/Min |
| Max Working Speed: |
25m/Min |
| Knife Quantity: |
20 PCS |
| Certification: |
SGS |
Product Description
technical parameter | table size | 2500*1250mm |
| transmission | X/Y/Z ball screw |
| table structure | double surface vacuum adsorption |
| spindle power | 9KW (Ltaly) |
| Max spindle speed | 24000r/min |
| Max speed | 45m/min |
| Max working speed | 25m/min |
| Working holding | by vacuum |
| Bamboo hat type | servo |
| knife quantity | 20 pcs |
| drive system | YASKAWA |
| working voltage | AC380/3PH/50HZ |
| operating system | taiwan SYNTEC |
| feeding method | automatic |
| weight | 4800KG |

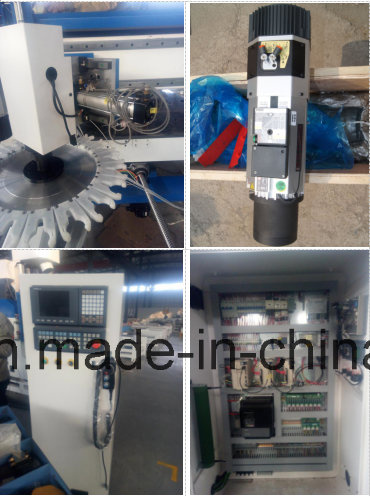

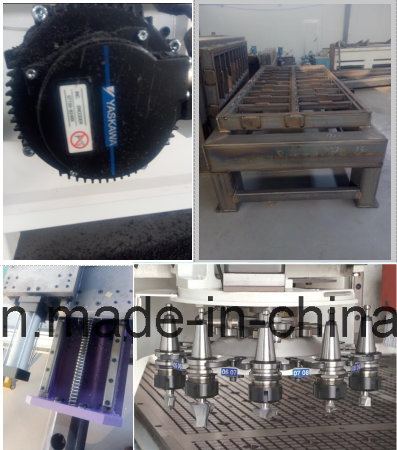

main accessories
Applicable industry and materials1. Woodworking: all kinds of doors, windows, cabinets, wooden craft, paint doors, screens, process window, wave board processing and other furniture, wooden processing.2. Advertising industry: advertising signs, labeling, advertising material cutting, plastic molding, LED neon advertising and other materials produced decorative products3. Craft industry: a variety of exquisite designs and text engraving on wood, bamboo, artificial marble, organic board, color plates, crystal and other materials. samples
Products features:
1.heavy-duty thick -walled square tube lathe in good rigidity,is capable of large workload ,maintaining solid shape and non-deformed .
2.High -end CNC control system from Taiwan,achieves automated intelligent control on functions,such as work area protection ,processing cross-border protection auto working speed.off-line operation of multiple levels of 3d processing is capable.
3.Advanced documents pre-processing functions ensures speed and accuracy of operation.
4.Control pannel of 7'Led,multi-partition keyboard provide convenience and independence for user.
5.Automatic tool changer saves time for manual tool changing to improve efficiency.
6.Servo system from Japan is the core of drive system,with a large torque and complete security system.
Application:
Wood products processing : sewing machine table ,electrical counter table,sports equipment.
Furniture decoration industry: al large area flat plate engraving ,wood ,panel furniture carving ,wood cabinet doors carving.
Musical instrument industry: instrument three-dimensional surface engraving ,shape cutting
Electronic industry: circuit board,insulation material,LED display screen.
FAQ:
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 24 months. 2) 24 hours technical support by phone, email or MSN, skype etc.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
