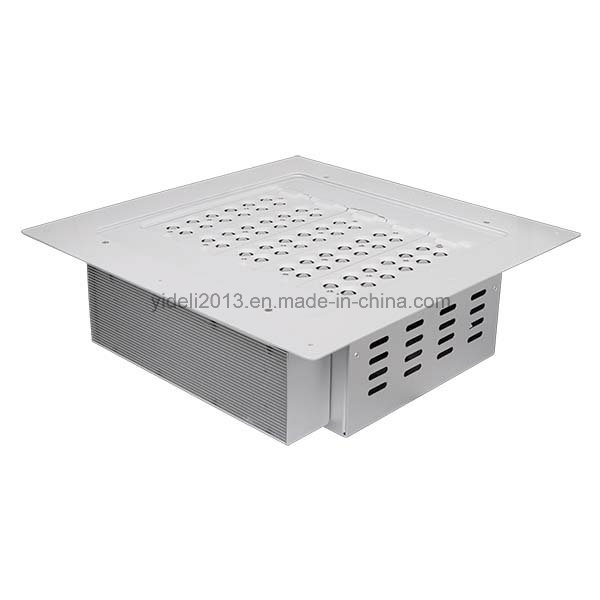

IP66 110lm/W 100 Watt LED Canopy Light Fixtures Replace 200W Gas Station Lighting

Product Specifications

Prod Model:	YDL-100W gas station light
Waterproof IP65 Outdoor:	LED Tunnel Flood Projector Light Bulbs 200W
LED Chip:	Epistar/CREE/Bridgelux
Wide Beam Angle:	120degree
Delivery Time:	3-7working Day
Lumens Flux:	90lm/W
Emitting Color:	R/G/B/Ww/Pw/RGB
OEM/ODM:	Acceptable
Color Temperature:	Pure White
Lamp Body Material:	Aluminum
IP Rating:	IP65
Beam Angle:	90??
Housing Color:	black
Lifespan:	10000 hours-50000 hours
Warranty:	5 Years
Certification:	VDE
Voltage:	220V
With Light Source:	With Light Source

Product Description

 IP66 110LM/W 100 watt led canopy light fixtures replace 200W gas station lighting

Main Features of led tunnel lighting manufacturers

1. 80-160w are availabe;
2. High grade components, such as LED from Cree, Bridgelux,  Osram;
3. LED Driver: External Meanwell driver
4. Warm and cold color temperature are available
5. Quick and easy installation to minimize retrofit costs.
6. Patented heat dissipation technology for radiator;
7. Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
8. Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
9.Closed corrosion-proof silicone ring for dustproof and waterproof
10.Beam angle: 25,45,60,90,100 degree. Dustproof cover, or Crystal PC reflector available
11.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
12.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
13.Energy saving: saving more than 80%
14.Eco-friendly:  No lead, mercury, UV interference
15.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
16.Certificate: CE,RoHS,SAA,PSE,IP65
17.Warranty: 5 years
Good heat dissipation
Adopt the anodic oxidation , high hardness, high temperature resistance, corrosion resistance, high thermal conductivity; absolutely elegant and extraordinary .
MIC patent modular design of the heat sink aluminum fins, optimize heat dissipation channel, times extending the heat dissipation area, quickly transfer the heat from the light

Main Parameters of led tunnel lighting manufacturers



Model No.	YDL-GS 100W  Dimension:   LEDS modular
Equivalent	400w HPS
LED Light Source	56s Cree LED XTE, Bridgelux LED
LED Luminous Efficiency	>100 lm/w
Lamp Total Power	40W
Power Efficiency	>84 %
Lamp Rated Luminous Flux (LED)	>4000lm
Lamp Rated Luminous Efficiency	>110lm/w
Color Rendering Index(CRI)	Ra>70 (upgradeable to Ra90)
Color Temperature	Cool white: 5700K-7000K
	Pure white: 4000-4500K
	Warm white: 2600-3700K
Beam Angle	25, 45, 60, 90, 110 °
Light Distribution Curve(Beam Pattern)	Asymmetric/ Rectangular Beam
Input Voltage	AC 100-240V
Frequency Range	50-60Hz
Power Factor(PF)	>0.9
Total Harmonic Distortion(THD)	< 10%
Storage Temperature	-40ºC--+80ºC
Working Environment	-30ºC--+50ºC ; 10%-95%RH
Junction Temperature(Tj)	60ºC ± 10%(ta=25ºC)
Light Body and Lampshade Material	Aluminum Alloy and ASA / PC
Working Lifetime	> 50,000hrs

Note:  For this model tunnel light, 120w or 200w is also available


No.	Power (W)	LED Qty	Module Qty	Luminous Efficacy	Luminous Flux	CRI (Ra>)	Junction Temp (Ta=40ºC)	Max Current (constant) (A)
YDL-80WiR	80	28	2	115	9200	80	92.4	0.9
YDL-120WiR	120	42	3	115	13800	80	92.4	1.35
YDL-160WiR	160	56	4	115	18400	80	92.4	1.8

Application of led tunnel lighting manufacturers

Widely used in tunnels, the House of lighting, single building, historical buildings exterior lighting, specialized facilities, indoor local lighting, green landscape lighting, billboard, medical and cultural lighting, bars, discos and other entertainment lighting, etc.

 Packaging Information of led tunnel lighting manufacturers

Net Weight	5.5kg
Gross Weight	6.8kg
Qty/Carton	1pcs
Package Size(cm)	50*35*12cm
