Product Specifications

Prod Model:	YDL-led tunnel light 200W
Waterproof IP65 Outdoor:	LED Tunnel Flood Projector Light Bulbs 200W
LED Chip:	Epistar/CREE/Bridgelux
Lens Beam Angle:	30, 60, 90, 60X150
Delivery Time:	3-7working Day
Lumens Flux:	130lm/W
Application:	Roads, Railways, Subways and Other Underground Lig
OEM/ODM:	Acceptable
Cable Output:	20cm 50cm 100cm
Color Temperature:	Pure White
Lamp Body Material:	Aluminum Alloy
IP Rating:	IP65
Beam Angle:	90??
Housing Color:	black
Lifespan:	10000 hours-50000 hours
Warranty:	5 Years
Certification:	VDE
Voltage:	220V
With Light Source:	With Light Source

Product Description

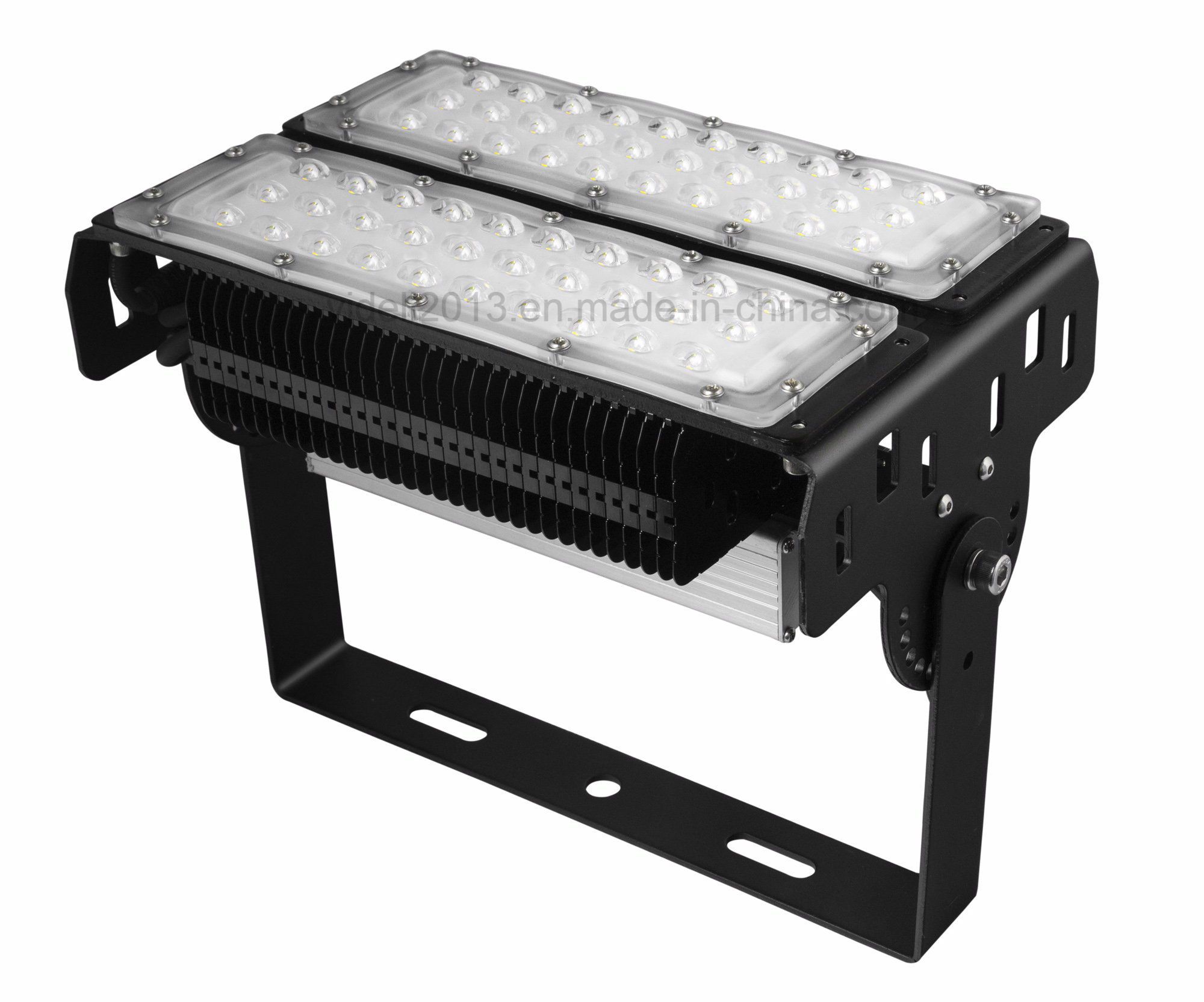

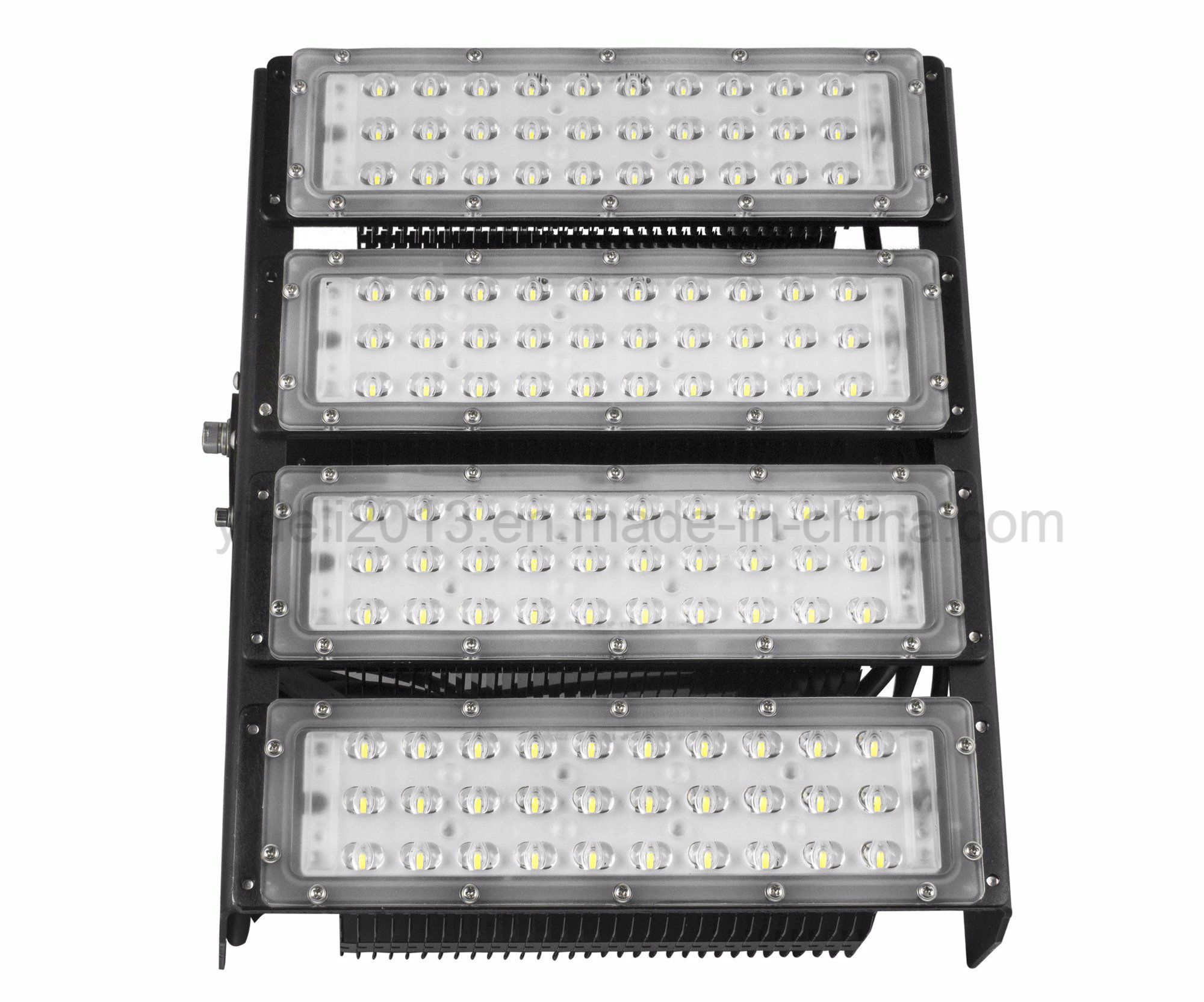

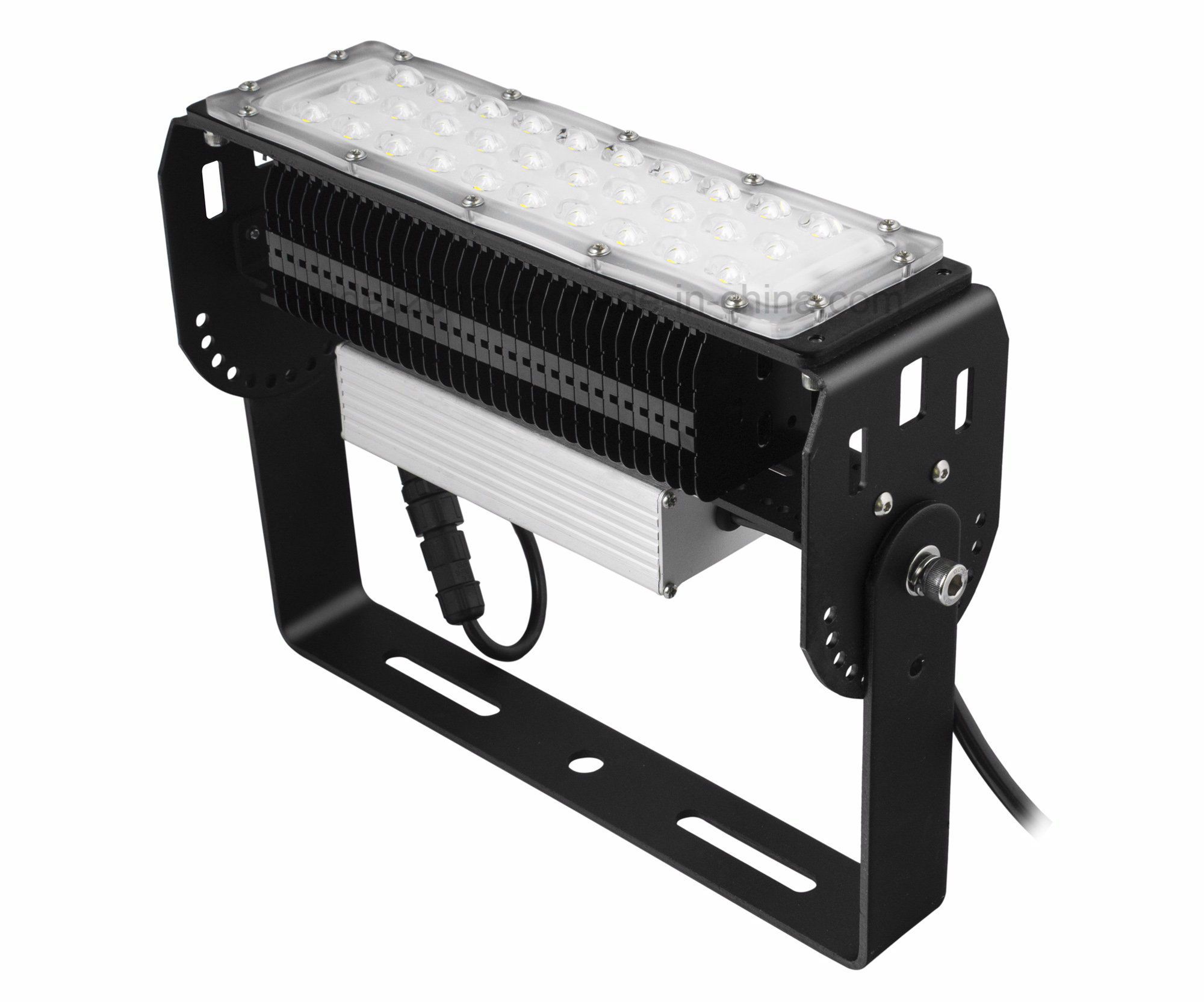

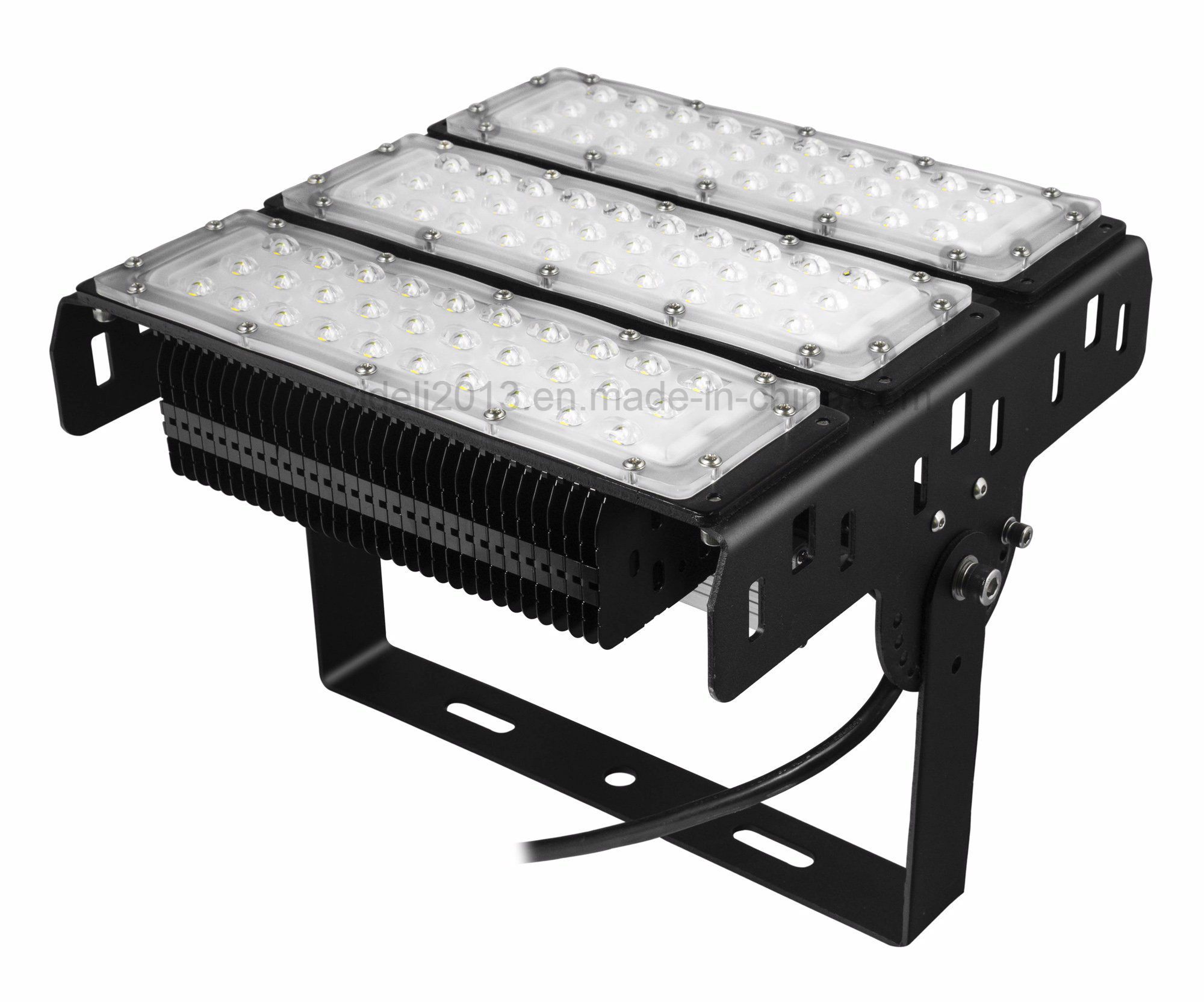

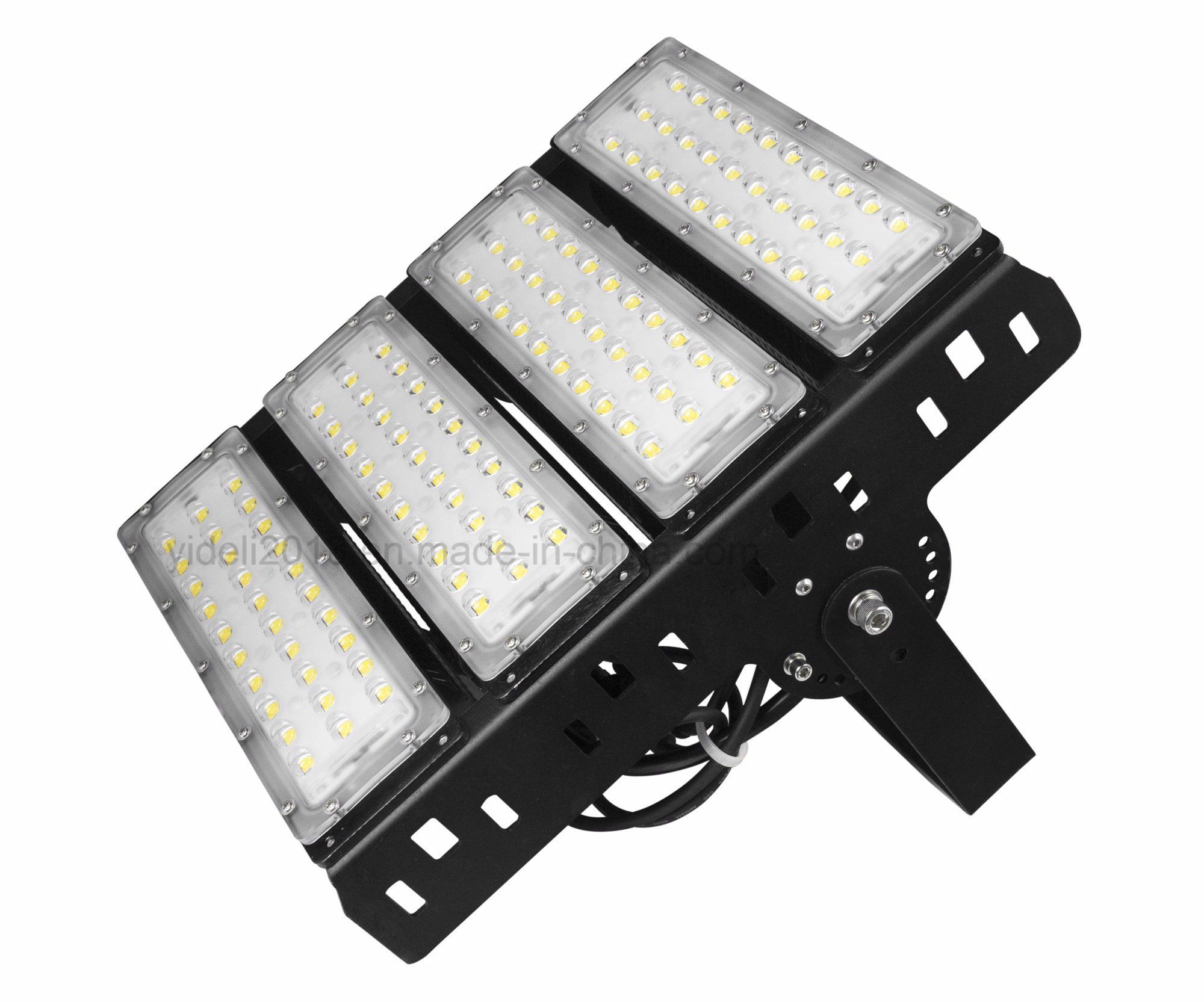

IP65 whole sale led tunnel lighting from china led tunnel light supplier 200W

1. 50-360w are availabe; 400W Meanwell driver
2. High grade components, such as LED from Cree, Bridgelux, Osram;
3. LED Driver: External Meanwell driver
4. Warm and cold color temperature are available
5. Quick and easy installation to minimize retrofit costs.
6. Patented heat dissipation technology for radiator;
7. Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
8. Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
9.Closed corrosion-proof silicone ring for dustproof and waterproof
10.Beam angle: 25,45,60,90,100 degree. Dustproof cover, or Crystal PC reflector available
11.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
12.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
13.Energy saving: saving more than 80%
14.Eco-friendly:  No lead, mercury, UV interference
15.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
16.Certificate: CE,RoHS,SAA,PSE,IP65
17.Warranty: 5 years
Good heat dissipation
Adopt the anodic oxidation , high hardness, high temperature resistance, corrosion resistance, high thermal conductivity; absolutely elegant and extraordinary .
MIC patent modular design of the heat sink aluminum fins, optimize heat dissipation channel, times extending the heat dissipation area, quickly transfer the heat from the light

Main Parameters of led tunnel lighting manufacturers

Aluminum Module Lighting 150W 400W 300W 200W 100W 50 Watts Dimmable outdoor tunnel ighting LED Flood Light

Specifications:

Product description: 100W dimmable LED tunnel flood light
Item no.:		YDL-TL-200W 192pcs 3030 SMD LEDS
Light	LED Type	Lumileds SMD3030
	Luminous Efficiency	100Lm/W-130LM/W
	CCT(K)	3000K / 4000K / 5000K / 5700K / 6500K
	CRI	> Ra80
	Power Supply	Meanwell /  SOSEN UL TUV CE Driver
	Lifespan (Hrs)	> 50,000Hours
Electricity	Input Voltage(V)	100-277VAC 50/60Hz
	Dimming function	Three in one(1-10V,PWM,Resistance)
	Power Consumption(W)	400W/300W/200W/150W/100W/50W±2W
	Power Factor	> 0.95
	Beam angle	60° / 90° / 120° /  60 x 150°
	Replacement	Metal Halide / HPS / HID / Halogen lamps
Structure	Materials	Fin Aluminum housing + PC lens
	Base(Standard Design)	3 cores outlet
	Protection Grade	IP65 waterproof
Certificate	CE RoHS 5 years warranty



Product Size:	L 315*W:373*H130
Package Size:	1PCS/CTN   Carton size: 390*340*160
Driver	CE  /Taiwan Meanwell







LED tunnel flood light Features:
1-10V,PWM signal and Resistance dimmalbe function;
Black Fin aluminum housing, lighter and compact heat sink, saving freight cost & easier installation;
Super bright: 130Lm/W high lumens efficiency; the best energy saving;
With  Lumileds 3030 LED, Ra80;
External meanwell driver, offer 5 years warranty, remarkable performance, top quality;
IP65 waterproof for indoor / outdoor application

Note:  For this model tunnel light, 120w or 200w is also available

Application of led tunnel lighting manufacturers

Widely used in tunnels, the House of lighting, single building, historical buildings exterior lighting, specialized facilities, indoor local lighting, green landscape lighting, billboard, medical and cultural lighting, bars, discos and other entertainment lighting, etc.


About Quality Warranty

 How about the warranty? We offer 3 to 5 years warranty for our products.
 1 All products are gone through strict test by our experienced QC before shipment. But there may be some unpredictable problem, We'll send you parts repair or send you a new one to replace.
 2. Quality guarantee is based on storing, installing, operating and maintaining correctly in the normal operation condition.
 3. It is not included in our maintaining range when installing inappropriately, breaking the operating rules, and leading to the products damaging.
 4. Our company will maintain the right to either repair, parts replacing, or products exchange during the quality warranty period.
