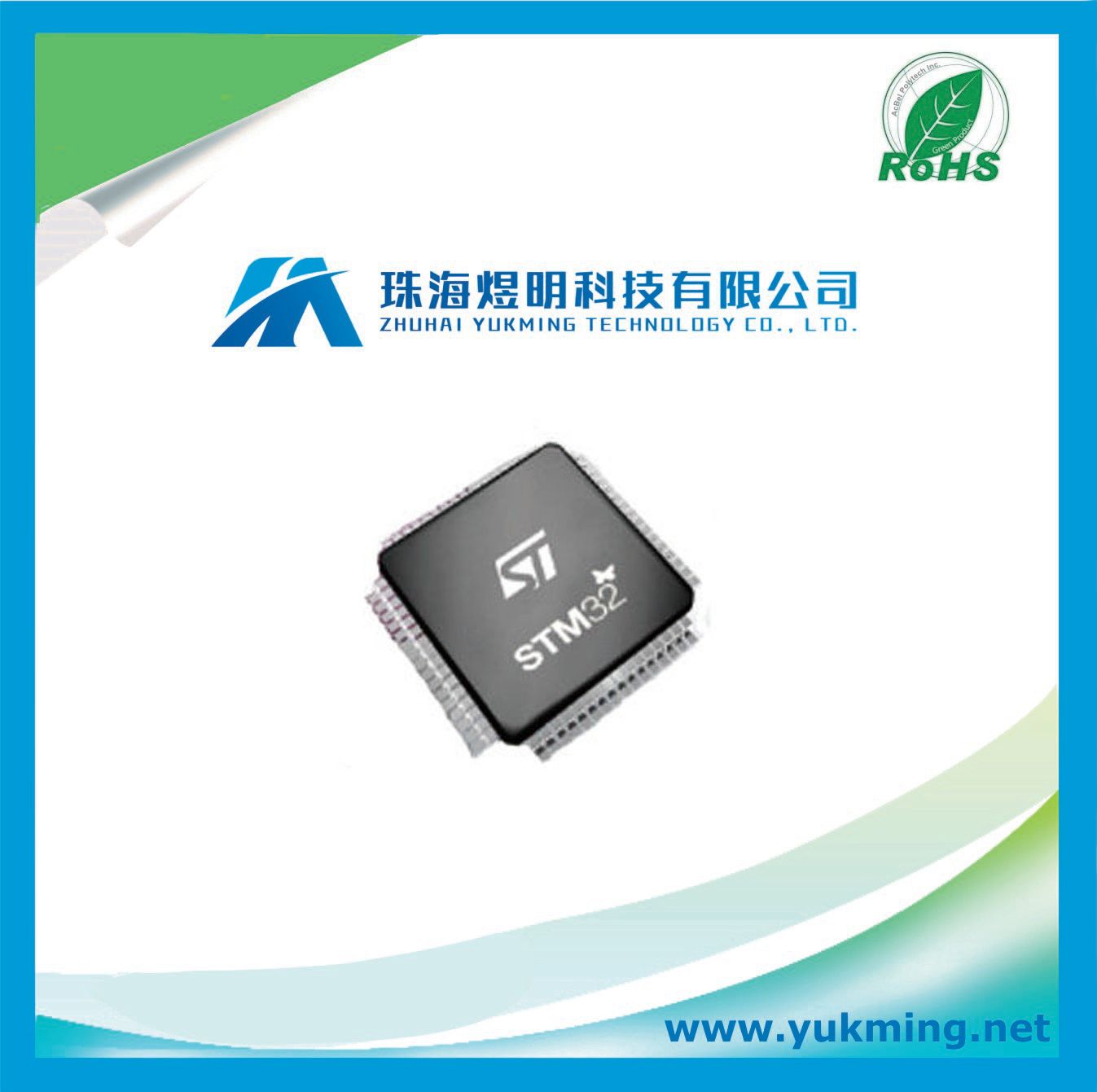

Integrated Circuit Stm32f303vct6 of MCU+Fpu IC
| Price: |
US $ 8.8/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Product Specifications
| Prod Model: |
STM32F303VCT6 |
| Core: |
Arm Cortex M4 |
| Operation Supply Voltage: |
2 V to 3.6 V |
| Max Operation Temperature: |
85 |
Product Description
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express |
Features• Core: ARM® Cortex™-M4 32-bit CPU withFPU (72 MHz max), single-cycle multiplicationand HW division, 90 DMIPS(from CCM)/1.25 DMIPS/MHz (Dhrystone 2.1), DSPinstruction and MPU (memory protection unit)• Operating conditions:- VDD, VDDA voltage range: 2.0 V to 3.6 V• Memories- 128 to 256 Kbytes of Flash memory- Up to 40 Kbytes of SRAM, with HW paritycheck implemented on the first 16 Kbytes.- Routine booster: 8 Kbytes of SRAM oninstruction and data bus, with HW paritycheck (CCM)• CRC calculation unit• Reset and supply management- Power-on/Power down reset (POR/PDR)- Programmable voltage detector (PVD)- Low power modes: Sleep, Stop and Standby- VBAT supply for RTC and backup registers• Clock management- 4 to 32 MHz crystal oscillator- 32 kHz oscillator for RTC with calibration- Internal 8 MHz RC with x 16 PLL option- Internal 40 kHz oscillator• Up to 87 fast I/Os- All mappable on external interrupt vectors- Several 5 V-tolerant• 12-channel DMA controller• Up to four ADC 0.20 µS (up to 39 channels)with selectable resolution of 12/10/8/6 bits, 0 to3.6 V conversion range, separate analogsupply from 2 to 3.6 V• Up to two 12-bit DAC channels with analogsupply from 2.4 to 3.6 V• Seven fast rail-to-rail analog comparators withanalog supply from 2 to 3.6 V• Up to four operational amplifiers that can beused in PGA mode, all terminal accessible withanalog supply from 2.4 to 3.6 V• Up to 24 capacitive sensing channels supportingtouchkey, linear and rotary touch sensors• Up to 13 timers- One 32-bit timer and two 16-bit timers withup to 4 IC/OC/PWM or pulse counter andquadrature (incremental) encoder input- Up to two 16-bit 6-channel advanced-controltimers, with up to 6 PWM channels,deadtime generation and emergency stop- One 16-bit timer with 2 IC/OCs, 1OCN/PWM, deadtime generation andemergency stop- Two 16-bit timers with IC/OC/OCN/PWM,deadtime generation and emergency stop- Two watchdog timers (independent, window)- SysTick timer: 24-bit downcounter- Up to two 16-bit basic timers to drive theDAC• Calendar RTC with Alarm, periodic wakeupfrom Stop/Standby• Communication interfaces- CAN interface (2.0B Active)- Two I2C Fast mode plus (1 Mbit/s) with 20mA current sink, SMBus/PMBus, wakeupfrom STOP- Up to five USART/UARTs (ISO 7816interface, LIN, IrDA, modem control)- Up to three SPIs, two with multiplexedhalf/full duplex I2S interface, 4 to 16programmable bit frame- USB 2.0 full speed interface- Infrared Transmitter• Serial wire debug, Cortex-M4 with FPU ETM,JTAG• 96-bit unique ID
