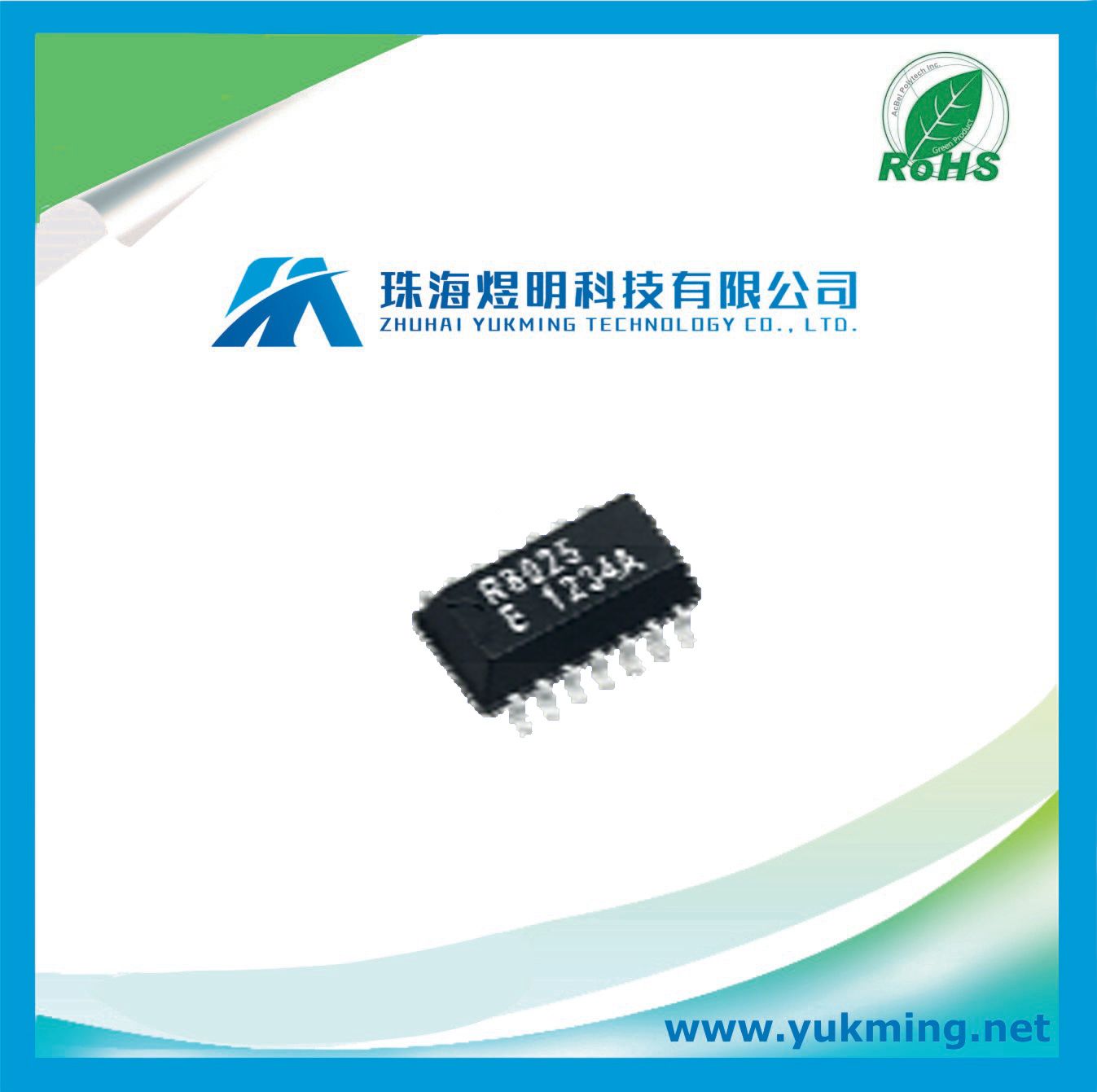

Integrated Circuit Rx-8025saac of Real Time Clock Module IC
| Price: |
US $ 1.29/Piece |
| Trade Terms: |
FOB |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
RX-8025SAAC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Family: |
Clock/Timing - Real Time Clocks |
| Part Status: |
Active |
| Time Format: |
Hh:mm:Ss (12/24 Hr) |
| Date Format: |
Yy-mm-Dd-Dd |
| Interface: |
I2c, 2-Wire Serial |
| Voltage-Supply: |
1.7 V ~ 5.5 V |
| Operating Temperature Range: |
-40 to 85 Degree C |
Product Description
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS etc. |

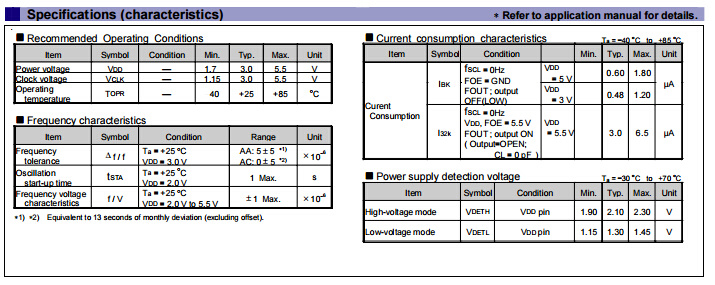

•Built-in 32.768 kHz crystal unit : Frequency adjusted for high accuracy (± 5 ×10−6 / Ta = +25 °C)•Interface Type : I2C-Bus Interface (400 kHz)•Operating voltage range : 1.70 V to 5.5 V•Wide Timekeeper voltage range : 1.15 V to 5.5 V•Various detection Functions : Ex. Oscillation stop detection function•Low backup current : 0.48 µA / 3 V (Typ.)•32.768 kHz frequency output function : C-MOS output With Control Pin•The various functions include full calendar, alarm, timer.* The I2C-Bus is a trademark of NXP Semiconductors Features built-in 32.768 kHz crystal unit
• Frequency adjusted for high accuracy.
( ± 5 ×10−6
/ Ta = +25 °C )
( Equivalent to 13 seconds of monthly deviation )
• The various detection function
• Power supply voltage monitoring function
(with selectable detection threshold )
• Stop detection function
• Power-on reset detection function
• Alarm function and Timer function
• Timer function produces a periodic interruption signal.
As for the Alarm function an optional combination is produced.
(Date of the week , time , minute) | Category | Integrated Circuits (ICs) | |
|---|
| Family | Clock/Timing - Real Time Clocks | |
|---|
| Manufacturer | | |
|---|
| Series | - | |
|---|
| Packaging | Tape & Reel (TR) | |
|---|
| Part Status | Active | |
|---|
| Type | Clock/Calendar | |
|---|
| Features | Alarm, Leap Year | |
|---|
| Memory Size | - | |
|---|
| Time Format | HH:MM:SS (12/24 hr) | |
|---|
| Date Format | YY-MM-DD-dd | |
|---|
| Interface | I²C, 2-Wire Serial | |
|---|
| Voltage - Supply | 1.7 V ~ 5.5 V | |
|---|
| Voltage - Supply, Battery | - | |
|---|
| Current - Timekeeping (Max) | 1.2µA ~ 1.8µA @ 3V ~ 5V | |
|---|
| Operating Temperature | -40°C ~ 85°C | |
|---|
| Mounting Type | Surface Mount | |
|---|
| Package / Case | 14-SOIC (0.197", 5.00mm Width) | |
|---|
| Supplier Device Package | 14-SOP |
|---|
