Product Specifications
| Prod Model: |
IF10T-R2A |
| Material: |
Stainless Steel |
| Storing Capacity: |
0.5 Ton-100 Tons |
| Usage: |
Fresh Keeping, Seafood Keeping, Vegetable Keeping |
| Voltage: |
50Hz or 60Hz |
| Ice Shape: |
Flake Ice |
| Certification: |
CCC |
| Condition: |
New |
Product Description

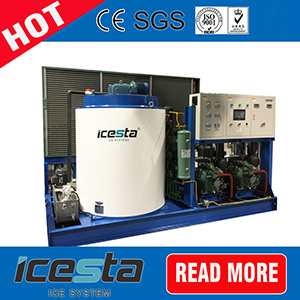

ICESTA commercial hotel ice machine with crystal flake ice
The flake ice machine provides both commercial and industrial ice plants with cost-effective ice making solutions since it produces sufficient amount of flake ice with reliable operation, and its service life is quite long.
Feature
1. Our flake ice maker's evaporator has a hot dipped frame to avoid shrinkage, and X-ray is used to determine the soundness of welds to make sure that leakage will not take place.2. Thanks to the implementation of intelligent PLC controller and touch screen, this scale ice maker is able to offer diversified functions to facilitate ice making. For example, the stop time could be set in advance, and the operator could select his first language among different language choices. Moreover, remote control is available via the small touch screen, whilst failure record and instant solution are also provided, thus allowing operators to check and solve operational problems in time. In general, all these elaborated details give all-sided convenience, making our flake ice machine highly praised on the market.
Working Condition
1. Standard ambient temperature: 25ºC
2. Standard water inlet temperature: 20ºC
3. Evaporating temperature: -20ºC
4. Condensing temperature: 40ºC (air cooled) / 38ºC (water cooled)
5. Power supply: 3P/380V/50Hz
6. Flake ice thickness: 1.6-2.3mm
7. Refrigerant: R404A (R22 and R717 are optional)
| Model | IF05T-R4A | IF1T-R4A | IF1.2T-R4A | IF1.5T-R4A |
| Daily Ice Production | 0.5t/24h | 1t/24h | 1.2t/24h | 1.5t/24h |
| Refrigeration Power (KW) | 3.3 | 5.6 | 6.6 | 9.8 |
| Power Consumption (KW) | 2.79 | 4.57 | 5 | 7.07 |
| Compressor Power (KW) | 2.2 | 3.8 | 4.3 | 6.3 |
| Reducer Power (KW) | 0.18 | 0.18 | 0.18 | 0.18 |
| Water Pump Power (KW) | 0.09 | 0.09 | 0.09 | 0.09 |
| Condenser Power (KW) | 0.22 | 0.5 | 0.5 | 0.5 |
| Power Supply | 3P/380V/50Hz | 3P/380V/50Hz | 3P/380V/50Hz | 3P/380V/50Hz |
| Water Pressure | 0.1Mp-0.5Mpa | 0.1Mp-0.5Mpa | 0.1Mp-0.5Mpa | 0.1Mp-0.5Mpa |
| Refrigerant | R404a | R404a | R404a | R404a |
| Water Pipe | 1/2" | 1/2" | 1/2" | 1/2" |
| Weight | 300KG | 450KG | 460KG | 480KG |
| Dimensions (mm) | 1320×800×800 | 1320×900×900 | 1320×900×900 | 1400×950×1000 |
| Model | IF2T-R4A | IF2.5T-R4A | IF3T-R4A |
| Daily Ice Production | 2t/24h | 2.5t/24h | 3t/24h |
| Refrigeration Power (KW) | 11.6 | 16.1/14.8 | 17.2 |
| Power Consumption (KW) | 8.34 | 10.04/9.54 | 11.11 |
| Compressor Power (KW) | 7.2 | 8.9/8.4 | 9.97 |
| Reducer Power (KW) | 0.37 | 0.37 | 0.37 |
| Water Pump Power (KW) | 0.09 | 0.09 | 0.09 |
| Condenser Power (KW) | 0.68 | 0.68 | 0.68 |
| Power Supply | 3P/380V/50Hz | 3P/380V/50Hz | 3P/380V/50Hz |
| Water Pressure | 0.1Mp-0.5Mpa | 0.1Mp-0.5Mpa | 0.1Mp-0.5Mpa |
| Refrigerant | R404a | R404a | R404a |
| Water Pipe | 1/2" | 1/2" | 1/2" |
| Weight | 500KG | 520KG/550KG | 600KG |
| Dimensions (mm) | 1500×1100×1045 | 1500×1250×1200 | 1640×1250×1250 |
IF3T-R4A
| Model | IF5T-R4A | IF5T-R4W | IF8T-R4A | IF8T-R4W |
| Compressor (BITZER) | 25HP | 25HP | 40HP | 40HP |
| Ice output | 5t/24h | 5t/24h | 8t/24h | 8t/24h |
| Refrigeration capacity | 35kW | 37.8kW | 47kW | 50.8kW |
| Total power | 22.55kW | 22.84kW | 30.46kW | 33kW |
| Cooling mode | Air cooling | Water cooling | Air cooled | Water cooling |
| Compressor input power | 20.7kW | 20.3kW | 27.5kW | 27.1kW |
| Reducer power | 0.37kW | 0.37kW | 0.55kW | 0.55kW |
| Evaporator pump power | 0.12kW | 0.12kW | 0.37kW | 0.37kW |
| Water consumption | 0.2m3/h | 0.38m3/h | 0.34m3/h | 0.6m3/h |
| Feeding tube | 3/4" | 3/4" | 3/4" | 3/4" |
| Net weight | 960kg | 1050kg | 1450kg | 1670kg |
| Dimensions | 2030×1650×1470mm | 1800×1500×1470mm | 3100×2100×1730mm | 2330×1890×1730 |
| Model | IF15T-R4A | IF15T-R4W | IF20T-R4A | IF20T-R4W |
| Compressor (BITZER) | 2×30HP | 2×30HP | 3×30HP | 3×30HP |
| Ice output | 15t/24h | 15t/24h | 20t/24h | 20t/24h |
| Refrigeration capacity | 83.2kW | 85.1kW | 122.3kW | 127.6kW |
| Total power | 52kW | 54.5kW | 74.32kW | 77kW |
| Cooling mode | Air cooling | Water cooling | Air cooling | Water cooling |
| Compressor input power | 46.8kW | 45.9kW | 70.1kW | 68.9kW |
| Reducer power | 0.75kW | 0.75kW | 0.75kW | 0.75kW |
| Evaporator pump power | 0.75kW | 0.75kW | 0.75kW | 0.75kW |
| Water consumption | 0.625m3/h | 1.125m3/h | 0.83m3/h | 1.4m3/h |
| Feeding tube | 2×3/4" | 2×3/4" | 2×3/4" | 2×3/4" |
| Net weight | 3560kg | 2260kg | 4160kg | 3820kg |
| Dimensions | 3500×2100×2040mm | 3500×2100×2040mm | 4000×2100×2200mm | 4000×2100×2200mm |
| Model | IF25T-R4A | IF25T-R4W | IF30T-R4W | IF30T-R2W |
| Compressor (BITZER) | 3×40HP | 3×40HP | 4×40HP | RC2-410B-Z 180HP |
| Ice output | 25t/24h | 25t/24h | 30t/24h | 30t/24h |
| Refrigeration capacity | 145kW | 152.1kW | 202kW | 179.7kW |
| Total power | 89.5kW | 91.5kW | 108.4kW | 90kW |
| Cooling mode | Air cooling | Water cooling | Water cooling | Water cooling |
| Compressor input power | 79.4kW | 81.4kW | 97.9kW | 97.9kW |
| Reducer power | 0.75kW | 0.75kW | 0.75kW | 0.75kW |
| Evaporator pump power | 0.75kW | 0.75kW | 0.75kW | 0.75kW |
| Water consumption | 1.61m3/h | 1.61m3/h | 1.95m3/h | 1.95m3/h |
| Feeding tube | 2×3/4" | 2×3/4" | 2×3/4" | 2×3/4" |
| Net weight | 4960kg | 4960kg | 5380kg | 5200kg |
| Dimensions | 4000×2100×2500mm | 4000×2100×2500mm | 4600×2100×2500mm | 4000×2100×2500mm |
Note: water cooling or air cooling mode can be chosen.
