Product Specifications
| Prod Model: |
IF1T-R2A |
| Material: |
Stainless Steel |
| Storing Capacity: |
3 Tons, 5 Tons,10 Tons,20 Tons |
| Max Daily Output: |
60t |
| Usage: |
Drinks, Wine, Fish, Seafood, Vegetables |
| Certification: |
CCC |
| Condition: |
New |
| Ice Shape: |
Tube Ice |
Product Description
1 Ton Ice Cube Machine Made in China

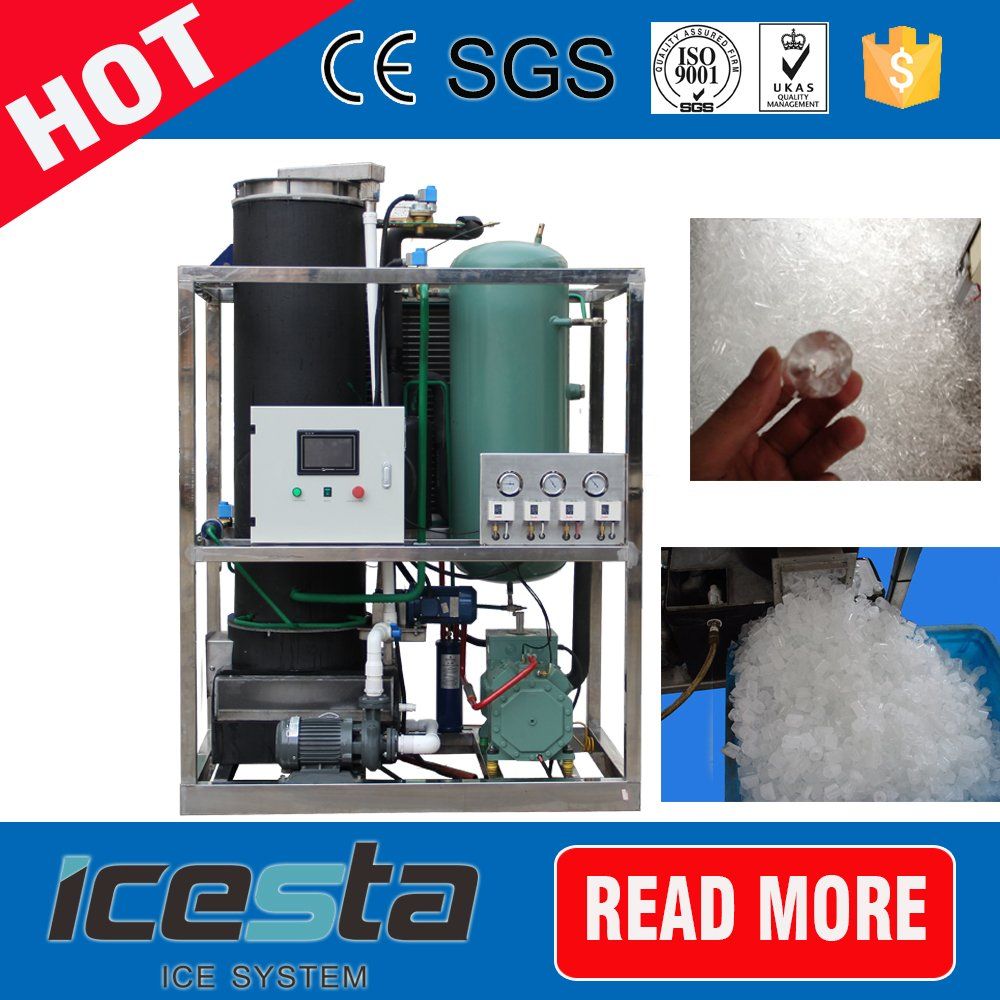

Tube ice machine
Featured by high ice output, reliable performance and humanized design, our tube ice machine uses high quality 304/316L stainless steel to fabricate all surfaces that will come into contact with water or ice during operation so as to provide good corrosion resistance, and all the materials are in compliance with HACCP.
What is tube ice and what is its advantage?
Tube ice is cylindrical shaped ice with hollow core, and it is powderless. Compared with flake ice, tube ice exhibits longer melting time, so it is more suitable for cooling things in uninsulated environment. What is more, it is solid and less prone to generate ice lumps, making it suitable for long distance delivery.
Why choose ICESTA tube ice machine?
1. Our tube ice maker is constructed via innovative manufacturing technology, and its ice scraping surface is as smooth as a mirror. That has tremendously increased ice scraping efficiency and overall energy efficiency ratio.
2. Compared with competitors' evaporator, our ice machine evaporator is able to form uniform water membrane in a more effective way, and this is very helpful in making crystal ice tubes.
3. For our tube ice machine, its ice cutter could be easily dismantled or replaced as a whole, and its water reservoir adopts an open structure to facilitate cleaning and disinfection.
4. With an optimized structural design, this tube ice generator not only has simple structure and high reliability, but also fits for container transportation for overseas clients.
| Model | IT2T-R2W | IT3T-R2W | IT5T-R2W | IT10T-R2W |
| Ice output | 2t/24h | 3t/24h | 5t/24h | 10t/24h |
| Ice tube diameter(mm) | φ29 | φ29 | φ29 | φ29 |
| Cooling Capacity(kW) | 17.9 | 27.4 | 48.8 | 80.2 |
| Evaporating temperature(ºC) | -15 | -15 | -15 | -15 |
| Condensing temperature(ºC) | 40 | 40 | 40 | 40 |
| input power(kW) | 8.55 | 14.69 | 23.8 | 43.75 |
| Compressor input power(kW) | 6.7 | 11.9 | 18.6 | 33.8 |
| Ice cut reducer input power(kW) | 0.37 | 0.37 | 0.75 | 0.75 |
| Water pump input(kW) | 0.55 | 0.55 | 1.5 | 2.2 |
| Condenser Fan input power(kW) | 0.75 | 1.5 | 2.2 | 5.5 |
| Water pump of cooling tower(kW) | 0.18 | 0.37 | 0.75 | 1.5 |
| Power Specifications | 3P/380V/50Hz |
| Water Pressure | 0.1Mpa-0.5Mpa |
| Refrigerant | R22 |
| Standard ambient temp.(ºC) | 30 |
| Standard Water Temp.(ºC) | 20 |
| Water Consumption(M3/h) | 0.084 | 0.126 | 0.21 | 0.42 |
| Water supply tube Diameter | 1-1/4" | 1-1/4" | 2" | 2" |
| Overflow pipe | 1" | 1" | 1-1/4" | 1-1/4" |
| Drain pipe | 1" | 1" | 1-1/4" | 1-1/4" |
| Ice machine Weight(kg) | 1150 | 1280 | 1600 | 2750 |
| Ice Machine Diameter(mm) | 1650*1300*2150 | 1650*1300*2150 | 1750*1400*2250 | 2300*1600*3100 |
| Dimension of cooling tower(mm) | φ920*1830 | φ1165*1645 | φ1385*2150 | φ1880*2120 |
| Weight of cooling tower(kg) | 190 | 200 | 500 | 975 |
