| Price: | US $ 4.03/Piece |
|---|---|
| Min Order: | 360/Piece |
| Pay Type: | L/C,T/T,D/P |

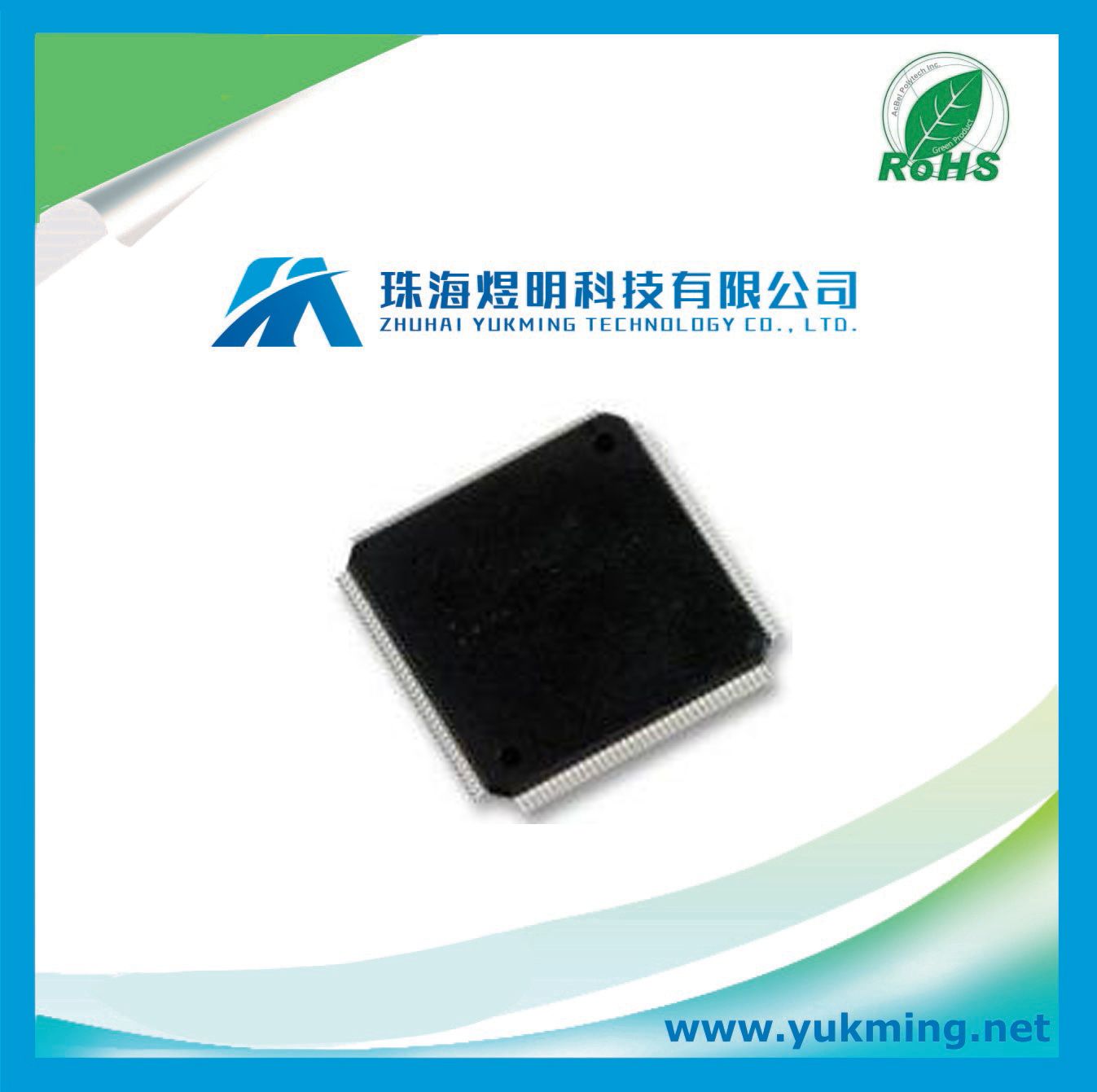

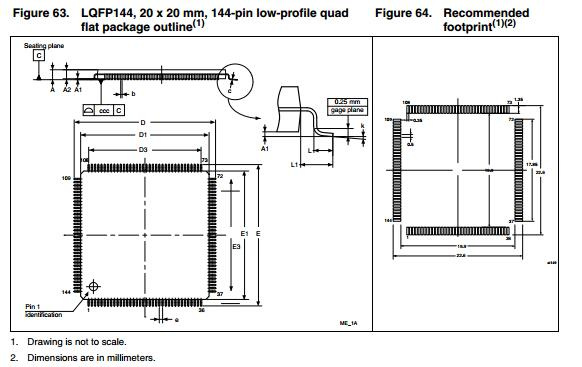

| Prod Model: | STM32F103ZET6 |
|---|---|
| Category: | Arm Microcontroller - MCU |
| Core: | Arm Cortex M3 |
| Series: | Stm32f103ze |
| Operation Supply Voltage: | 2.5 V, 3.3 V |
| Operation Temperature Range: | -40~85 |
| On-Chip ADC: | Yes |
| Max Clock Frequency: | 72 MHz |
| Timer Nos: | 8 |
High-density performance line ARM-based 32-bit MCU with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interfaces
Features
Core: ARM 32-bit Cortex™-M3 CPU
- 72 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance at 0 wait state memory
access
- Single-cycle multiplication and hardware
division
Memories
- 256 to 512 Kbytes of Flash memory
- up to 64 Kbytes of SRAM
- Flexible static memory controller with 4
Chip Select. Supports Compact Flash,
SRAM, PSRAM, NOR and NAND memories
- LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
- 2.0 to 3.6 V application supply and I/Os
- POR, PDR, and programmable voltage
detector (PVD)
- 4-to-16 MHz crystal oscillator
- Internal 8 MHz factory-trimmed RC
- Internal 40 kHz RC with calibration
- 32 kHz oscillator for RTC with calibration
Low power
- Sleep, Stop and Standby modes
- VBAT supply for RTC and backup registers
3 × 12-bit, 1 µs A/D converters (up to 21
channels)
- Conversion range: 0 to 3.6 V
- Triple-sample and hold capability
- Temperature sensor
2 × 12-bit D/A converters
DMA: 12-channel DMA controller
- Supported peripherals: timers, ADCs, DAC,
SDIO, I2Ss, SPIs, I2Cs and USARTs
Debug mode
- Serial wire debug (SWD) & JTAG interfaces
- Cortex-M3 Embedded Trace Macrocell™

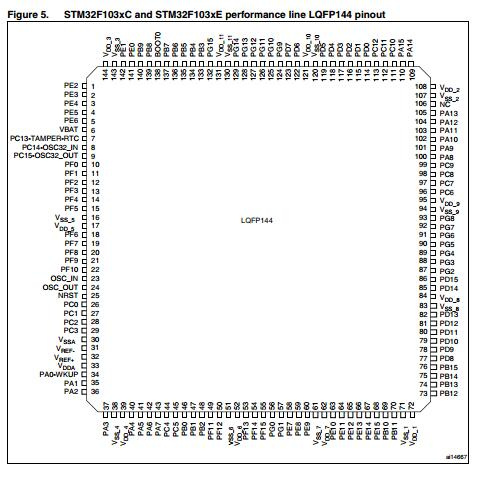

Up to 112 fast I/O ports
- 51/80/112 I/Os, all mappable on 16
external interrupt vectors and almost all
5 V-tolerant
Up to 11 timers
- Up to four 16-bit timers, each with up to 4
IC/OC/PWM or pulse counter and
quadrature (incremental) encoder input
- 2 × 16-bit motor control PWM timers with
dead-time generation and emergency stop
- 2 × watchdog timers (Independent and
Window)
- SysTick timer: a 24-bit downcounter
- 2 × 16-bit basic timers to drive the DAC
Up to 13 communication interfaces
- Up to 2 × I2C interfaces (SMBus/PMBus)
- Up to 5 USARTs (ISO 7816 interface, LIN,
IrDA capability, modem control)
- Up to 3 SPIs (18 Mbit/s), 2 with I2S
interface multiplexed
- CAN interface (2.0B Active)
- USB 2.0 full speed interface
- SDIO interface
CRC calculation unit, 96-bit unique ID
ECOPACK® packages
The STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM® Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16- bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN. The STM32F103xx high-density performance line family operates in the -40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications. The STM32F103xx high-density performance line family offers devices in six different package types: from 64 pins to 144 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family. These features make the STM32F103xx high-density performance line microcontroller family suitable for a wide range of applications:
Motor drive and application control
Medical and handheld equipment
PC peripherals gaming and GPS platforms
Industrial applications, PLC, inverters, printers, and scanners
Alarm systems, video intercom, and HVAC
