HP8303f DVB-S2X If Modulator
| Price: |
US $ 3000-5000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
Product Specifications
| Prod Model: |
HP8303F |
| Certification: |
FCC,SGS |
| Condition: |
New |
| Type: |
Modulator |
| Function: |
Modulator |
Product Description

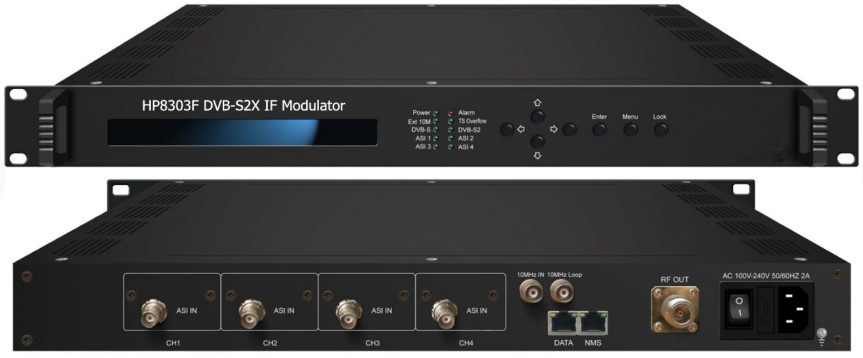

HP8303F DVB-S2X IF Modulator
OutlineHP8303F is a high-performance modulator developed according to DVB-S2X (EN302 307-2) standard which is the standard of third generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2/S2X IF output.BISS scrambling mode is inserted to this DVB-S2X modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.With its high cost-effective design, HP8303F DVB-S2X IF modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications. Features * Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307-1) and DVB-S2X (EN 302 307-2) standard * 4 ASI inputs supporting hot backup (3 for backup) * Support IP (100M) signal input * QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations * Support RF CID setting * Constant temperature crystal oscillator, as high as 0.1ppm stability * 10MHz outer reference clock output * Support BISS scrambling * Support local and remote control with Web-server NMS * Output frequency range: 50~960MHz, 1KHz stepping Principle Chart
Specifications | | Supporting both188/204 Byte Packet TS Input | | | |
| | | | | | | |
| ASI Input | 4 ASI Inputs ( 3 ASI for hot backup) | | | |
| | | | | | | |
| | Connector: BNC, Impedance 75Ω | | | | |
| | | | | | | |
| IP Input | 1*IP Input (Rj45, 100M TS Over UDP) | | | |
| | | | | | | |
| 10MHz Input | 1*10Mhz Input (BNC Interface) | | | | |
| | | | | | | |
| | Range:50 ~ 960 MHz, 1KHz stepping | | | |
| | | | | | |
| IF Output | Output Level Attenuation: -28.5dBm~+3 dBm, 0.5dB Stepping | | |
| | | | | | |
| MER≥40dB | | | | | |
| | | | | | |
| | | | | | | |
| | Connector: N type, impedance 50Ω | | | |
| | | | | | | |
| | Standard | DVB-S | DVB-S2 | | | DVB-S2X |
| | | | | | | |
| | Outer coding | RS Coding | BCH Coding | | | BCH Coding |
| | | | | | | |
| | Inner coding | Convolution | LDPC Coding | | | LDPC Coding |
| | | | | | | |
| | | | QPSK,8PSK, | | | QPSK,8PSK, |
| | Constellation | QPSK | | | 16APSK,32APSK |
| | 16APSK,32APSK | | |
| | | | | | 8PSK-L,16APSK-L,32APSK-L |
| | | | | | |
| | | | | | | |
| | | | QPSK: 1/4, 1/3, 2/5, | 1/2, 3/5, | QPSK: 13/45, 9/20, 11/20 |
| | | | 8PSK: 23/36, 25/36, 13/18 |
| | | | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| | | | | |
| Channel Coding | FEC/ | | 8PSK: 3/5, 2/3, 3/4, | 5/6, | 8/9, | 16APSK: 26/45, 3/5, 28/45, 23/36, |
| 1/2, 2/3, 3/4, | 25/36, 13/18, 7/9, 77/90 |
| | 9/10 | | |
| | Convolution | | |
| and Modulation | 5/6, 7/8 | | | 32APSK: 32/45, 11/15, 7/9 |
| Rate | 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, |
| | |
| | | 8PSK-L: 5/9, 26/45 |
| | | | 9/10 | | |
| | | | | | 16APSK-L: 5/9, 8/15, 1/2, 3/5, 2/3 |
| | | | 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| | | | 32APSK-L: 2/3 |
| | | | | | |
| | | | | | | |
| | Roll-off Factor | 0.2,0.25,0.35 | 0.2, 0.25, 0.35 | | | 0.05, 0.10, 0.15 |
| | | | | | | |
| | | | 0.5~40Msps (32APSK); | | 0.5~40Msps(32APSK,32APSK-L); |
| | | | | |
| | Symbol Rate | 0.5~45Msps | 0.5~45Msps | | | 0.5~45 Msps |
| | | | (16APSK/8PSK/QPSK/16APSK-L/8PS |
| | | | (16APSK/8PSK/QPSK) | |
| | | | | K-L) |
| | | | | | |
| | | | | | | |
| | BISS Scramble | Mode 0, mode 1, mode E | | | |
| | | | | | | |
| System | Web-server NMS, Ethernet software upgrade |
| Language: English | | | | |
