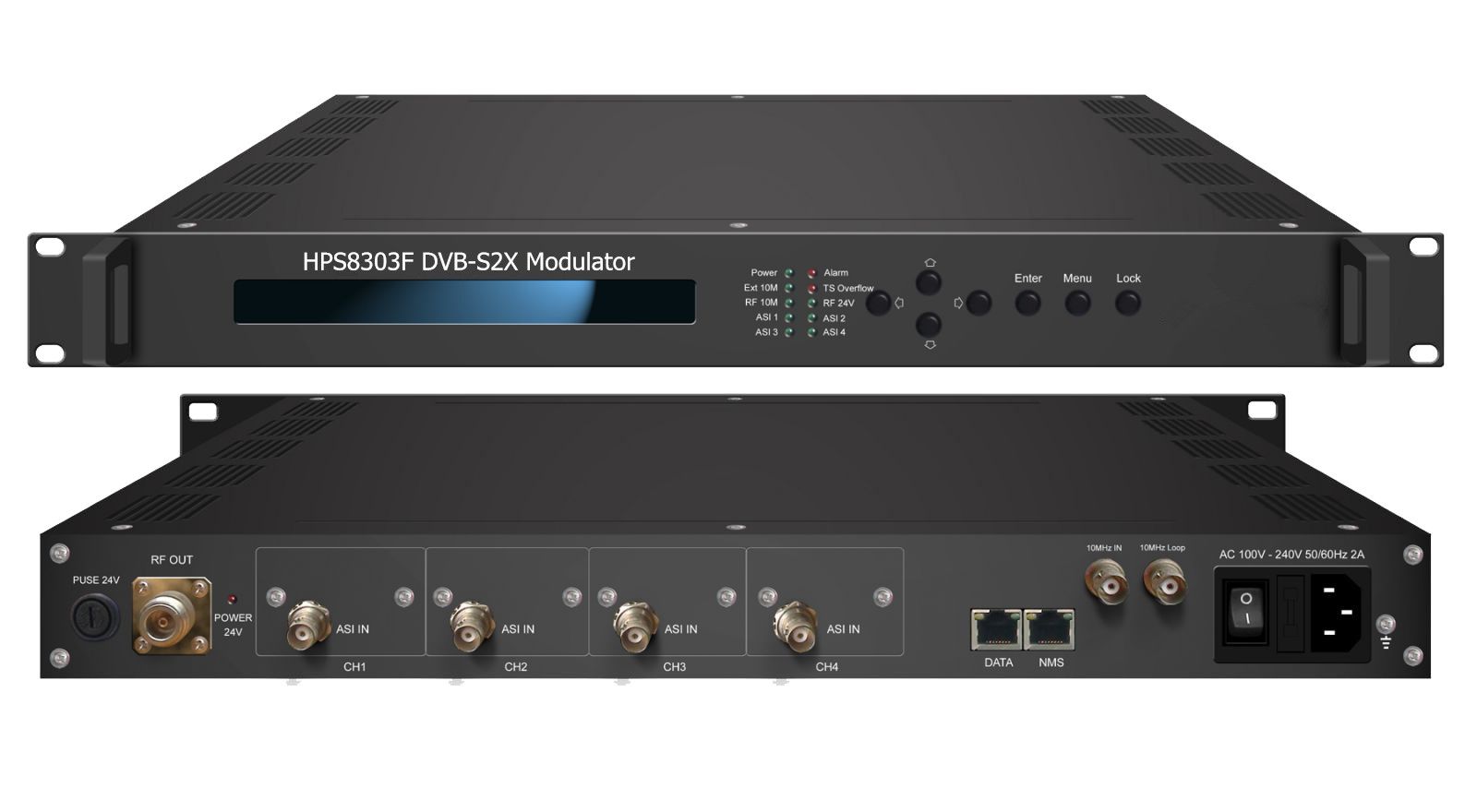

Digital TV broadcasting Modulator DVB-S2X with input ASI to RF
HPS8303F is a high-performance modulator developed according to DVB-S2X (EN302 307-2) standard which is the standard of third generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2/S2X RF output.BISS scrambling mode is inserted to this DVB-S2X modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel. With its high cost-effective design, HPS8303F DVB-S2X modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
Features- Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307-1) and DVB-S2X (EN 302 307-2) standard
- 4 ASI inputs supporting hot backup (3 for backup)
- Support IP (100M) signal input
- QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations

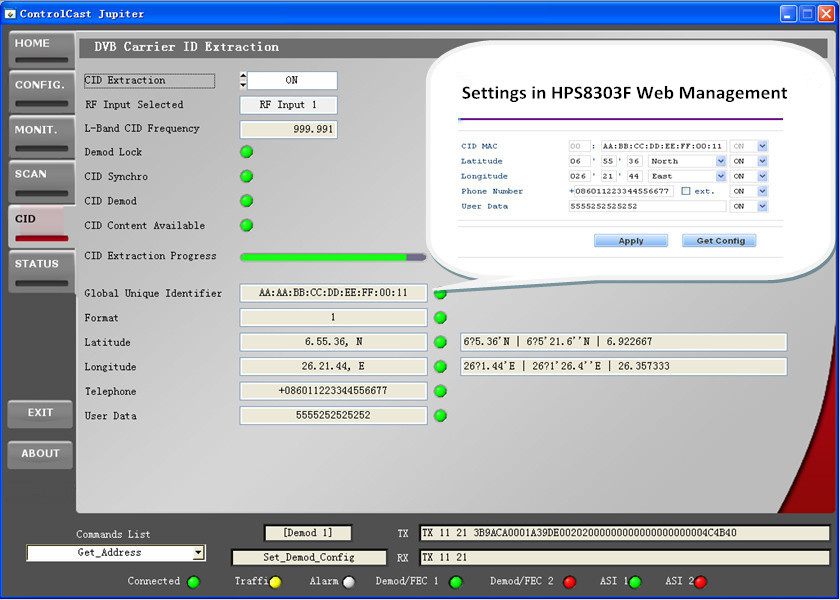

- Support RF CID setting
- Constant temperature crystal oscillator, as high as 0.1ppm stability
- Support coupling 10Mhz clock output through RF output port
- Support 24V power output through RF output port
- Support BISS scrambling
- Support local and remote control with SNMP or Web-server NMS
- Support SFN TS (with MIP or IIP) transmission
Principle ChartSpecification | ASI Input | Supporting both188/204 Byte Packet TS Input |
| 4 ASI Inputs, Supporting Hot Backup |
| Connector: BNC, Impedance 75Ω |
| IP Input | 1*IP Input (Rj45, 100M TS Over UDP) |
| SFN output | MIP or IIP |
| 10MHz Input | 1*10Mhz Input (BNC Interface) |
| RF Output | RF Range: 950 ~ 2150 MHz, 10KHz stepping |
| Output Level Attenuation:-10.0 dBm~-41.5 dBm,0.5dB Stepping |
| MER≥36dB |
| Connector: N type, impedance 50Ω |
Channel Coding
and Modulation | Standard | DVB-S | DVB-S2 | DVB-S2X |
| Outer coding | RS Coding | BCH Coding | BCH Coding |
| Inner coding | Convolution | LDPC Coding | LDPC Coding |
| Constellation | QPSK | QPSK,8PSK,
16APSK,32APSK | QPSK,8PSK,
16APSK,32APSK
8PSK-L,16APSK-L,32APSK-L |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK:1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | QPSK: 13/45, 9/20, 11/20
8PSK: 23/36, 25/36, 13/18
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 7/9, 77/90
32APSK: 32/45, 11/15, 7/9
8PSK-L: 5/9, 26/45
16APSK-L: 5/9, 8/15, 1/2, 3/5, 2/3
32APSK-L: 2/3 |
| Roll-off Factor | 0.2,0.25,0.35 | 0.2, 0.25, 0.35 | 0.05, 0.10, 0.15 |
| Symbol Rate | 0.5~45Msps | 0.5~40Msps (32APSK);
0.5~45Msps (16APSK/8PSK/QPSK) | 0.5~40Msps(32APSK,32APSK-L);
0.5~45 Msps (16APSK/8PSK/QPSK/16APSK-L/8PSK-L) |
| BISS Scramble | Mode 0, mode 1, mode E |
| System | SNMP/Web-server NMS |
| Language: English |
Order Guide | | HPS8302F | HPS8303F |
| DVB-S/S2 | 1 | 1 |
| DVB- S2X | | 1 |
| QPSK, 8PSK, 16APSK, 32APSK Constellation | 1 | 1 |
| 8PSK-L,16APSK-L,32APSK-L Constellation | | 1 |
Catcast Technology Co., Ltd is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 16 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog TV system to digital TV system. Upgrade CATV/MATV to IPTV system.
Catcast's products are CE, FCC certificated, shared in global markets and exported to more than 80 countries. Including: IRD, decoder, encoder, multiplexer, scrambler, modulator, all in one device, transmitter, STB, and CAS/SMS/EPG to help network operator to build digital TV system to apply to DVB-C, DVB-T/T2, DVB-S/S2/S2X, ISDB-T, ATSC solutions. We also provide IPTV live streaming server, VOD server, billing management system, and cross-border point to to point transmission by internet solution.
We are always striving for innovation, and keep the principle to do business: The same product, we win the quality. The same quality, we win the price.
