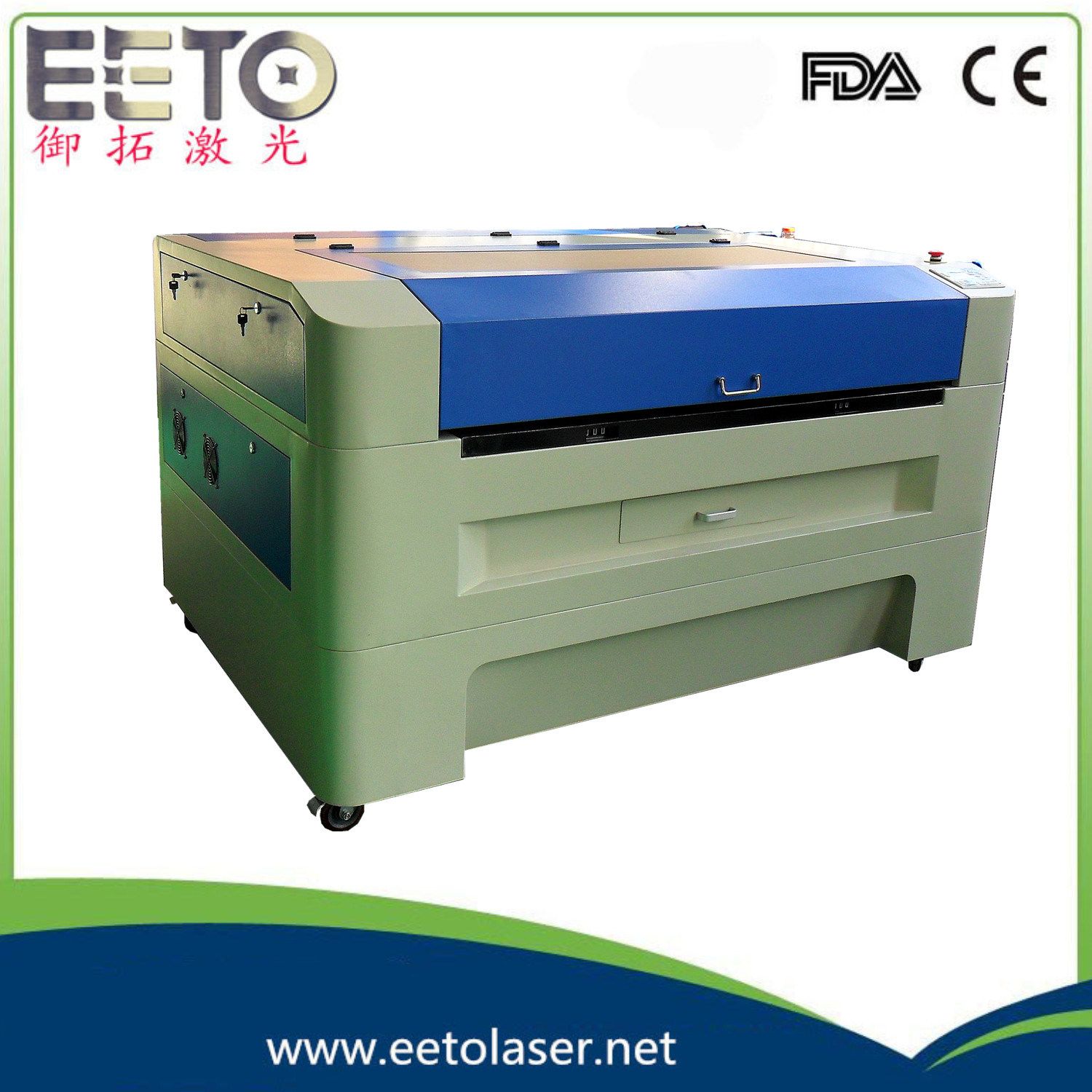

Hot Sale CO2 Laser Cutting Machine for Ss/CS/Acrylic/Wood/ Crystal/Leather/Glass
| Price: |
US $ 2500-6000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
EETO-CLC |
| Control Software: |
Ruida |
| Driving System: |
Servo Motor |
| Working Area: |
1500*3000 |
| Laser Type: |
CO2 |
| Certificate: |
Ce |
| Laser Power: |
150W/320W |
| Cutting Thickness: |
0-30mm |
| Transmission: |
Ball Screw |
| Cutting Speed: |
20000mm/Min |
| Working Voltage: |
220V |
Product Description

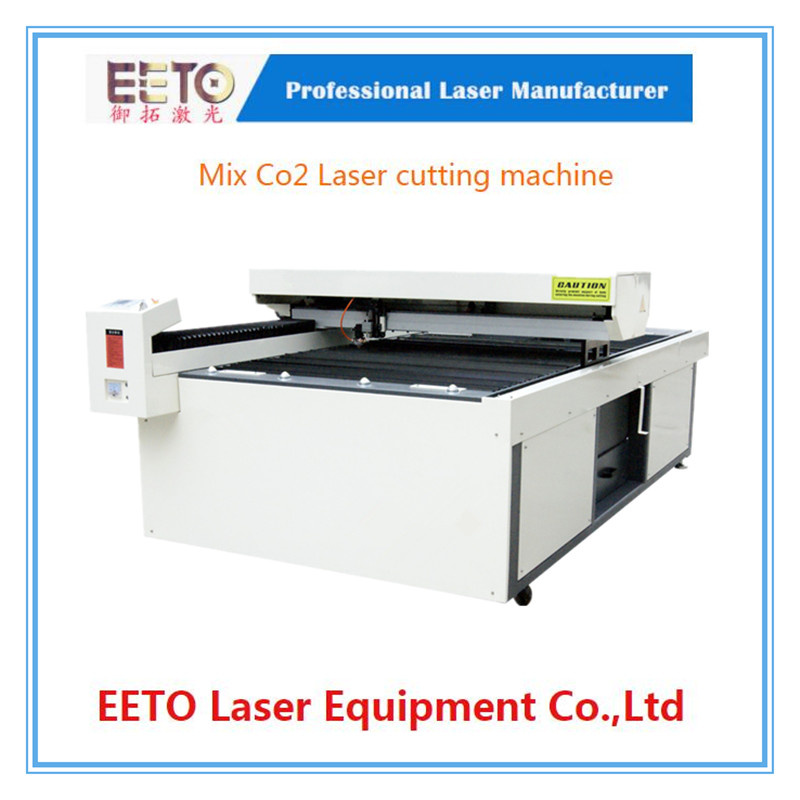

Hot sale CO2 Laser cutting Machine for SS/CS/Acrylic/wood/ crystal/leather/glassProduct DescriptionEETO-CLC320 mixing CO2 laser cutting machine which adopts imported linear guides,all-round ball screw transmission system that with high accuracy.Adopting unique constant optical reflection system to ensure constant laser that remains the same at any point of the laser energy,and to make the processing more perfect.We use full servo motion system that with high processing precision.
Application IndustriesWidely used in metal and nonmetal industry,that can cut clothing,garment,plywood,stainless steel,carbon steel,acrylic,mdf and so on.Parameter of mix co2 laser cutting machine| Decriptions /Item No | H-1216 | H-1325 | H-1530 |
| Max working size | 1200*1600mm | 1300*2500mm | 1500*3000mm |
| Laser power | 150w/320w | 150w/320w | 150w/320w |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Cutting speed | 20000mm/min | 20000mm/min | 20000mm/min |
| Gross Weight | 1150kg | 1250kg | 1350kg |
| Working voltage | 220V ±10%/20A | 220V ±10%/20A | 220V ±10%/20A |
| Overall dimensions | 2450*1900*1250mm | 3650*1900*1250mm | 4200*2200*1250mm |
Cutting thickness of the materials | Power | 150w | 320w |
| Cutting material | Material thickness(mm) | Oxygen(M/min) | Air(M/min) | Oxygen(M/min) | Nitrogen(M/min) |
| Stainless steel | 0.6 | 4.2 | 3.2 | 10 | 2.4 |
| 0.8 | 3 | 2 | 6.5 | 1.5 |
| 1 | 2.4 | 1 | 5 | 0.8 |
| 1.5 | 1.5 | 0.5 | 2.5 | |
| 2 | | 0.9-1.2 | 2 | |
| Carbon steel | 1 | 2.4 | 2.5-3.5 | 4.5 | |
| 2 | 1.2 | 2.5-3.0 | 3 | |
| 3 | | 0.6-0.8 | 1.5 | |
| Galvanized sheet | 0.6 | 3.6 | 2.5 | 7 | 2 |
| 1 | 2.4 | 1.5 | 4.5 | |
| 1.5 | 1.2 | 0.5 | 3 | |
| 2 | | | 1.5 | |
| Acrylic | 10 | | 1.2 | | |
| 20 | | 0.3 | | |
| 30 | | 0.2 | | |
| 40 | | 0.1 | | |
| MDF | 5 | | 2.4 | | |
| 10 | | 1.2 | | |
Features of the mix laser cutting machine1.Mixed laser cutting machine adopts imported linear guides,all-round ball screw transmission with highest accuracy.2.Servo motion systems,precision processing,stable operation,low noise.3.High-power CO2 laser tube,high light extraction efficiency,small spot,longtime light extraction in a very stable state.4.Using the color screen control system,diverse data transmission,easy to use,powerful functions,can be off-line or online.
5.Using the industrial refrigeration system to ensure the life of the laser,lower maintenance rate.

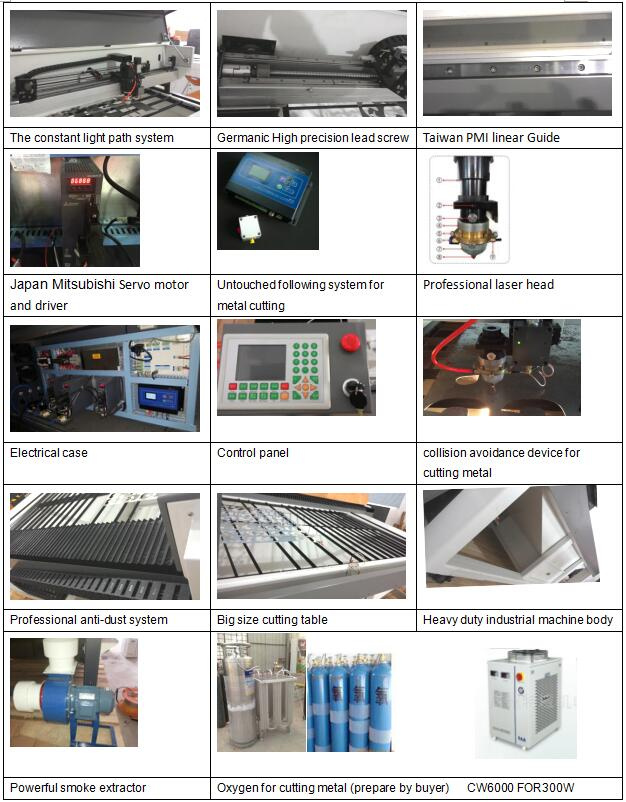

6.The unique design of untouched following system,consistent with the focal length of the beam,to ensure that the cutting surface of the gap is small and smooth.Advantages of the mix laser cutting machine1.Global originate Zero cost air auxiliary cutting pattern2.The only can cut galvanized sheet perfect3.The only one can cut acrylic of 40mm thickness4.The only one realizes functions of automatic collision avoidance and automatic focusing.5.The only one can use nitrogen,oxygen,air as auxiliary for cutting6.Can cut metal materials of 2.5mm thickness7.The only can continuously punch,or draw lines,or cut8.Quenching machine body,servo system and ball screw transmission9.The independent intellectual property rights(ipr)design of the constant light path reflection systemMain components of the mix co2 laser cutting machine

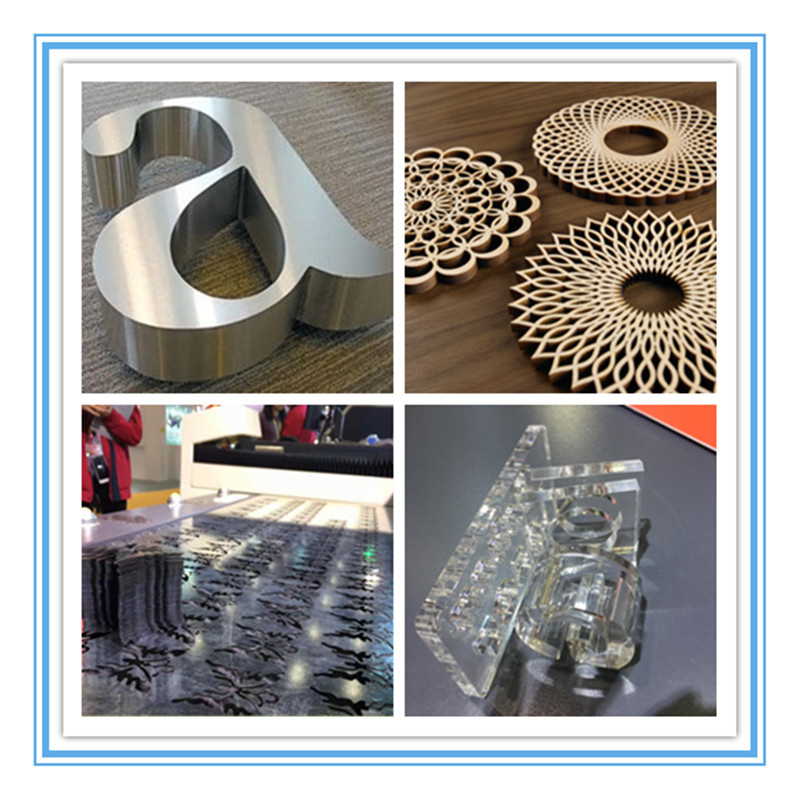

Samples of the mix laser cutting machine
Package and Delivery1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickness plastic bag for waterproof.
2. Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to all of the world. So please don't worry, you will receive the machine in good condition.
3. Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Any problem,you can ask,we will response within 24 hours for you.
Guarantee and after-sales service 1. All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us and all of our mane with 2years qulaity guarantee period.
2. Our engineer can make a door-to-door instruction training service.
3.We will offer plenty of online supports, by email, telephone,skype,whatsapp,wechat and so on.
Exhibition
FAQ for mix co2 laser cutting machineQuestion 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?How thickness of the materials?
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,we will check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 8 years,we have CE,ISO,FDA certificates and have exported to Europe,South America,Arab,Asia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
Answer:There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ whatsapp/phone online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Answer:We provide two years machine warranty. During the warranty, if the machine exists problems, we will provide parts free of charge by express. After the warranty, we still provide lifetime technical support serviceContact usAccording to the above information,we can recommend the suitable laser cutting machine for you.If you have any value inquiry,please contact me as below infos, we will respond you soon .
