Product Specifications
| Prod Model: |
Si-gold 20/25/30 |
| Type: |
Flat Lens |
| Shape: |
Single-lens |
| Material: |
Si-Gold |
Product Description

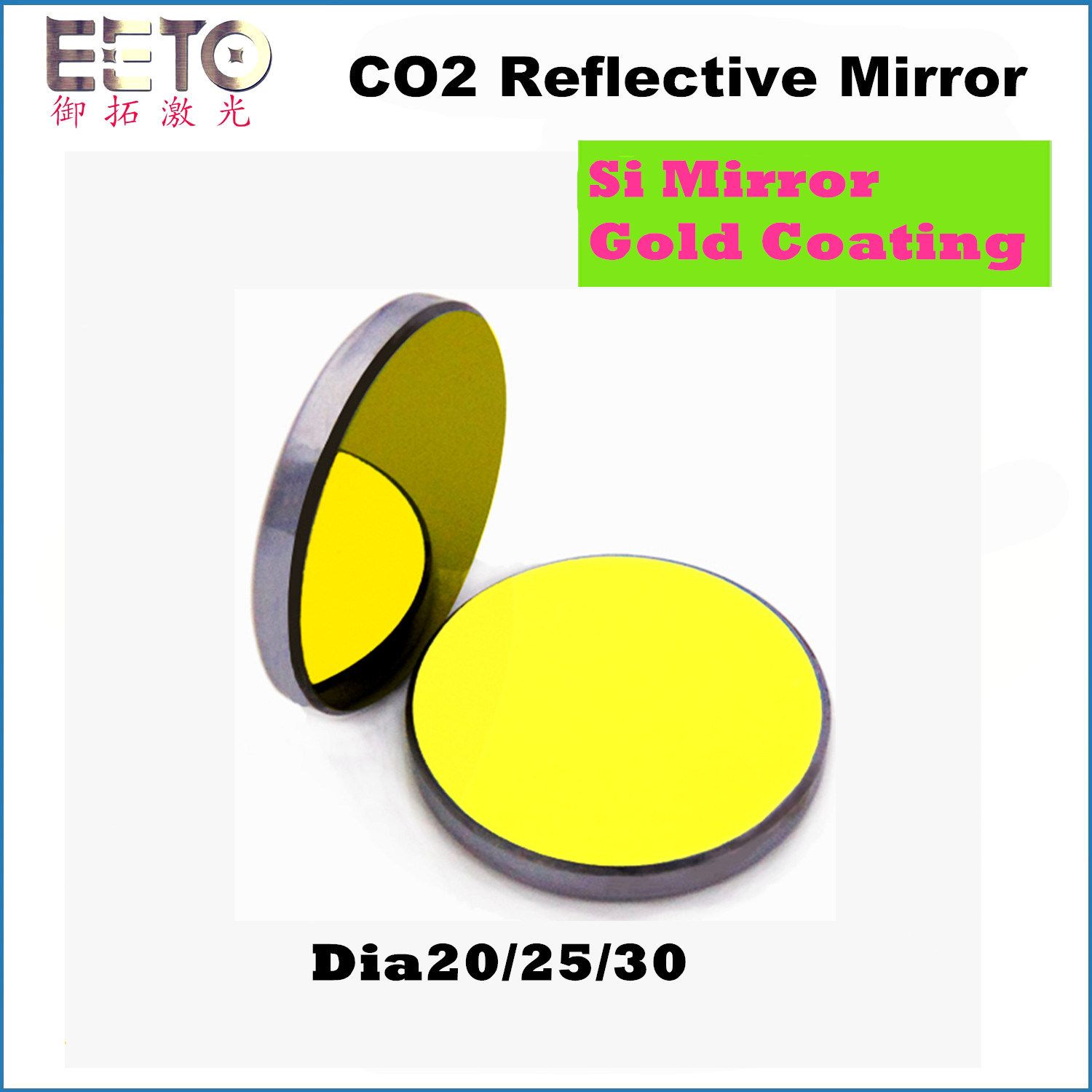

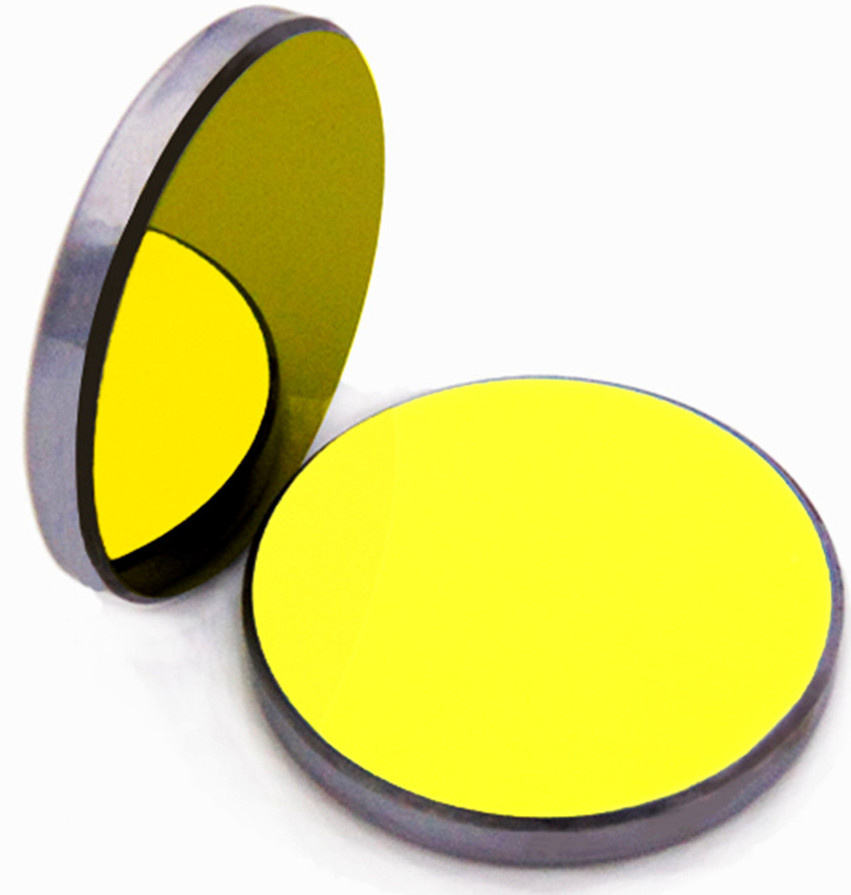

Product Name: Silicon Dielectric Film Reflector
At present, Silicon reflector with good optics characteristics is mostly used. Dielectric film reflector is a new total reflection mirror with the single crystal Si as substrate and coating dielectric material on it to reflect CO2 laser. It has advantages of a high reflectivity, light weight, wipe-resistant and resistant to oxidation and etc.
Si Mirror Parameters:
Diameter: 20mm/25mm/30mm
Thickness: 3mm
Materials: Silicon
Color: Yellow
Common processing requirements for the reflector
Appearance tolerance: 0/-0.1mm
Thickness tolerance: ±0.1mm
Finish: S1:40-20,S2: finish grinding
Parallel degree: <1′
Effective aperture: >90%
Chamfer: <0.2×45°
Coating film: coating high anti-membrane
| Diameter(mm) | Thickness(mm) | Material | Processing Tech |
| 20 | 3 | Si | Gold coating |
| 25 | 3 | Si | Gold coating |
| 30 | 3 | Si | Gold coating |
| 20 | 3 | Mo | Silver coating |
| 25 | 3 | Mo | Silver coating |
| 30 | 3 | Mo | Silver coating |
