Product Specifications
| Prod Model: |
QL-1210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Rubber |
| Working Area: |
1200mm*1000mm |
| Laser Power: |
60W/80W/100W/130W/150W/180W |
| Engraving Speed: |
0-6000cm/Min |
| Power Supply: |
220V/50Hz, 110V/60Hz |
| Graphic Format Supported: |
BMP, Plt, Dst, Dxf, Ai |
Product Description

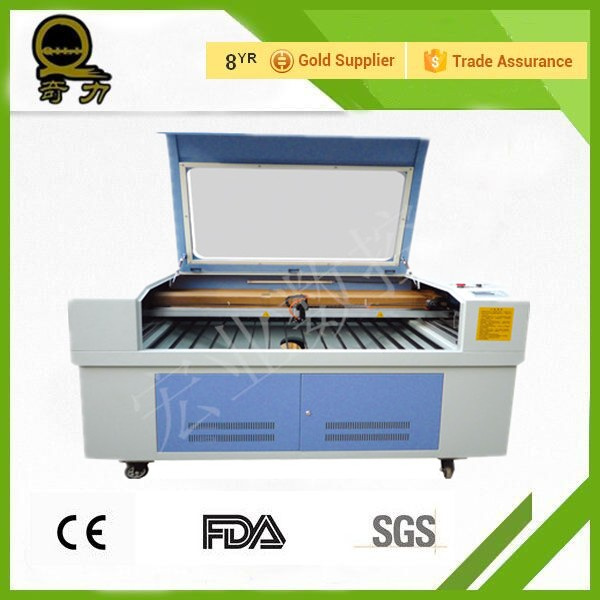

Hot Sale China 1210 CO2 Laser Cutting Machine Price for Sale Wood Leather MDF Acrylic
Product Overview:

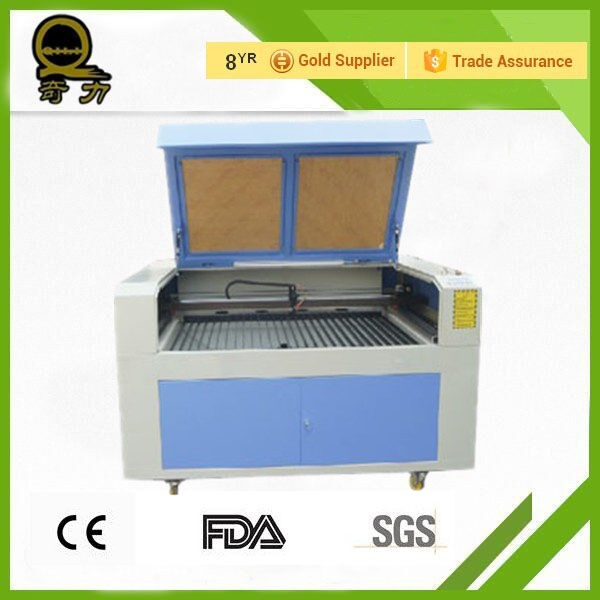

QL-1210 Laser Cutting Machine
Performance Features1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen
6) It can also be made according to customer's demands
Machine Specifications:Model | QL-1210 |
Working area | 1200mm*1000mm / 47in*39in (L*W) |
Laser power | 80W/100W/130W |
Laser type | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-6000cm/min |
Power supply | 220V/50HZ , 110V/60HZ |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 2 phases stepper motor |
Equipment Dimension | 1720mm*1520mm*1100mm |
Packing Dimension | 1900mm*1700mm*1310mm |
Net Weight | 350kg |
Optional parts | Up-down worktable, USB Port, Red light pointer, Autofocus |
Material Cut Engrave
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards YesYes
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood YesYes
Leather, Pig leather, Cow Leather, Sheep leather YesYes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece YesYes
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
Neopren® YesYes
Paper, Cardboard, Chipboard, Press Board YesYes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate NoYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass NoYes
Guarantee&Aftersales Service(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)English manual and video CD for machine using and maintaining
(4)Jinan Hongye CNC Machine Co., Ltd provides free operation training service in Hongye factory.
