Hot Sale 4 Axis Ceramics Tile Copper CNC Carving Machine Price
| Price: |
US $ 5set |
| Min Order: |
1set |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
JCS1325HL |
| Spindle Power: |
6kw Air Cooling Spindle |
| Control System: |
4 Axis Ncstudio Nk300 Control System |
| Driving: |
Janpan Yaskawa Servo Motor and Driver |
| Software: |
Powermill |
| Function: |
Line Engraving |
| Application Material: |
Marble |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

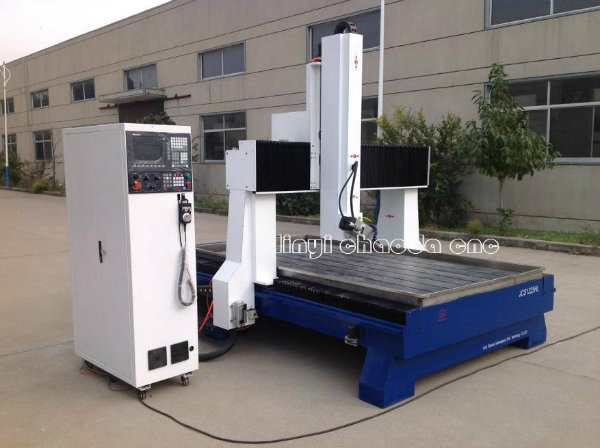

HOT SALE 4 axis ceramics tile copper cnc carving machine price
Techinical detail of 4 axis ceramics tile copper cnc carving machine:| Description | Parameter |
| Models | JCS1224HL-600mm |
| Working Area (X*Y*Z) | 1200*2400*600mm |
| Max Moving Speed | 50m/min |
| Max Engraving Speed | 30m/min |
| working Accuracy | 0.02mm |
| Hold mode | T-slot with clamps |
| Spindle Speed | 0-18000rpm |
| Spindle Power | 6kw air cooling spindle |
| Tool Diameter | 2--12.7mm |
| Transmission | X,Y Axis High Precision Rack Gears,
Z Axis Ball Screw |
| X,Y,Z Guide rail | Linear Square Rail from Taiwan HIWIN |
| Control System | 4 axis Ncstudio NK300 control system |
| Driving | Janpan YASKAWA Servo Motor and driver |
| Software | Powermill |
| Command | G Code (plt, mmg, uoo, bmp) |
| Voltage | AC380V/220V/50-60Hz |
| Gross Weight | 2000KG |
| Net Weight | 1800KG |
| Oil system | Automatically |
| Certificate | CE , BV |

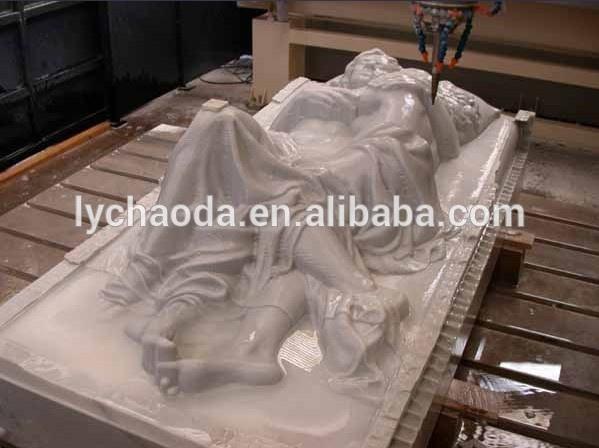

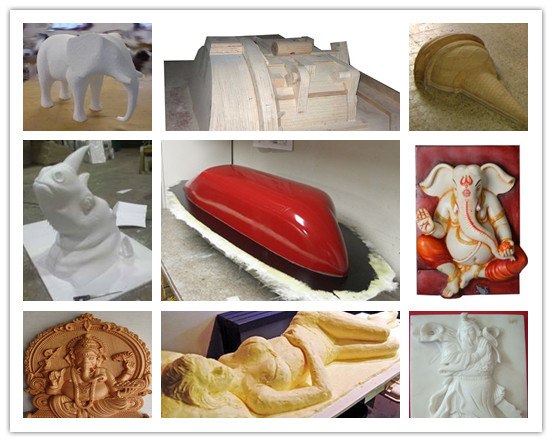

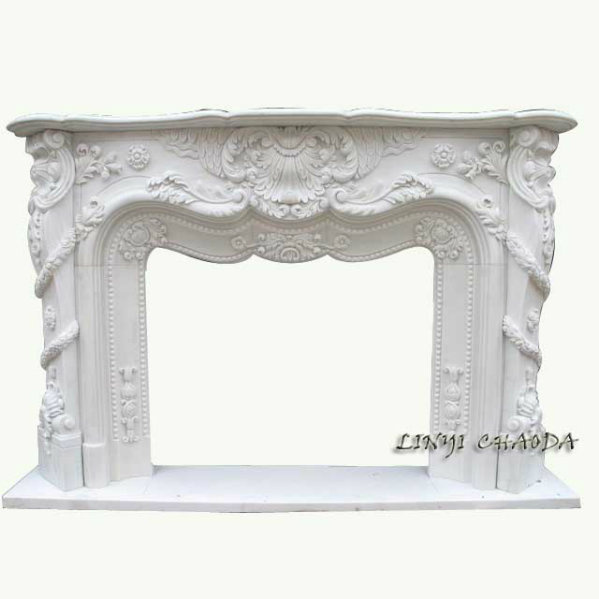

Application of 4 axis ceramics tile copper cnc carving machine:2D engraving, 3D engraving, line engraving, cutting, edge inversing, drilling on artificial stone,marble, granite, ceramic tile, tombstone, milestone, terrazzo, limestone, sandstone, travertine, quartzite, slate, grindstone ,Jade, crystal, plexiglass,wood,pvc,eps foam, aluminum composite panel, aluminum block, copper and so on.Sample pictures of 4 axis ceramics tile copper cnc carving machine:
Factory:
Customer testing and free traning:
A Factory You Can Trust:
Located in Linyi City, Shandong Province, Linyi CHAODA International CNC Technology Co., Ltd is a professional manufacturer of CNC Router Machine, Laser Engraving and Cutting Machine, Plasma Metal Cutting Machine, 3D Scanner, vacuum Forming Machine, etc.
Our factory was established in 2002 and covers 40000 Square meters.
We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. Our machines have won praise from customers worldwide and with very good reputation in this field.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each machine can meet quality requirements of customers. Besides, all of our machines have been strictly inspected before shipment. Our machines have attained CE certificate with Quality Test report & BV certification.
Your satisfaction, Our eternal pursuit!
Our aim is to help customers realize their goals. We are making great efforts to achieve mutual benefit relationship and sincerely hope to cooperate with you!
