Product Specifications
| Prod Model: |
MR-M7R230 |
| Markets: |
North America,South America,Mid East,Western Europe |
| Electromagnetic Ballast: |
Electronic Ballast |
| Lamp: |
Osram 230W |
| Color Temperature: 8500K: |
Gobo: 17 Fixed Gobo +Blank Gobo |
| Prism: Rotation 8 Face Prism: |
Lens: High Precision Glass Optical Lens |
| Packing Dimension: 535*400*410mm: |
Net Gross Weight: 16.5/17.5kg |
| Light Source: |
LED |
| Material: |
Aluminum Alloy |
| Emitting Color: |
Changeable |
| Control Channel: |
16CH |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Voltage: |
AC110-240V |
Product Description

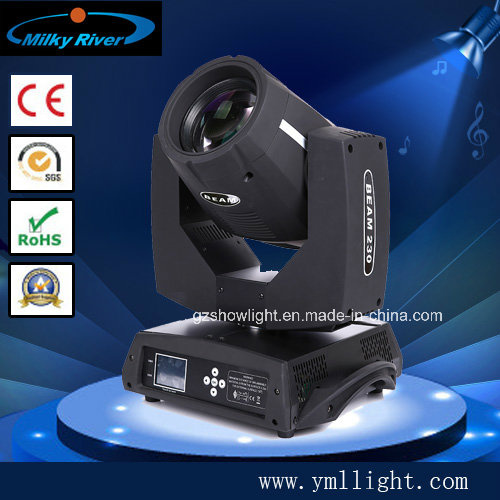

Hot 200W 5R or 230W 7R Beam Moving Head Light Technical ParameterPower: AC 110-240v, 50/60Hz Lamp: 5R200W/7R230W or YODN5RPower consumption: 230w/260W 50HZ 350VAOptics: 3 lens group, the zoom 0°-3.9°electronic focusing;20 meters 50000LUXChannel Mode: 16CH/20Horizontal scan: 540°(16bit precision scanning)Vertical scan: 280°(16bit preision scanning)Color wheel: 14 colors+white, with bi-directional rotation of the rainbow EffectPattern plate: 17 gobos+whitePrism plate: 8 prism, can reverse the direction of rotation, and a prism PositioningStrobe: double guillotine strobe the highest frequency can be 13 times per Second , and can select a random strobe and pulse strobeDimming: 0% to 100% linear dimmerAtomization: 0% to 100% linear atomized liquid crystal display
| ch mode | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 16/20 | color wheel | stop/strobe | Dimmer | Static Gobo Change | Prism Insertion | Prism Rotation | Effects Movement | Frost | Focus |
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
| Pan | Pan Fine | Tilt | Tilt Fine | Function (unused) | Reset | Lamp control | Pan-Tilt Time | Color Time | Dimmer Prism Frost Time |
| 20 | Lamp | Lamp |
| Gobo Time | Philips 200w 5R | Osram 230w 7R |
Our advantages
We have rich production experience in this lighting filed, our products sold at home and abroad won good comments. We did many projects, Chinese National Theater, Cuba Ministry of Culture, Korea Souel Chuch,etc.
Sample testing
Can by DHL, UPS , FedEx, TNT express for tesing sample to check quality, mass order by ship. Our service
1. Our well trained and experienced staffs will reply your inquiry in 24 hours as quickly as possible.
2. We will answer your question as specifically as possible.
3. We provide OEM service.
4. We have been specialized in manufacturing for several decades,
5. Guarantee 1 year, in china guarantee 3 years.
Contact
Tel: 8620 84662356
Mobile: 0086 18126857039
Guangzhou Show Light Stage Equipment Co., Ltd is a professional stage light manufacturer which provides integrated services of research, production, sales, engineering installation. Since our company founded, adhering to innovative ideas and stable quality, strict quality control, launched "Milky River" brand, we won a good social reputation in this industry.
Now our main products are including moving head, LED moving head, PAR lights, LED studio lighting, controllers, etc. Products sold to North America, South America, Europe, etc.
We do OEM and ODM for wellknow world brand for European and US clients.
Guangzhou Show Light Stage Equipment Co., Ltd as a stage lighting equipment manufacturer, with stable quality, good service, integrity, obtain the consensus of the industry at home and abroad.
