Product Specifications
| Prod Model: |
MR-M7R230 |
| Markets: |
North America,South America,Mid East,Western Europe |
| Electromagnetic Ballast: |
Electronic Ballast |
| Lamp: |
Osram 230W |
| Color Temperature: 8500K: |
Gobo: 17 Fixed Gobo +Blank Gobo |
| Prism: Rotation 8 Face Prism: |
Lens: High Precision Glass Optical Lens |
| Packing Dimension: 535*400*410mm: |
Net Gross Weight: 16.5/17.5kg |
| Light Source: |
LED |
| Material: |
Aluminum Alloy |
| Emitting Color: |
Changeable |
| Control Channel: |
16CH |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Voltage: |
220V |
Product Description

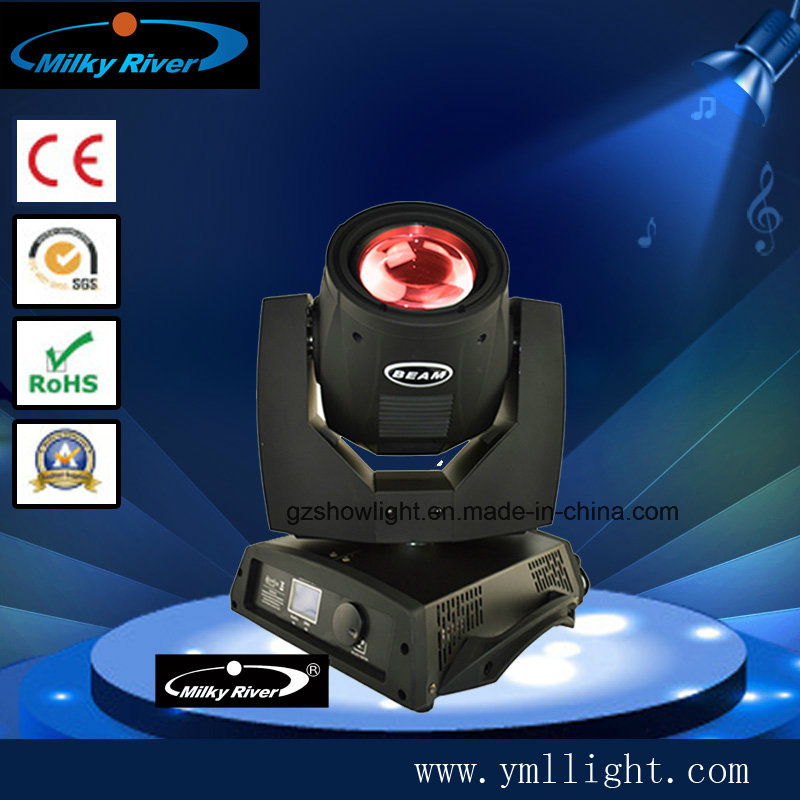

Professional 7r moving head sharpy beam 230Technical Parameter
Power: AC 110-240v, 50/60Hz
Lamp: Philips 5R200W/7R230W or YODN5R
Power consumption: 230w/260W 50HZ 350VA
Optics: 3 lens group, the zoom 0°-3.9°electronic focusing;
20 meters 50000LUX
Channel Mode: 16CH/20
Horizontal scan: 540°(16bit precision scanning)
Vertical scan: 280°(16bit preision scanning)
Color wheel: 14 colors+white, with bi-directional rotation of the rainbow
Effect
Pattern plate: 17 gobos+white
Prism plate: 8 prism, can reverse the direction of rotation, and a prism
Positioning
Strobe: double guillotine strobe the highest frequency can be 13 times per
Second , and can select a random strobe and pulse strobe
Dimming: 0% to 100% linear dimmer
Atomization: 0% to 100% linear atomized liquid crystal display
ch mode | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 16/20 | color wheel | stop/strobe | Dimmer | Static Gobo Change | Prism Insertion | Prism Rotation | Effects Movement | Frost | Focus |
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
| Pan | Pan Fine | Tilt | Tilt Fine | Function (unused) | Reset | Lamp control | Pan-Tilt Time | Color Time | Dimmer Prism Frost Time |
| 20 | Lamp | Lamp |
| Gobo Time | 200w 5R | Osram 230w 7R |
