Product Specifications
| Prod Model: |
MT-L1390S |
| Model: |

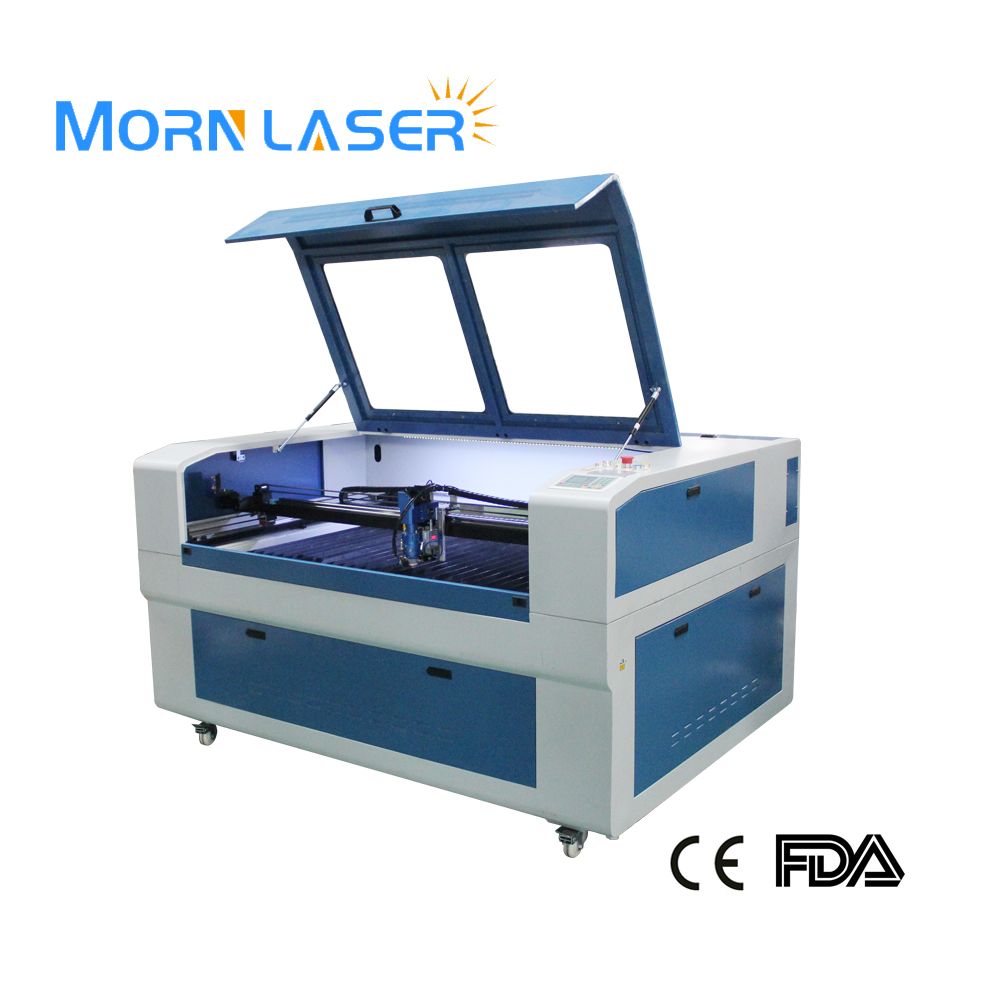

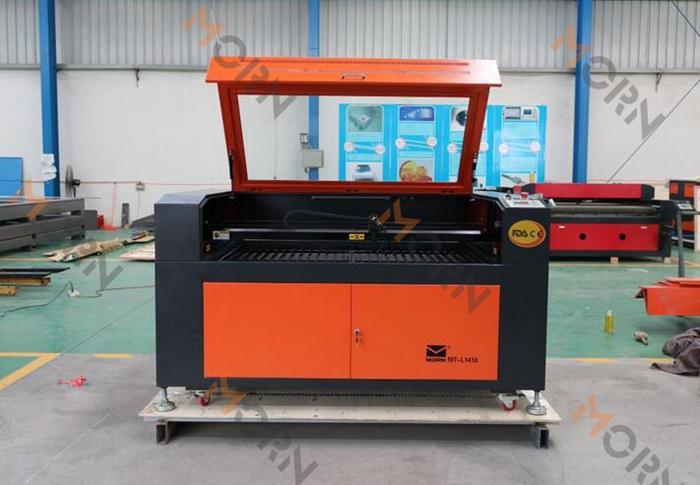

Laser Cutting Machine |
| Working Area: |
1400*1000mm |
| Working Table: |
Honey Comb/ up and Down/ Knife (Optional) |
| Laser Power: |
60W/80W/100W/130W(Optional) |
| Drive System: |
Leadshine Driving System and Stepper Motor |
| Control System: |
DSP |
| Cutting Speed: |
150mm/S |
| Guide Rail: |
Hiwin From Taiwan |
| Power Supply: |
AC220±10% 50 Hz / AC110±10% 50 Hz |
| Control Software: |
Coreldraw, Photoshop, Autocad, etc |
Product Description
Product DescriptionTombstone Laser Engraving Machine
Description:

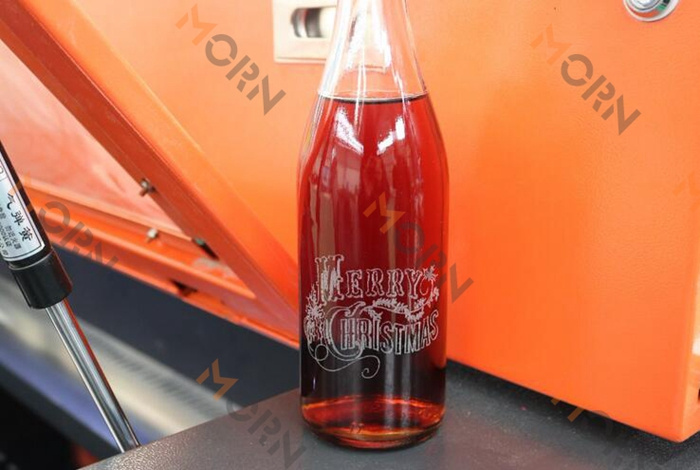

Laser Cutting Machine are many materials can be engraved, such as wood block, bamboo product, acrylic sheet, glass, pvc sheet, double-color sheet, ceramic tile, rubber, plastic, marble, bowlder, crystal, leather and cloth. Etc. Nonferrous materials.
Good Features:
1.64-bit processor: It adopts the internationally advanced 64 digits, high speed DSP for control system of the GS laser engraving machine. The processing Capability and stability is highly improved.
2. Optimization of Arc: Stable S-style speed control software, quick and stable motion, which go very well with the automatic laser compensation, all these help the machine do a good job when cutting different parts, like straight lines, angles.
3. USB Interface: It supports the USB interface, with the GS series laser engraving machine, it's not necessary to connect to the computer, in this case, it not only enjoys high anti-interference, but also you can use only one computer to control many laser engraving machines.
4. Storage function: The mainboard has EMS Memory which enables the user to store more than 100 files.
5. Automatic Protection: There's automatic smoke/dust-ejecting system, water cooling system, if there's no water or the water flows in opposite direction, there'll be no laser, which protects the laser tube in an effective way.
Application
Applicable materials: non-metal materials such as plywood double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry: billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
The advantage of our company
1.Our products are widely used in almost all the materials.
2.Our Company is specialized in CNCrouter and laser machine manufacturing and selling. There is no middle man and no agent, so the price is moderate.
3.Our machine with high precision and high reputation is the most reliable goods that you can choose.
4.Our company has all kinds machines in store, the delivery time is much shorter than other companies.
5.Our Company has international tech service office and provides 24 hours online service to help customers.
After sale service
1.One year guarantee
3.24-hour technical support by email or calling
4.English CD and manual for machine using and maintainance.
