Product Specifications
| Prod Model: |
MT-L1390S |
| Keywords: |
Laser Cutting Machine for Steel |
| Working Area: |
1300X900mm |
| Working Table: |
Honey Comb/ up and Down/ Knife (Optional) |
| Laser Power: |
60W/80W/100W/130W(Optional) |
| Drive System: |
Leadshine Driving System and Stepper Motor |
| Control System: |
Rd Work |
| Guide Rail: |
Taiwan Hiwin Linear Guide |
| Power Supply: |
220V, Single Phase, 50-60Hz |
| Control Software: |
Coreldraw, Photoshop, Autocad |
| Front-Back Door: |
Longer Materials Processing |
Product Description

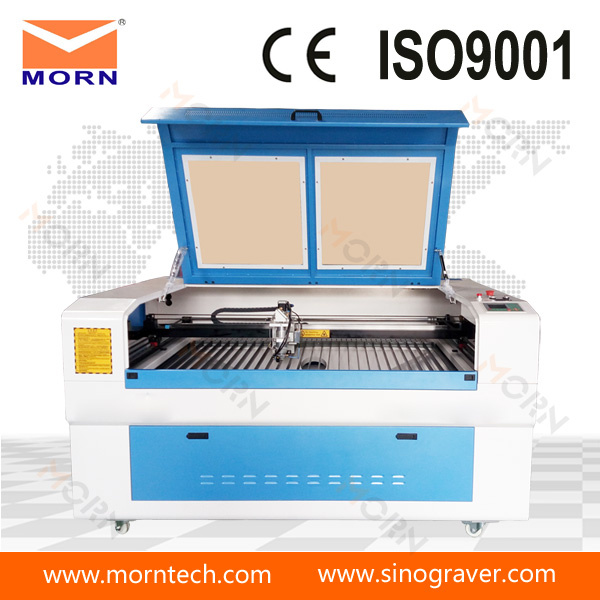

Laser Cutting Machine for Steel,1.5mm Stainless Steel
1 .Features:
1) Double Laser heads: Multi-function Mix Laser with dual heads - 1 metal head is mainly for cutting metal materials(Stainless steel, Carbon steel), 1 normal head is used for cutting and engraving non-metal materails(Acrylic, Wood, Leather, etc).
2) RECI laser tube: More stable laser beam and long life time of laser tube is about 8000-10000 hours under the good environment, could provide stable laser.
3) Blade platform: After our special handle with high durable, won't be rusted or deformed even after many years, generally used for cutting hard materials, such as Acrylic, Wood, MDF, Plywood, Die board, etc.
4)Double inlet and outlet Chiller: Can control the temperature automatically. It will alarm if there is a shortage of water thus ensure the continuous work of the laser tube, could cooling 2 pcs laser tube at same time.
5)Transmission system: Taiwan HIWIN guide rail and FULONG brand high toughness belt with very long service life and highest precision.
6)Driver system: Lead shine brand high subdivision stepper motor, make sure the speed and precision work.
7) Control system: RD control panel/DSP with off-computer control system / USB interface.
8)WIFI receiver: could operate the machine directly.
2.Parameters:
| Machine type | MT-L1390 |
| Working area | 1300*900mm |
| Laser tube type | Metal laser tube |
| Control System | colored RD control system |
| Cooling type | CW5000 water chiller |
| Laser Power | 100W |
| Lens | Singapore focus and reflection lens |
| Guide rail | Taiwan HIWIN linear rail guide |
| Resolution ratio | 4500dpi |
| Least moulding character | 1.0X1.0MM english |
| Max work speed | 600mm/s |
| Function | Cut and Engrave |
| Front and rear delivery function | Have |
| Weight | 430kg/500kg ( net/gross ) |
| Package | Plywood case |
3. Application:
Metal materail: This machine can cut carbon steel, stainless steel, According to different metal materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.
Non-metal materails :Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.
4.Our Service:
Pre-sale service:
1)Free sample making:
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
2)Progressing Solution Design:
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
After-sale service:
1) Warranty
Three years warranty for machine, two years for domestic source (three year for IPG source)
2)Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3)Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)
4)Tranining service
Offer training at our factory for free (you could visit us and learn)
