Hm3030 Sf6 Gas Density Relay Calibrator
| Price: |
US $ 2180-4180/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
HM3030 |
| Measuring Range: |
0 ~-1MPa |
| Pressure Display Resolution: |
0.001 MPa |
| Operation Temeperature: |
-20ºC to 85ºC |
| Storage Data: |
100 Groups |
| Communication Interface: |
RS-232 |
| Accessories Size: |
430*310*160mm |
| Type: |
Strength Testing Machine |
| Power Source: |
AC220V |
| Accuracy Grade: |
0.2 |
| Display: |
LCD |
| Weight: |
3kg |
Product Description
Overview

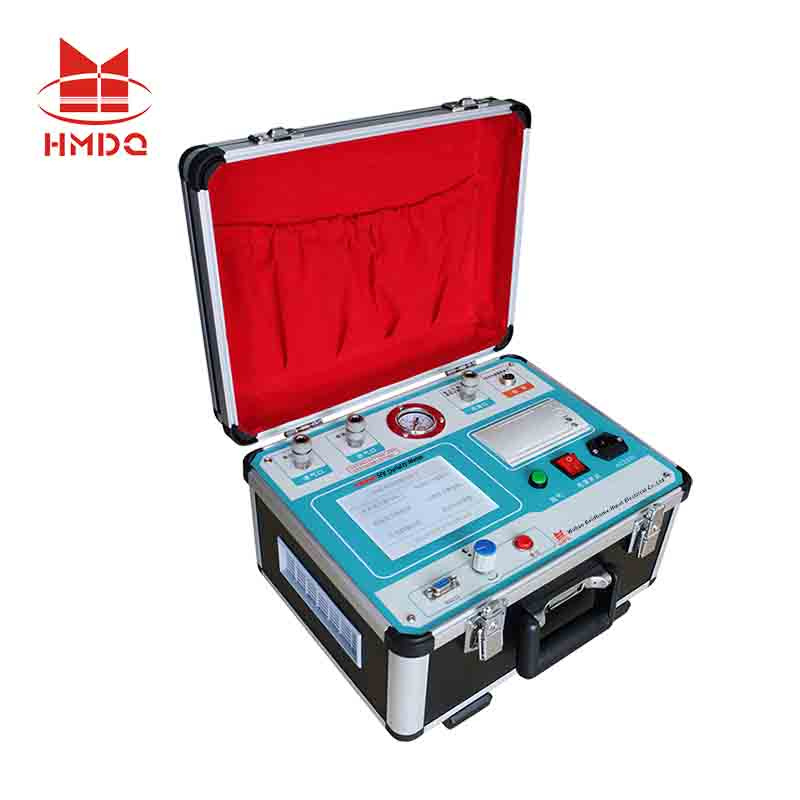

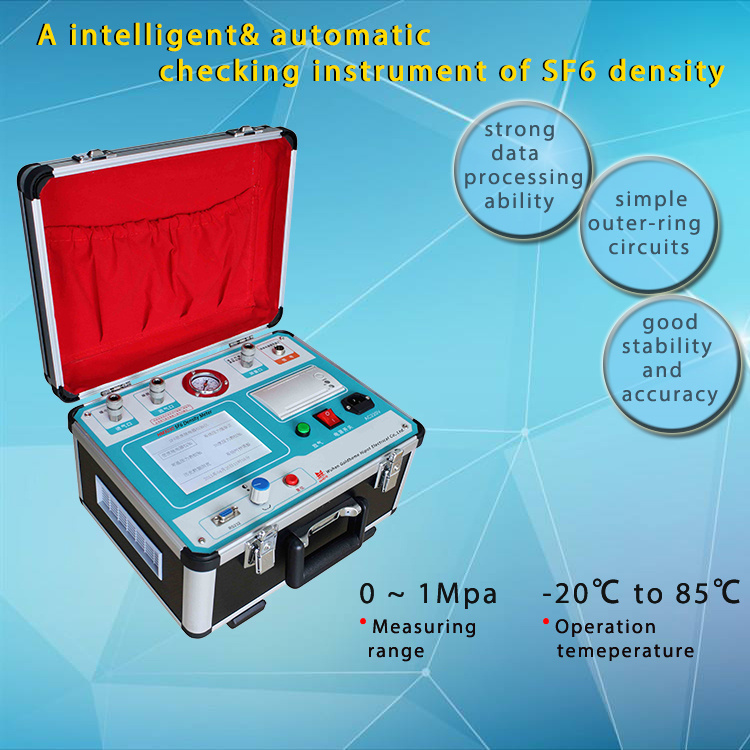

HM3030 SF6 density meter, this is a kind of intelligent& automatic checking instrument of SF6 density. The instrument adopts the single cycle instruction of microcomputer technology, which the operating speed is 10 times ordinary singlechip. It can be calibrated at field to check SF6 density circuit breaker ofpointer contact output and intelligent current output, it uses interrupt mode to capture circuit breaker density at real-time. The instrument has the characters of SF6 standard conversion under any ressure environment,portable,auto calibration of SF6 density and pressure.
In a closed container, SF6 gas pressure under certain temperaturecan represent SF6 gas density. itis usually used as SF6 gas pressure standard value at 20ºC. Under different environment temperature, measured pressure values are to be converted into its corresponding to value at 20ºC, it can be used to judge the performance of SF6 density circuit breaker.
The meter's measurement isautomatically finished, so it is convenient and simple.
Advantage
1.The meteradops analog digital mixed single cycle high speed microcontroller technology, it has rich and powerful resources,strong data processing ability, it has the characters of simple outer-ring circuits,good stability and accuracy because it built in A/D, D/A, reference voltage, analog amplifier integrated.
2.The instrument can automatically check pointer type and electronic type
density circuit breaker.
3.Density relay 1 ~ 3 group contacts of the initial state is arbitrary form (closed or open always), it can simultaneously measure response value and recovery value of 1 ~ 3 group contacts , so the instrument can auto measureall kinds of circuit breaker.
4.320*240 large screen liquid crystal display, simple and convenient to use.
5.It shows the current pressure, corresponding pressure and environment temperature at 20ºC,to solve the problem of SF6 density relay on-site check.
6.Auto test process, to aviod operation by mistake.
7. 100 groups measured datas storage, every measurementcan be traced.
8. RS-232 interface data upload PC , automatic generation test data form.
9.Normal temeprature pressure and density under any environment temperature can be calibrated.
10.Advantage quick joints, convenient connection and small leakage.11.Built in clock, which can be corrected at any time.12.Self checking function. Calibration can be corrected after using, to ensure calibration precision.13.High precision pressure sensor and advanced magnetic fluid technology.
14.Built-in high capacitybattery,LCD displayquantity of electricity, convenient on-site check.
Main Technical parameter
1.Measuring accuracy: 0.20class
2.Display: LCD
3.Measuring range: 0 ~ 1Mpa
4.Pressure display resolution: 0.001 Mpa
5.Operation temeperature: -20ºC to 85ºC
6.Storage data: 100 groups
7. Communication interface: RS-232
8.Printer (optional)
9. Power supply: AC220V + 10% 50Hz,
built-in power:DC8.5V
10.Weight: 3kg (host)
11.Size: 360*240 *110 mm(host)
430*310*160mm (accessaries)
Accessaries
| Host | 1 |
| Transition joint | 1 |
| Small bottle | 1 |
| Speical gas tube | 3 |
| Signal cable | 1 |
| Power supply cable | 1 |
| Fuse | 2 |
| Print paper | 1 |
| Ptfe tape | 2 |
| Manual | 1 |
| Calibration | 1 |
The factory is one of the earliest enterprises to develop, design and manufacture high-voltage transmission and test equipment in China. The company closely cooperate with experts and professors from the State Grid Electric Power Research Institute, Wuhan University and other scientific research units, the company now become a joint institution of scientific research, development, production making, sales and installation.
He factory is located in Wuhan Huading Industrial Park, (Economic and Technological Development Zone Hubei), it covers area of more than 4000 square meters, the main products include: Series resonance test device, GIS PD test system, AC/DC high-voltage test transformer, Strong Current generator, three frequency power generator, Multi frequency induction voltage test device, Insulation withstand voltage test device and other testing instruments. Products are mainly used in Power Supply department, Power plant, Power construction, Railways, Petroleum, Chemical, Metallurgy, Coal and other sectors.
The Superior products in factory: Series Resonance Frequency test device, GIS PD test system, her annual sales exceeded 200 sets, the Resonance test set and PD test system can meet the internation leading level. The factor has continued to develop overseas markets in recent years, , and some of its best products have been exported to Europe, America, Southeast Asia and other countries, which are well received by customers.
The factory has always put quality as the lifeline, product quality, working quality and service quality are in strict accordance with the ISO9001: 2008 management system.
The factory will as always adhere to Truth-seeking, Truth-seeking, Refinement, Innovation, adhere to technology as an advantage, quality assurance, integrity to win market, innovation and development. Dedicated to power sector, large factories and mines, electrical testing workers to provide first-class products, first-class service.
The factory aim: Leading Technology, Quality First, honesty, win-win cooperation!
