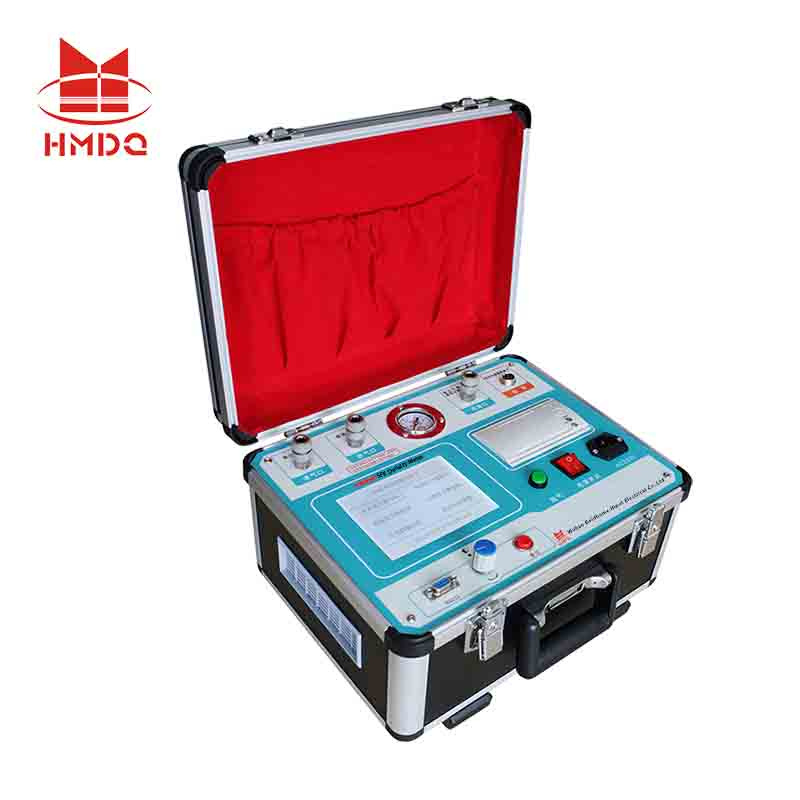

Hm3030 Highest Accuracy Sf6 Gas Density Relay Calibrator
| Price: |
US $ 2180-4180/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
HM3030 |
| .Measuring Range: |
0-1MPa |
| Pressure Display Resolution: |
0.001 MPa |
| Communication Interface: |
RS-232 |
| Accessories: |
430*310*160mm |
| Type: |
Universal Testing Machine |
| Power Source: |
AC220V |
| Accuracy Grade: |
0.2 |
| Display: |
LCD |
| Weight: |
3kg |
Product Description

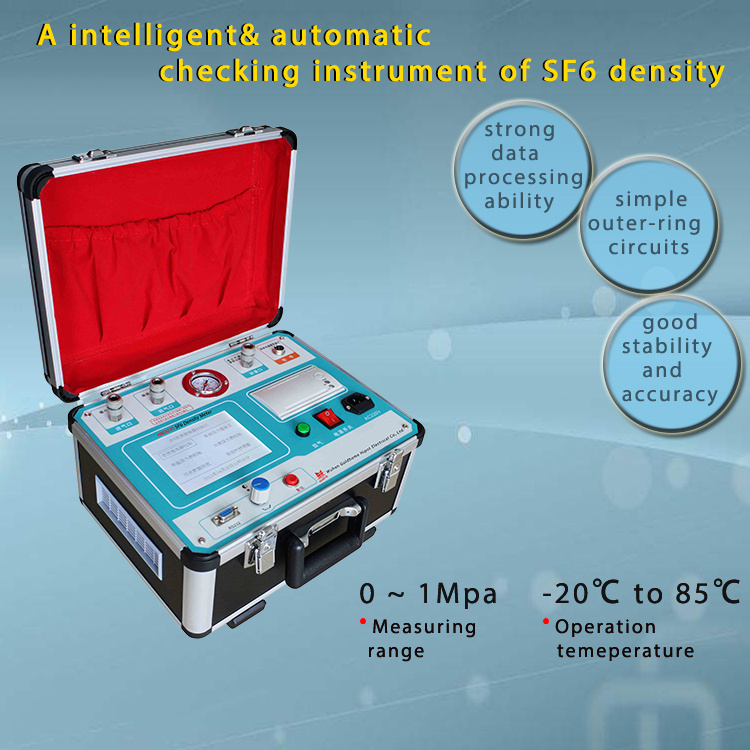

Advantage1.The meter adopt analog digital mixed single cycle high speed microcontroller technology, it has rich and powerful resources, strong data processing ability, it has the characters of simple outer-ring circuits, good stability and accuracy because it built in A/D, D/A, reference voltage, analog amplifier integrated.
2.The instrument can automatically check pointer type and electronic type
density circuit breaker./
3.Density relay 1 ~ 3 group contacts of the initial state is arbitrary form (closed or open always), it can simultaneously measure response value and recovery value of 1 ~ 3 group contacts , so the instrument can auto measure all kinds of circuit breaker.
4.320*240 large screen liquid crystal display, simple and convenient to use.
5.It shows the current pressure, corresponding pressure and environment temperature at 20ºC,to solve the problem of SF6 density relay on-site check. 6.Auto test process, to avoid operation by mistake.
7. 100 groups measured dates storage, every measurement can be traced.
8. RS-232 interface data upload PC , automatic generation test data form.
9.Normal temperature pressure and density under any environment temperature can be calibrated. 10.Advantage quick joints, convenient connection and small leakage.
11.Built in clock, which can be corrected at any time.
12.Self checking function. Calibration can be corrected after using, to ensure calibration precision.
13.High precision pressure sensor and advanced magnetic fluid technology.
14.Built-in high capacity battery, LCD display quantity of electricity, convenient on-site check.
Main Technical parameter 1.Measuring accuracy: 0.20class
2.Display: LCD
3.Measuring range: 0 ~ 1Mpa
4.Pressure display resolution: 0.001 Mpa
5.Operation temperature: -20ºC to 85ºC
6.Storage data: 100 groups
7. Communication interface: RS-232
8.Printer (optional)
9. Power supply: AC220V + 10% 50Hz,
built-in power:DC8.5V
10.Weight: 3kg (host)
11.Size: 360*240 *110 mm(host)
430*310*160mm (accessaries)Accessaries| Host | 1 |
| Transition joint | 1 |
| Small bottle | 1 |
| Speical gas tube | 3 |
| Signal cable | 1 |
| Power supply cable | 1 |
| Fuse | 2 |
| Print paper | 1 |
| Ptfe tape | 2 |
| Manual | 1 |
| Calibration | 1 |
