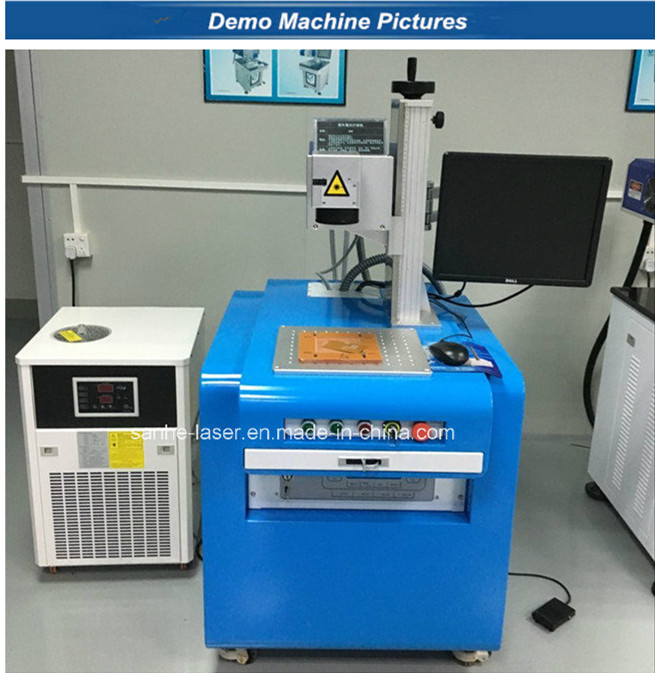

High Speed UV Laser Marking CNC Machine
| Price: |
US $ 9900-17000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
3HE-UV3W/5W/8W |
| Beam Quality: |
M2<1.2 |
| Machine Power: |
1kw |
| Min.Line Width: |
0.06mm |
| Repetition Accuracy: |
+(-)0.003mm |
| Power Demand: |
220V/50Hz |
| Marking Speed: |
250mm/S |
| Repeat Frequency: |
<(=)30kHz |
| Certification: |
Ce, ISO 9001 |
Product Description
Technical parameters:| Machine model | 3HE-UV3W/5W | 3HE-UV8W |
| Laser wavelength | 355nm |
| Pulse repetition rate | 20-100KHz | 15-100KHz |
| Pulse width | <20ns@30KHz | <25ns@10KHz |
| Average power(W) | 2.0-3.0@30KHz | 4.0-5.0@40KHz | 7.0-8.0@50KHz |
| Average power stability | <±2% over 8 hours |
| Pulse-to pulse instability | <3%rms |
| Spatial mode | TEM00(M2<1.3) |
| Beam divergence | <2mrad(full angle) |
| Beam diameter | 0.6±0.1mm |
| Beam roundness | >90% |
| Pointing stability | <50urad |
| Polarization direction | Horizontal |
| Polarization ratio | 100:1 |
| Cooling method | Air-cooling | Water-cooling |
| Ambient temperature(°C) | 15-30 |
| Storage temperature(°C) | -10-50 |
| Relative humidity | 10%-80%(non-condensing) |
| Warm-up time(mins) | <10 |
| Operating voltage | 90V-260V |
Product application:Flying laser engraving machine is widely used in metal molds, the processing crafts , medical drugs , a single product Pipeline operations .
This kind of machine widely used in mobile phone shells , rings , bracelets , watches , mugs , glasses , watches , key , instrumentation , sanitary ware , home appliances , electronic components , integrated circuits , the cell phone button , luggage buckles , cutlery , water faucet , stainless steel products , car accessories , call phone chargers , cables and wires , and medical device industries .Product features:1.Flying laser marking machine with air-cooled , easy installation , no supplies , easy to operate and flexible .
2.With pipeline design , marking the feed more reasonable , more scientific and more convenient , higher reliability of laser , with strong continues working ability
3.Portable laser engraving machine : compact structure , small size , easy to carry , only 30-50kg .
4 .All air-cooled , no consumables , maintenance-free and low cost .
5.This series machine use the most advanced software and hardware , with high engraving speed , high precision , can stability for long time working
Dongguan Sanhe Laser Technology Limited Company is a professional manufacturer of laser equipment and the modernization of production and application of high-tech enterprises. In this eight years, Outstanding Sanhe team has been committed to the study and practice of light conversion, take lifting laser value as our business goals, take promoting Chinese national laser industry to the international for our glorious mission. We believe that if you want to succeed, you must professional, and professional derived from the practical, and pragmatic is responsible. We insist on professional skills and pragmatic approach to service each customer.
We are ISO international quality system performer. It is also the European CE mechanical testing and certification practice. With advanced technology and excellent quality to open up more and more market at home and abroad constantly. Our devices have been sold in South Korea, Thailand, Germany, the United States, Japan, Malaysia, Vietnam, the Philippines, India, Pakistan, Indonesia, Canada and other countries.
Sanhe Laser has a young, professional, innovative and passionate team for research and development and production. They witnessed the birth and beyond of every new technology. We maintain a long-term and stable cooperation relationship with Beijing Institute of Opto-electronic, Anhui Machine Institute, Huazhong University of Science, Dongguan University of Technology and other well-know Institute and Universities. For our products innovation to provide a solid technical support and security.
Our annual production capacity up to 1000 sets, include laser welding, marking cutting three series nearly hundred model products. Equipment is widely used in hardware, electronic, sapphire, medical care, jewelry, automotive, communications, printing, plastic products and more than 200 industry sectors. Some of the equipment allows for automated flow, and with other equipment to achieve prefect docking.
Sanhe Laser has branch or offices in Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.
We have a dream in heart to ignite hope of success on the road; We holds professional to create a new direction of the laser industry; We stick together to accumulate strength for the new brand; Sanhe Laser has been leading the line to soar.
