30W CO2 Laser Marking Machine Engraving Qr Code /Wood/ Plastic/Glass Sale

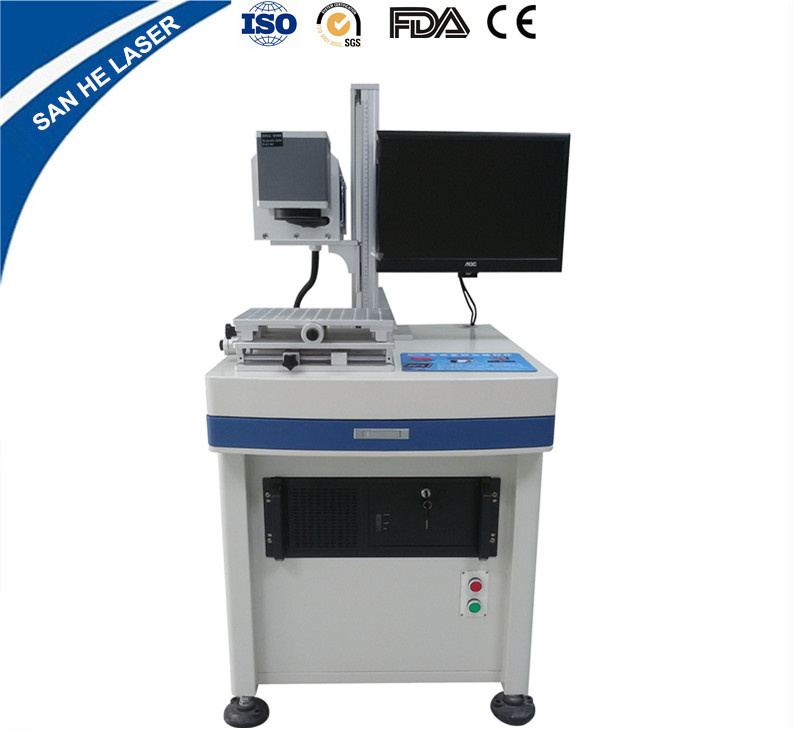

Name: 30W CO2 Laser Marking Machine Engraving Qr Code /Wood/ Plastic/Glass Sale
Brand: china-crystals.com
SKU: 774465905
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 5888-7930/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	3HE-CO2-30W/50W/100W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Model:	3he-CO2/30W
Beam Quality:	M2<1.2
Repetition Accuracy:	+(-)0.003mm
Machine Power:	1kw
Power Demand:	220V/50Hz
Cooling Way:	Air-Cooling
Marking Speed:	250mm/S
Certification:	CE, ISO 9001
Repeat Frequency:	<(=)30kHz
Min.Line Width:	0.06mm

Product Description

Technical parameters

Machine model	3HE-CO2-30W	3HE-CO2-50W
Laser max. power	30W	50W
Laser wavelength	10.6um	10.6um
Beam quality	m²<1.2	m²<1.2
Repeat frequency	≤30KHz	≤30KHz
Marking range	300mm*300mm	≤300mm*300mm
Marking speed	250mm/s	300mm/s
Min. Line width	0.06mm	0.06mm
Repetition accuracy	±0.003mm	±0.003mm
Machine power	1KW	2KW
Power demand	220V / 50Hz	220V / 50Hz

Product Application :

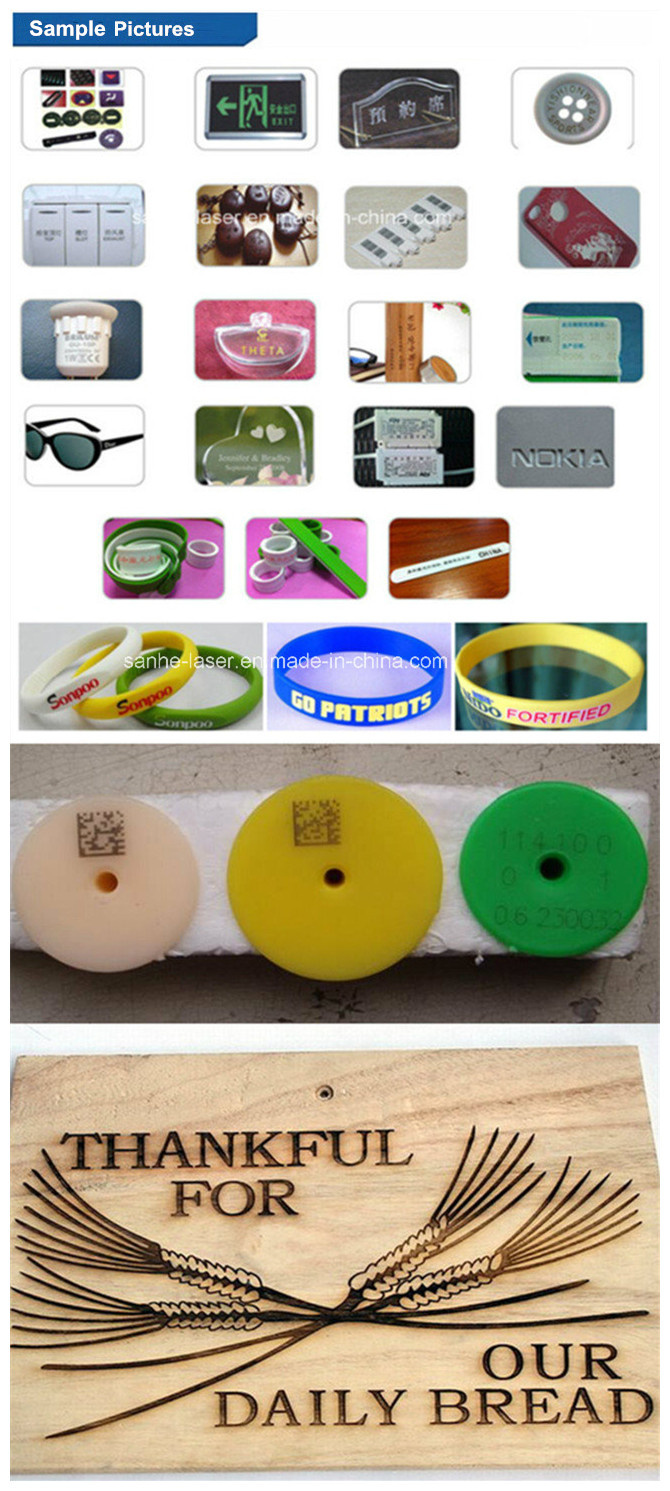

CO2 laser marking machine can engraving many kinds of non-metal materials , widely used in art and gifts , furniture ,leather clothing , advertising signs , model marking , packaging of food and drugs , glasses , buttons , Crystal , paper , glass , ceramics , wood products , jade , packaging and printing , embroidery shoes , product ID ,serial number .
Product Features :
1.Stable performance capable of working for long with the service life up to 20000 hours .
2.Supporting PLT , PCX ,DXF , BMP and other files capable of directly using shx ,ttf fonts.
3.Supporting the marking of automatic codes , serial number , lot number , dates , barcodes and 2D codes , and software functions as graphic counter marking , and equipped with light curtain devices , hence safer in application.

PAYMENT
1. The TT, Western Union, LC, Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 7-15 days to send out the machine. We will notice you if there is the special circumstance.

DELIVERY TIME
1. We can send out the machine within 7-15days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.

WARRANTY
1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours.

FAQ
Q1.What's your MOQ?
A:We don't have MOQ,No matter 1set order or 100sets order, we will wholeheartedly serve you.

Q2.Are you factory or trading company?
A:We are factory with 8 years experience has branch or offices in Thailand,Vietnam,Malaysia,Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.

Q3.Where is your facotry located in? How can I visit there?
A: Our factory is located in 3/F, Building B, Lianyi Industrial Park, Wentang Middle Road, Dongcheng District, Dongguan, Guangdong, China.We can pick you up from Shenzhen airport to our factory,You are warmly welcome to visit us!!!

Q4.How does your factory do regarding quality control?

A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the end.
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
and we have CE, ISO9001,SGS certification.

Q5.What is the delivery time?

A:We have standard models in stock,will delivery within 5-7 working days.

For un-standard models, we will delivery within 10-15 working days.

Contract Person:Miss Carol
Phone number:+86 18924354299

Dongguan Sanhe Laser Technology Limited Company is a professional manufacturer of laser equipment and the modernization of production and application of high-tech enterprises. In this eight years, Outstanding Sanhe team has been committed to the study and practice of light conversion, take lifting laser value as our business goals, take promoting Chinese national laser industry to the international for our glorious mission. We believe that if you want to succeed, you must professional, and professional derived from the practical, and pragmatic is responsible. We insist on professional skills and pragmatic approach to service each customer.

We are ISO international quality system performer. It is also the European CE mechanical testing and certification practice. With advanced technology and excellent quality to open up more and more market at home and abroad constantly. Our devices have been sold in South Korea, Thailand, Germany, the United States, Japan, Malaysia, Vietnam, the Philippines, India, Pakistan, Indonesia, Canada and other countries.

Sanhe Laser has a young, professional, innovative and passionate team for research and development and production. They witnessed the birth and beyond of every new technology. We maintain a long-term and stable cooperation relationship with Beijing Institute of Opto-electronic, Anhui Machine Institute, Huazhong University of Science, Dongguan University of Technology and other well-know Institute and Universities. For our products innovation to provide a solid technical support and security.

Our annual production capacity up to 1000 sets, include laser welding, marking cutting three series nearly hundred model products. Equipment is widely used in hardware, electronic, sapphire, medical care, jewelry, automotive, communications, printing, plastic products and more than 200 industry sectors. Some of the equipment allows for automated flow, and with other equipment to achieve prefect docking.

Sanhe Laser has branch or offices in Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.

We have a dream in heart to ignite hope of success on the road; We holds professional to create a new direction of the laser industry; We stick together to accumulate strength for the new brand; Sanhe Laser has been leading the line to soar.
